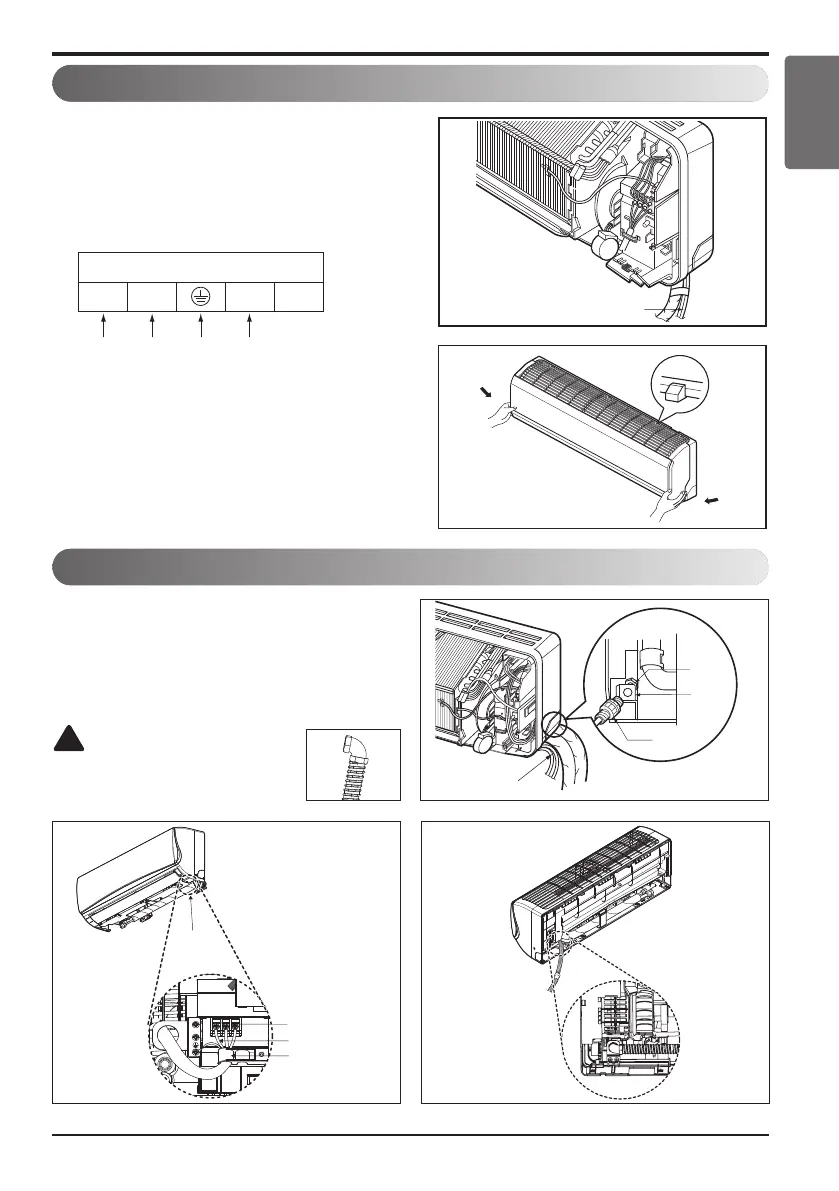

Installation Manual 19

Installation

ENGLISH

1. Connect the wires to the terminals on the

control board individually according to the

outdoor unit connection.

• Ensure that the color of the wires of outdoor

unit and the terminal No. are the same as

those of indoor unit respectively.

2. Attach the Grille onto the cabinet.

• Grasp the lower left and right side of the

Grille and engage four tabs on the top inside

edge of the chassis.

• Press the Grille toward the chassis until it

goes back into place.

Connecting cable

Conduit connection

1. Set the connecting cable into the terminal

block of indoor unit, and tighten set screw to

lock the conduit bracket to the indoor unit.

2. Join the conduit and the conduit bracket

together.

Connecting cable

Lock nut

Conduit

bracket

Terminal Block in Indoor

1(L1) 2(L2) 3 4

Connected to Outdoor Unit

View

Terminal block

Connecting cable

Cable retainer

CAUTION

Must use the elbow type

(L-Type) conduit.

Wiring Connection
