Function
ENGLISH
It is useful to check the cycle data without LGMV.
Operating Method
Whenever you push the Tact Switch, the cycle information will be shown as below.
h After 1 page is displayed, subsequently 2 page is displayed.
Tact S/W
Item
Display
18/24/60 k Example 1 page 2 page
1 time Low Pressure 890 kpa ‘LP’ ’ 89’
2 time Hi Pressure 2 900 kpa ‘HP’ ‘290’
3 time Discharge Temp. 85 °C ‘DS’ ’ 85’
4 time Cond Out Temp. -10 °C ‘CS’ ‘-10’
5 time Suction Temp. -10 °C ‘SS’ ‘-10’
6 time ODU Air Temp. -10 °C ‘AS’ ‘-10’
7 time Current 15 A ‘A’ ‘ 15’
8 time Voltage 230 V ‘V’ ‘230’
9 time Comp Hz 100 Hz ‘F’ ‘100’
10 time DC Link Voltage 230 V ‘dc’ ‘230’

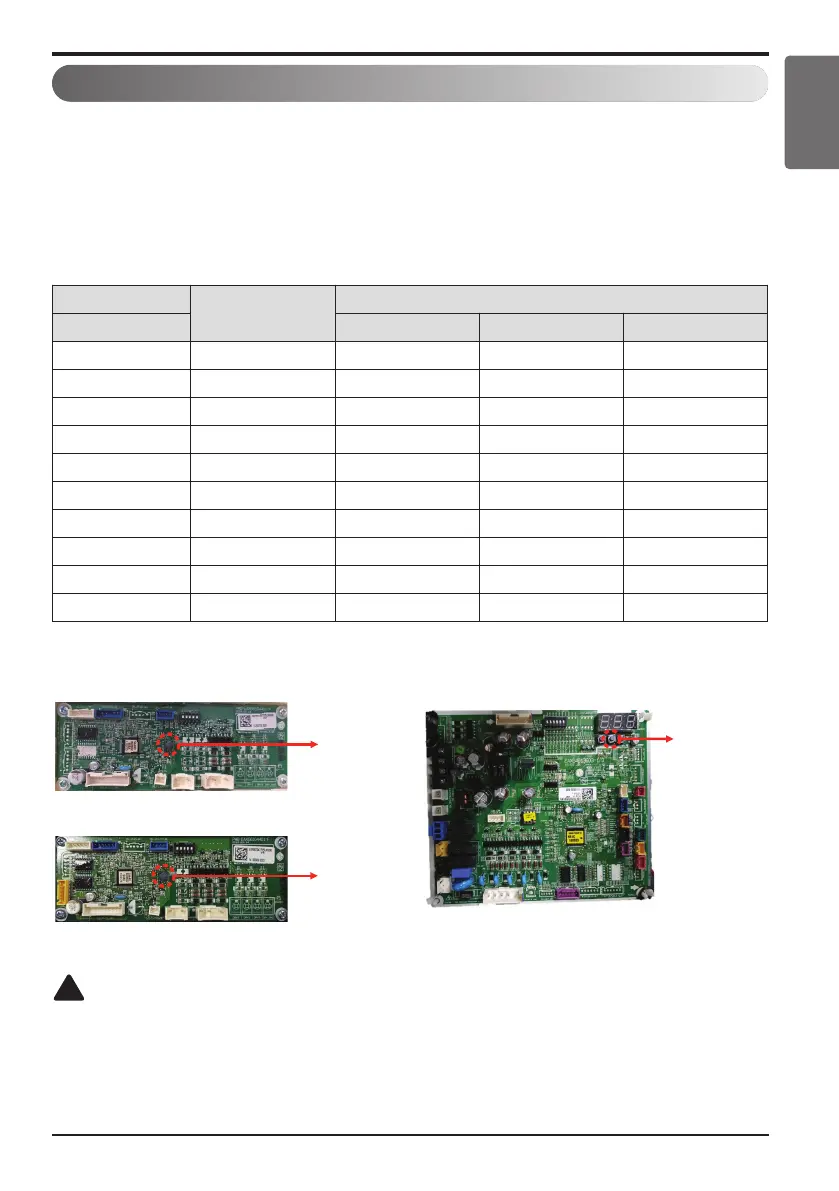

PCB Display(18/24/60 k Model Only)
WARNING
When you push the Tact Switch, use the material non-conducting electricity.
!
Only 60 k18 k
24 k
To Next Page
