Installation Manual 33

Flaring Work and Connection of Piping

ENGLISH

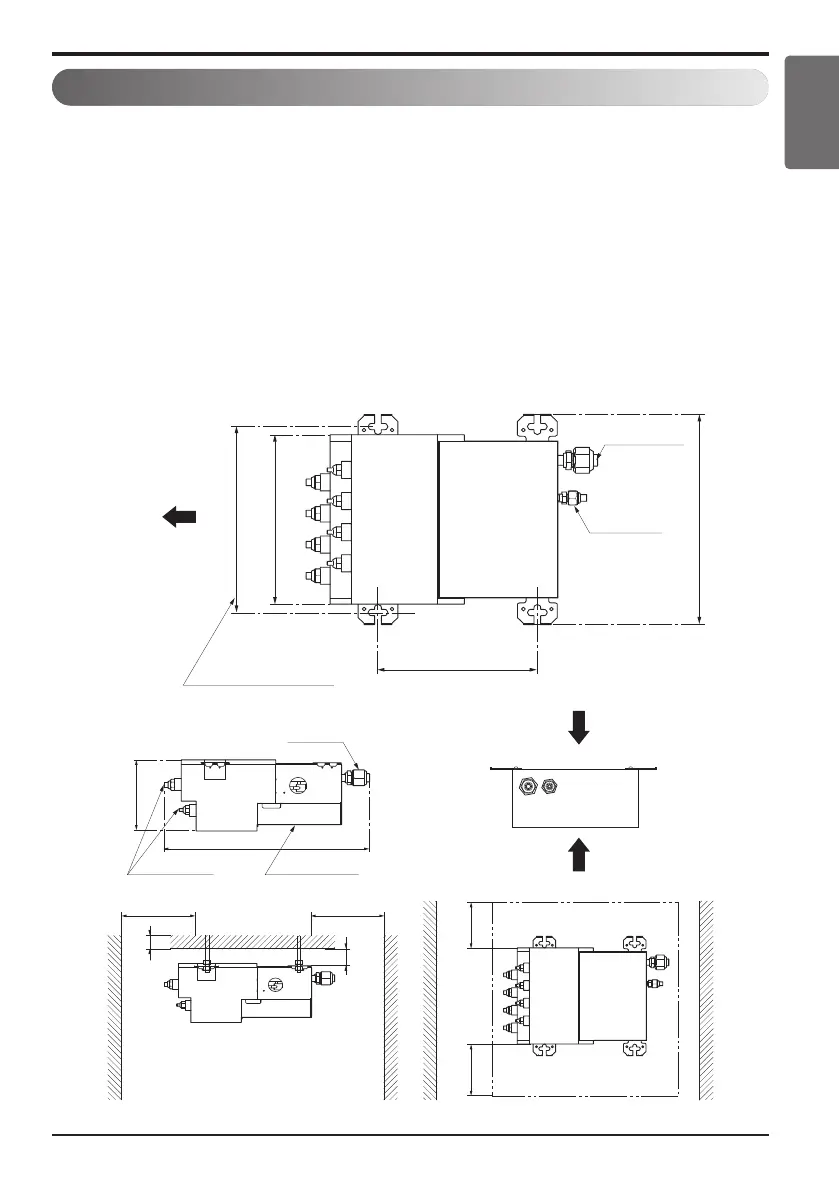

• This unit may be installed suspended from the ceiling or mounted on the wall.

• This unit may be installed horizontally , as shown in the diagram below.(Side B is facing up)

However, it may be freely installed in any direction forward or back, and to the sides.

• Be sure to leave a 600 mm square opening for service and inspection as shown in the diagram

below, for both ceiling - suspended installation and wall-mounted installation.

• This unit "does not require drain treatment" as it uses internal foam treatment as low-pressure

piping insulation.

• Service direction is the side B and C

• The piping for the indoor unit may be led around in direction A

• The inclination of side B must be within ±5 degrees forward or back or to the sides.

Min 400(15 3/4)

Min 30(1 3/16)

Min 100(3 15/16)

Min 400(15 3/4)

Branch Pipe

432(17)

160(6 5/16)

Cover Control

Main Pipe

(Servicing space)

Inspection opening

Min 300(11 13/16)

298(11 23/32)

250(9 27/32)

Ø 19.05(3/4)

Ø 9.52(3/8)

Suspension bolt pitch.

245(9 21/32)

337(13 9/32)

Unit : mm(inch)
