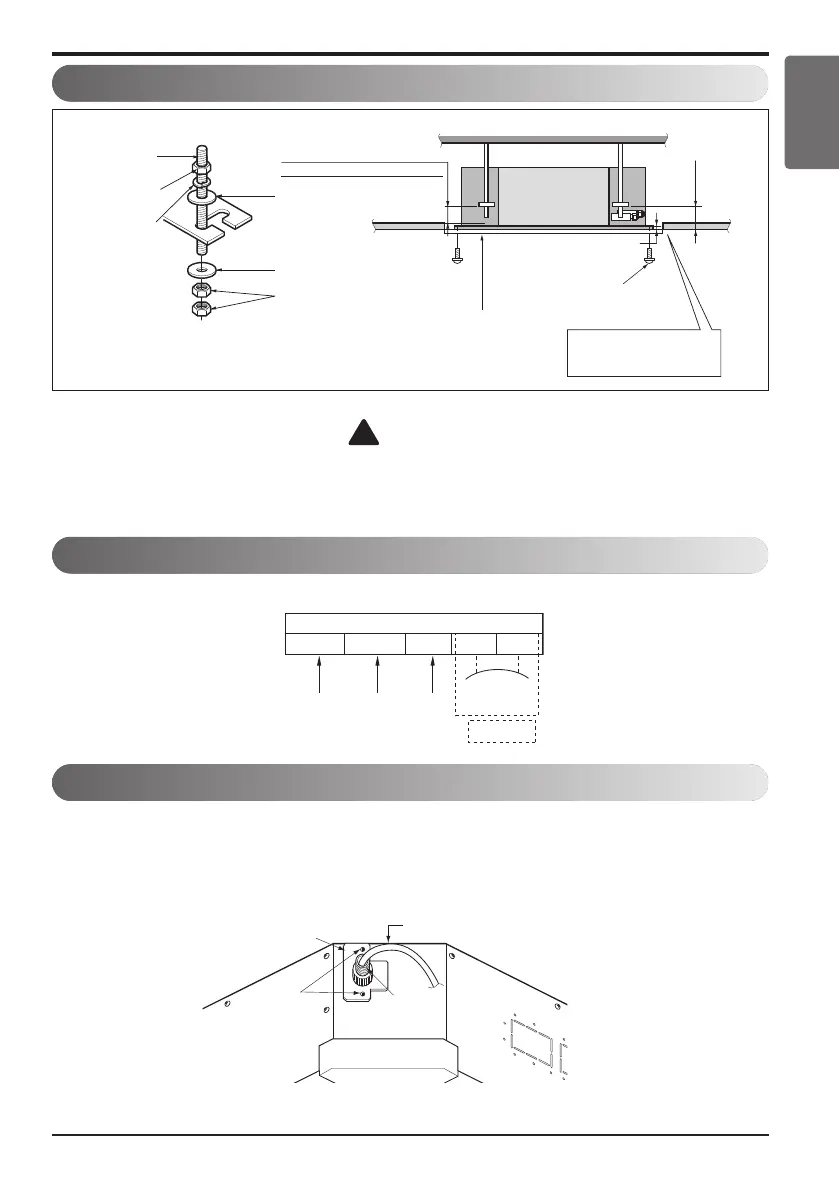

Installation Manual 21
Installation
ENGLISH
Set screw of
paper model (4 pieces)
Paper model
for installation
Ceiling board
150 mm
(5-7/8 inch)
Ceiling board
Ceiling
Flat washer for M10
(accessory)
Keep the length of the bolt
from the bracket to 40 mm(1-9/16 inch)
Open the ceiling board
along the outer edge of the
paper model
Flat washer for M10
(accessory)
Hanging bolt
(W3/8 or M10)
Nut
(W3/8 or M10)
Nut
(W3/8 or M10)
Spring washer
(M10)
Keep the length of 31~34 mm(1.22~1.34 inch)
between the air conditioner bottom surface
and the ceiling surface
Air Conditioner body
Air Conditioner body
• The following parts are local purchasing.
① Hanging Bolt - W 3/8 or M10
② Nut - W 3/8 or M10
③ Spring Washer - M10
④ Plate Washer - M10
CAUTION
Tighten the nut and bolt to prevent unit
from falling off.
!
1(L1) 2(L2) 3 4 5
Terminal Block of Indoor Unit
Connected to outdoor unit
OPTION
TO AIR
FRESH
KIT
TQ/TR series
Connecting Cable
Conduit
Screw
Conduit bracket
• Remove the busing rubber product attached on the indoor unit.
• Join the conduit and the conduit bracket together using nut.
• Set the connecting cable into the terminal block of indoor unit, and tighten set screw to lock the
conduit bracket to the indoor unit.
• Open the control box cover and connect the remote control cord and indoor power wires.
Conduit connection
Wiring Connection
How to Fix
