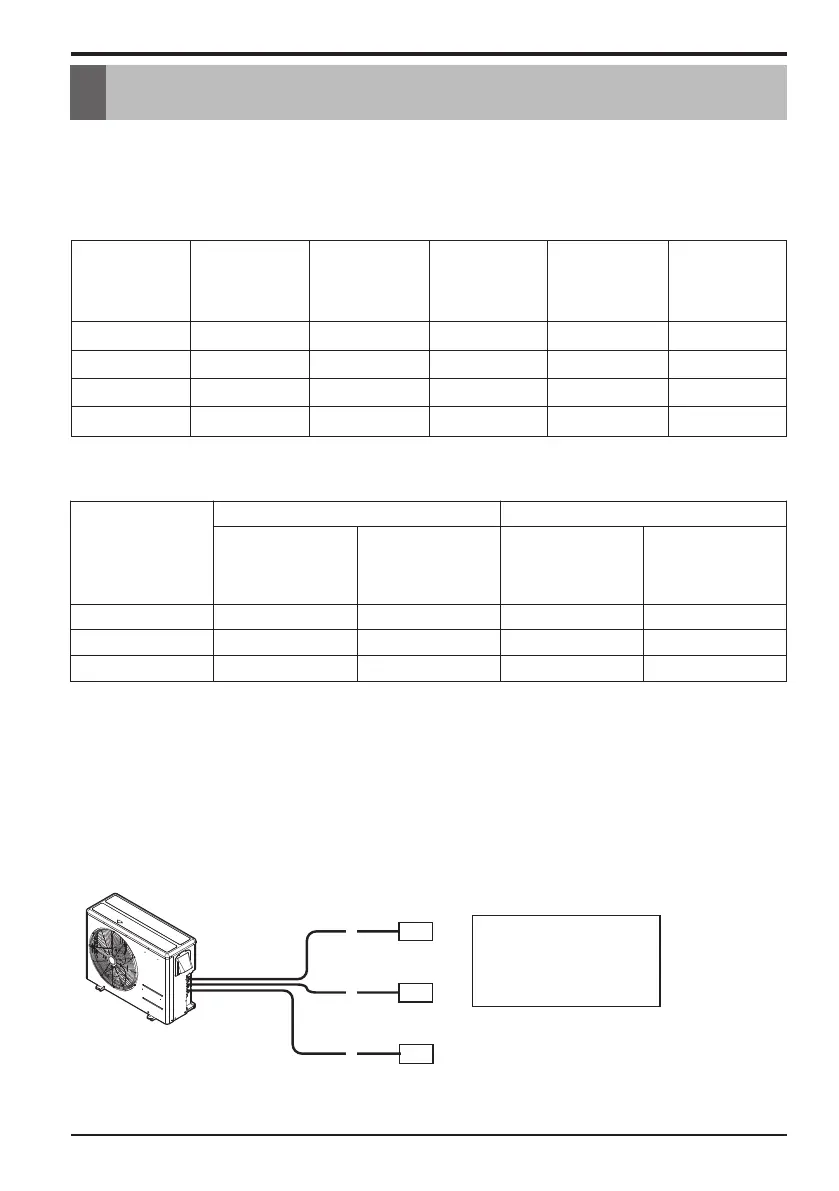

LG LMN078HVT Installation Manual

44 Multi Air Conditioner
Charging
Important:
If you are ever uncertain of the unit charge, reclaim, evacuate and weigh in the correct charge using
the charge amount specified on the Unit`s specification label.
Multiple Piping Models
Additional charge(oz ) = (Total Installation Piping Length-Standard Total Piping Length) x 0.22
Charging
n If installed total piping length is more than standard total length, additional refrigerant charging is
necessary.
Below standard total piping length, additional refrigerant charging is not required.
18 50(164) 25(82) 3(9.8) 20(0.22) 30(98.4)
24 70(230) 25(82) 3(9.8) 20(0.22) 30(98.4)
30 75(246) 25(82) 3(9.8) 20(0.22) 30(98.4)
36 75(246) 25(82) 3(9.8) 20(0.22) 30(98.4)
Outdoor Unit
Capacity
(kBtu/h class)
Max total length of all
pipes (A+B)/(A+B+C)/
(A+B+C+D)
Max length of each
pipe (A/B/C/D)
Min length of each
pipe (A/B/C/D)
Additional Refrigerant
Unit : g/m (oz/ft)
Standard Total Piping
Length (No Add`l
refrigerant)
Unit:m(ft)
Unit:m(ft)
Each branch pipe
a = 82 ft
b = 16 ft
c = 49 ft
❈ Additional Charge
= {(82+16+49)-98.4} x 0.22 = 10.69 oz
a
b
c
9 k
9 k
9 k
EX) A3UW24GFA0
Multiple Piping Models
Distributor Type Model
Outdoor Unit
Capacity
(kBtu/h class)
Main Piping Length Branch Piping Length
Standard Length
Additional
Refrigerant
Unit : g/m (oz/ft)
Standard
Length
Additional
Refrigerant
Unit : g/m (oz/ft)
48 5(16.4) 50(0.55) 5(16.4) 20(0.22)
54 5(16.4) 50(0.55) 5(16.4) 20(0.22)
60 5(16.4) 50(0.55) 5(16.4) 20(0.22)
