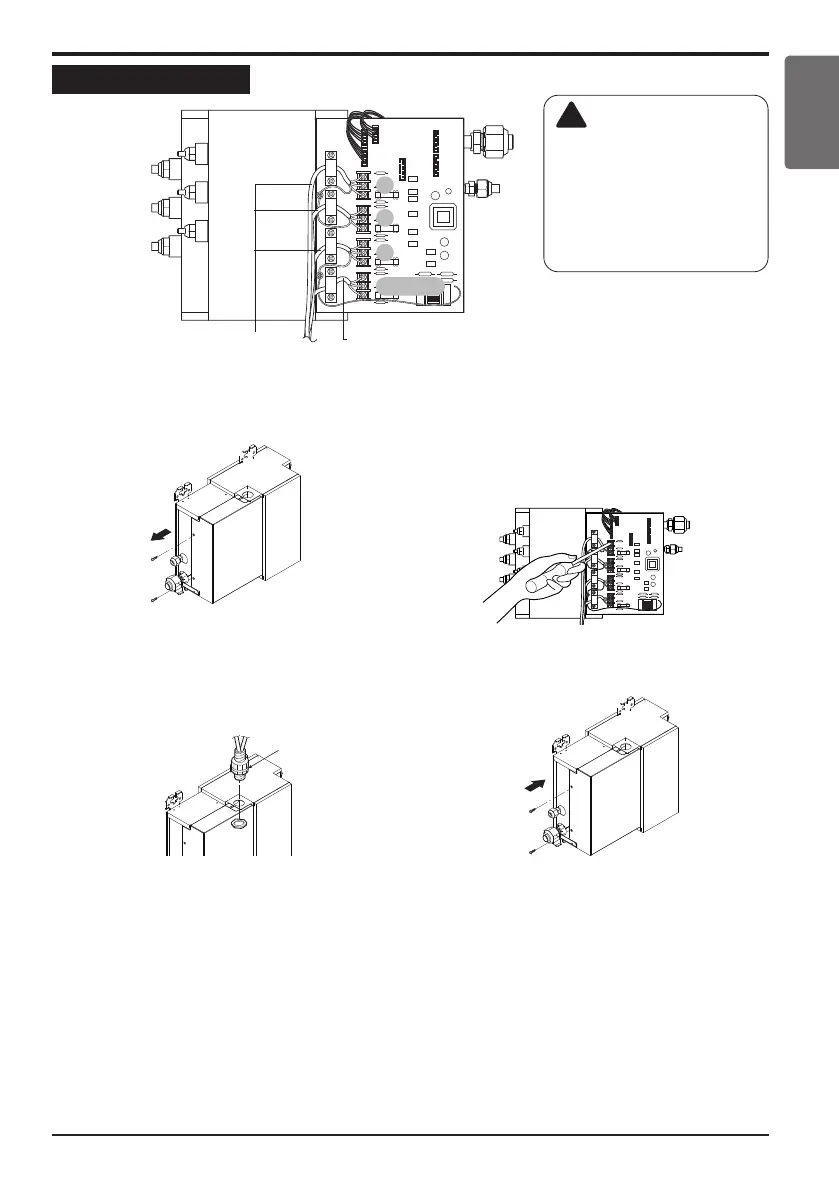

Installation Manual 37
Connecting the Cable between Indoor Unit, Distributor Unit and Outdoor Unit
ENGLISH
(1) Remove the control cover. Loosen the two
screws, and slide the cover in the direction
of the arrow.
(2) Pull out connection cable through conduit.
After conduit to the panel, fix nut to the
opposite side of panel. Pass the connection
cable through the hole.
(3)
Perform wiring with reference the wiring diagram
on a control cover of outdoor unit. Allow 300
mm(11 13/16 inch) for the pulling-out section of
harness. Fix the wires completely with wire
clamps(4 locations).
(4) Put in the cover in the direction of the arrow
then tighten the screws.
A room
B room
C room
A
B
C
CN-PWR
Connection wire for indoor units
(AWG 18-4)
Connection wire for outdoor units
(AWG 16-4)
Lock nut (field supply)
Lock nut (field supply)Lock nut (field supply)
Conduit (field supply)
Lock nut (field supply)
Lock nut (field supply)
In Case of 3 rooms
WARNING
Do not use tapped wires,
stand wires, extension
cords, or starbust
connections, as they may
cause overheating,
electrical shock, or fire.
!
