Page 7
Service Bulletin
Product: LED TV
Bulletin #: GLZ20190
0182
-01
Release Date
: 08/14/ 2019
[Repair Instruction] 4 of 4

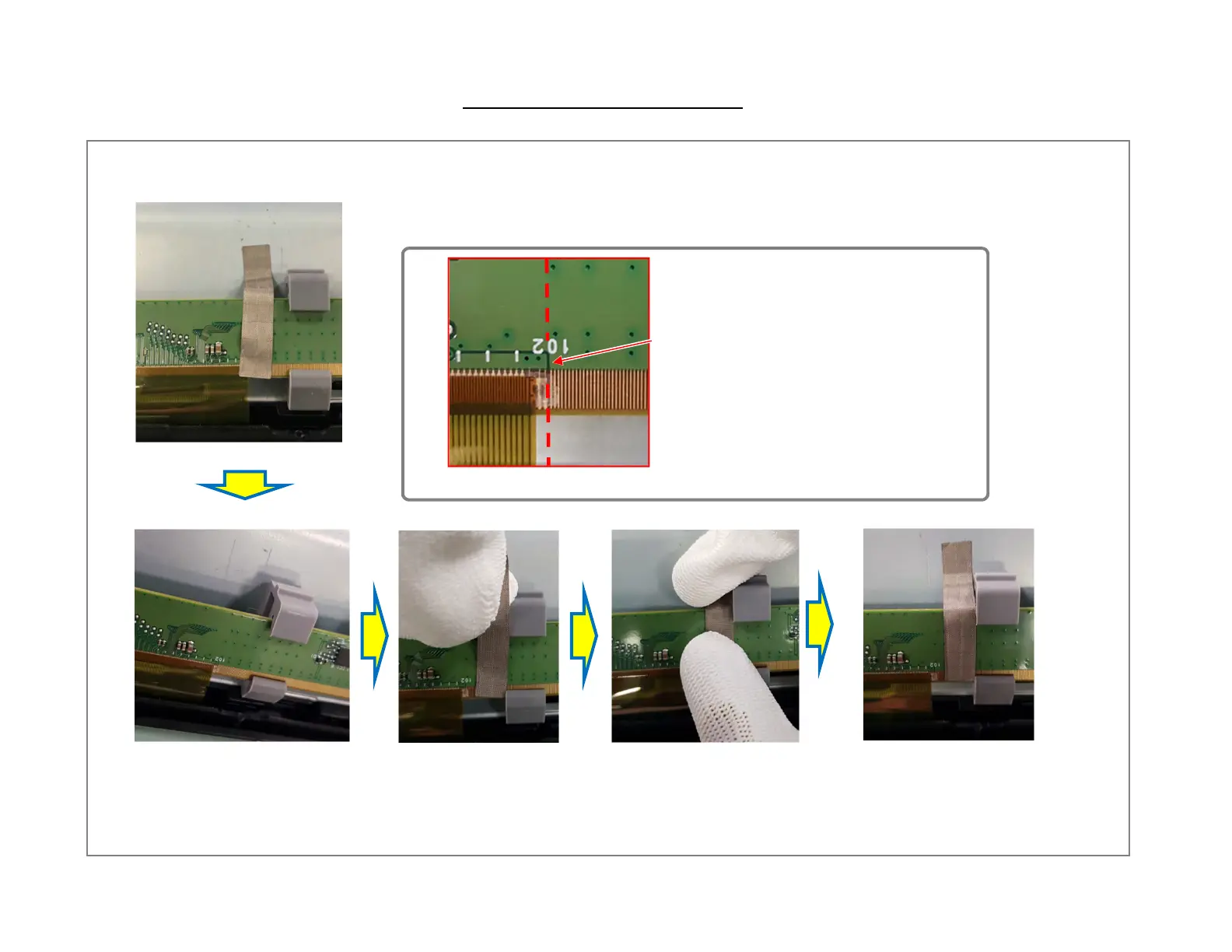

5) If the tape is attached on NG area,
detach it and re-attach it on OK area
Detach the EMI
tape
Re-attach it on the OK
area, starting from the
bottom copper
Re-attach to the
Cover Bottom
Complete re-attachment
V_COM
Area
NG
OK
When the EMI tape Invades NG
Area, there is a risk of a Screen
Whitening occurrence
Red line indicates border of V_COM pattern
153
155
Table of Contents
Binder1
1
4
4
Binder1
1
0
1
1) CNZ202000073-01_Mullion is not workingV1_200312
7
2) CNZ202000055-01_Working guide (Rework Grille Assembly) v2.e1
12
3) CNZ201900500-01 REF-Frost build up aroud ice fan_SVC Bulletin_191220_V2.2 CheM
20
4) CNZ201900449-01_Motor Assembly DC Indoor v3_20191125
25
5) CNZ201900372-01_Filter_Leakage_190905_revised3
28
6) CNZ201900314-01-V1GIDandDID Door Holder Change-SVC Bulletin_191112
35
7) CNZ201900274-01_Guide, Fan_REVISED
52
8) CNZ201900235-04-Universal Compressor Process-FC,FLB, FLA-to-FLS SVC Comp_191025SVC1 Bulletin_AI Revised
56
9) DFZ202000058-01_Repair of TD_Touch_Sticker_V9.1
75
10) DFZ201900167-01-IE Error SVC Bulletin v4
77
11) DFZ201900164-01_Gear washer
79
12) DFZ201900156-01_V0.1_Drain Pan SVC Bulletin
80
13) DFZ201900119-01-Dispenser detergent box_v2
82
14) DFZ201900071-02_Top loader Rust issue SVC Guide_RML revision[3]
83
15) DFZ201900068-01_Service method for Cover,Guide_190131.e1
90
16) CDZ202000004-01_Glide_Rail_Rust_200220v1.3.e1
93
17) CDZ201900009-02_Revision 01.e1
103
18) CVZ201900039-02_Knob Supporter lever Replacement_Active SVC.e1
110
19) CVZ202000016-01-New Aramis Main harness-cooktop harness.e1
115
20) CVZ202000015-01-200130_Lupin Slide in Range Door Hinge-rev1.3.e1
118
21) CVZ202000014-01_Lupin Gas Smell SVC Bulletin-rev1.1.e1
120
22) GLZ202000012-01-65UH5500-Replacement-Model-Service-Guide-ENG
122
23) GLZ201900187-01_Wi-Fi-Turns-Off-Symptom_Warranty_v3.3
124
24) GLZ201900186-01_Guide-New-OLED-SERV-Module-ENG
146
25) GLZ201900182-01-60UK60,UM69-71_Screen_Whitening_Reposition_Tape-ENG
148
GLZ201900182-01 Whitening Pic Move Tape 60UK60, UM69-71
148
Applicable Models
148
Symptoms / Cause
148
Repair Instructions (Brief)
148
No Parts or Extended Warranty
149
Models Related to this Bulletin
150
[Repair Instruction] 1 of 4
151
[Repair Instruction] 2 of 4
152
[Repair Instruction] 3 of 4
153
[Repair Instruction] 4 of 4
154
26) GLZ201900181-01_No_Display_Issue-Due-to-Tape-UM69-73-ENG
155
GLZ201900181-01_No_Display_Issue-Due-to-Tape-UM69-73
155
Page 1:
155
Applicable Models
155
Symptom / Cause
155
Repair Instructions
155
Page 2:
156
Current and New:
156
Part Interchangeable: No Parts
156
Extended Warranty: No
156
Page 3: Applicable for Models
157
Pg 4 Repair Instructions (1 of 5)
158
Pg 5 Repair Instructions (2 of 5)
159
Pg 6 Repair Instructions (3 of 5)
160
Pg 7 Repair Instructions (4 of 5)
161
Pg 8 Repair Instructions (5 of 5)
162
27) GLZ201900168-01-On-boarding-Main-2019-LCD-OLED-(US)
163
GLZ201900168-01-On-boarding Main 2019 LCD-OLED
163
Subject: On-boarding New Main 2019 LCD-OLED (Tool Options)
163
Symptoms / Cause
163
1. Repair Instruction:
163
2. Current and New (Visual / Part number & Name etc.):
164
28) GLZ201900166-01-UH55-No-Power-caused-by-Backlights-ENG
165
GLZ201900166-01 UH55 Backlights Cause No Power
165
Page 1
165
Applicable for Models:
165
Symptoms
165
Symptoms / Cause
165
Repair Instruction
165
Page 2
166
Current and New
166
Part Interchangeable:
166
Extended Warranty:
166
29) GLZ201900163-02-TV-Abnormal-Whitening-Screen-ENG
167
GLZ201900163-01-TV Abnormal Whitening Screen
167
Applicable Models:
167
Symptoms / Cause
167
1. Repair Guide
167
2. Current and New:
168
Part Interchangeable:
168
Scrap Current Part
168
Extended Warranty:
168
30) GLZ201800141-01-No-Backlights_Update-R3-ENG
170
asc
172
asc1
172
asc2
173
asc3
175
error
176
35) REF Error Code
176
36) Washer Error Code
178
37) Dryer Error Code
181
38) DW Error Code
182
39) Styler Error Code
183
