Service Bulletin
Product: LED TV
Bulletin #: GLZ201900181-01
Release Date: 07/29/ 2019
[Repair Instruction] 3 of 5
5) After disassembling the 8 screws,
please separate left/right cover shield carefully.
6) Checking Points: EMI tape attachment condition (left/right side)

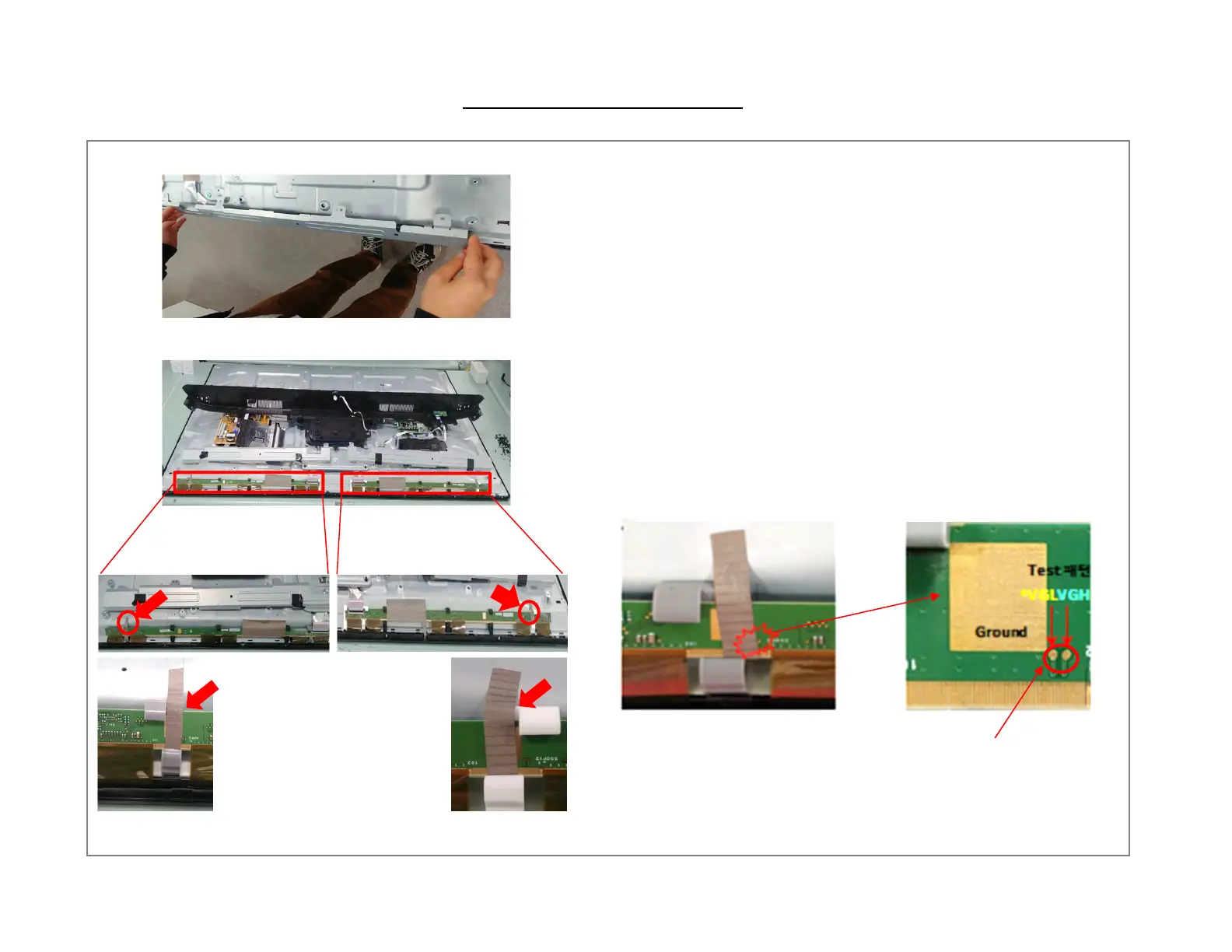

- Please check whether the Test Patterns on the SPCB is
covered with EMI tape or not, (Refer to the below pictures).
- If EMI tape is improperly attached as “NG” below,
the defect of (“No display”) can happen.
If Test Pattern is covered with EMI
tape, no display can be happened
EMI TAPE (Left side)
EMI TAPE (Right side)
EMI Tape NG
※ SPCB: Module Source PCB
SPCB
