Fig 5-5
Fig 5-7
Fig 5-8
Fig 5-9
Fig 5
Fig 5-6
Fig 5-1
Fig 5-3 Fig 5-4
Fig 5-2

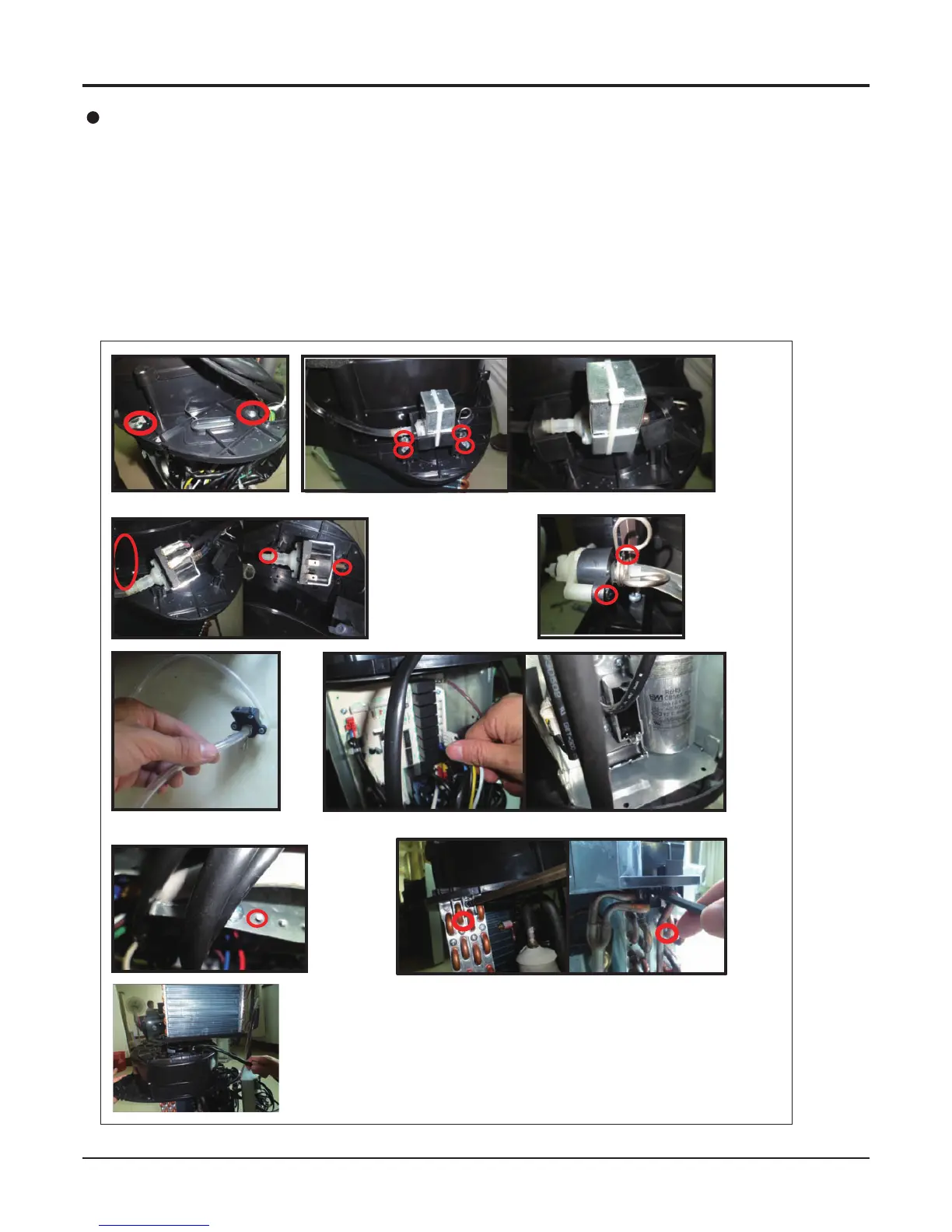

5 Lower air fan channel (Fig 5)
5-1 remove the 2 screws fixed the c-box and lower air channel (Fig 5-1)
5-2 remove the 4 screws fixing the upper water pump in the lower air channel. (Fig 5-2)
5-3 remove the intermials of upper water pump ,then remove the connecting pipes. (Fig 5-3)
5-4 remove the 2 screw of the water discharging valve (Fig 5-4)
5-5 remove the electric pump. (Fig 5-5)
5-6 remove the interminals of the lower channel motor (Fig 5-6)
5-7 remove the ground wires(Fig 5-7)
5-8 remove the 2 screws fixed of the exchanger and lower air channe(Fig 5-8)
5-9 remove the lower air channel. (Fig 5-9)
