LG LP1415GXR Service Manual

- 23 -
Copyright ©2014 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only
Fig 4-4
Fig 4-6 Fig 4-7
Fig 4
Fig 4-5

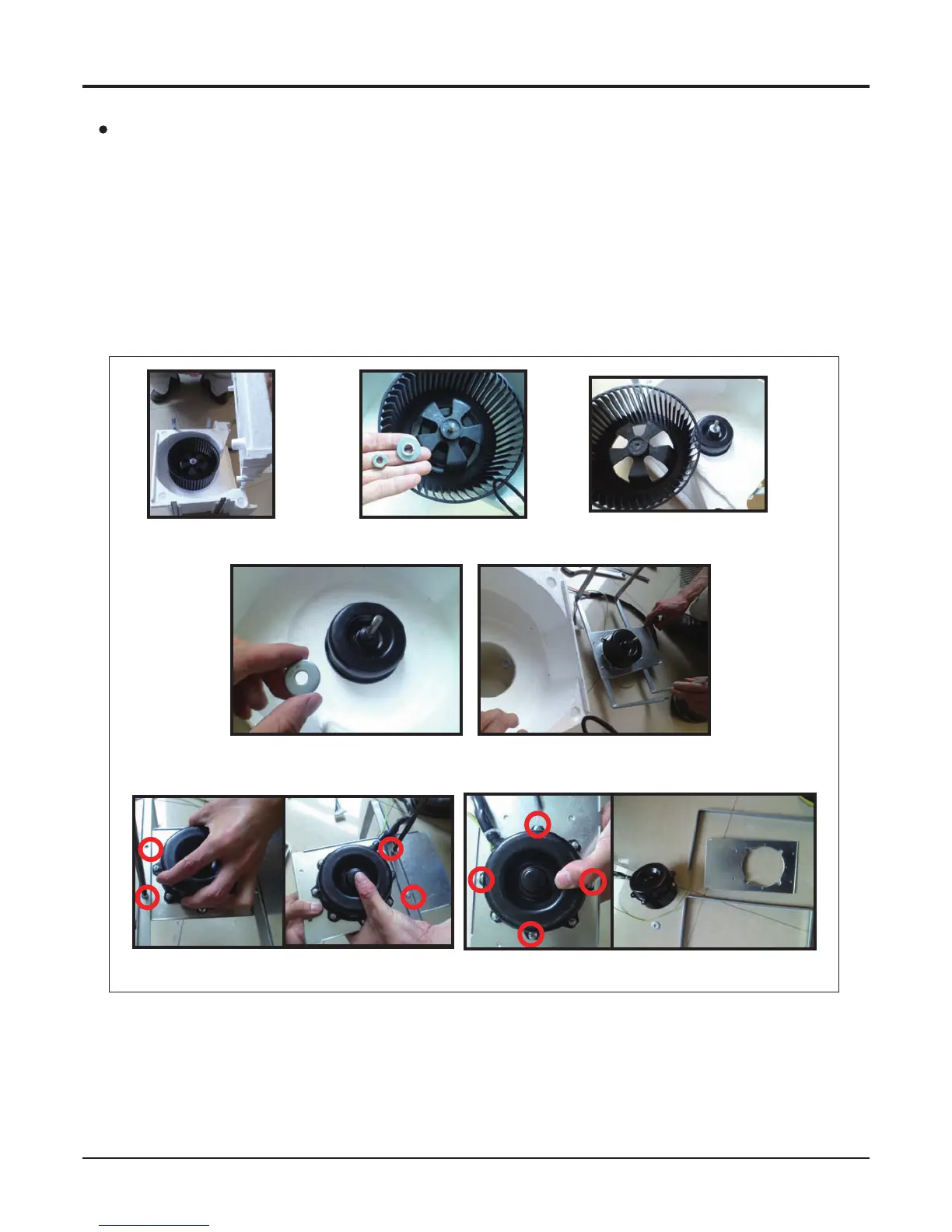

4-1 Remove the upper air channel (Fig 4-1)
4-2 Remove the fan nut and gasket. (Fig 4-2)
4-3 Separate the fan and lower foam. (Fig 3-3)
4-4 Remove the gasket between the fan and motor. (Fig 4-4)
4-5 Remove the motor and motor bracket from lower foam. (Fig 4-5)
4-6 Remove the 2 screw of the motor bracket. (Fig 4-6)
4-7 Remove the 4 screws and remove the motor. (Fig 4-7)
Fig 4-1 Fig 4-2
Fig 4-3
4 Upper channel components (Fig 4)
7. DISASSEMBLELY
