Fig 3-1 Fig 3-2
Fig 3-3 Fig 3-4 Fig 3-5
Fig 3-6 Fig 3-7
Fig 3

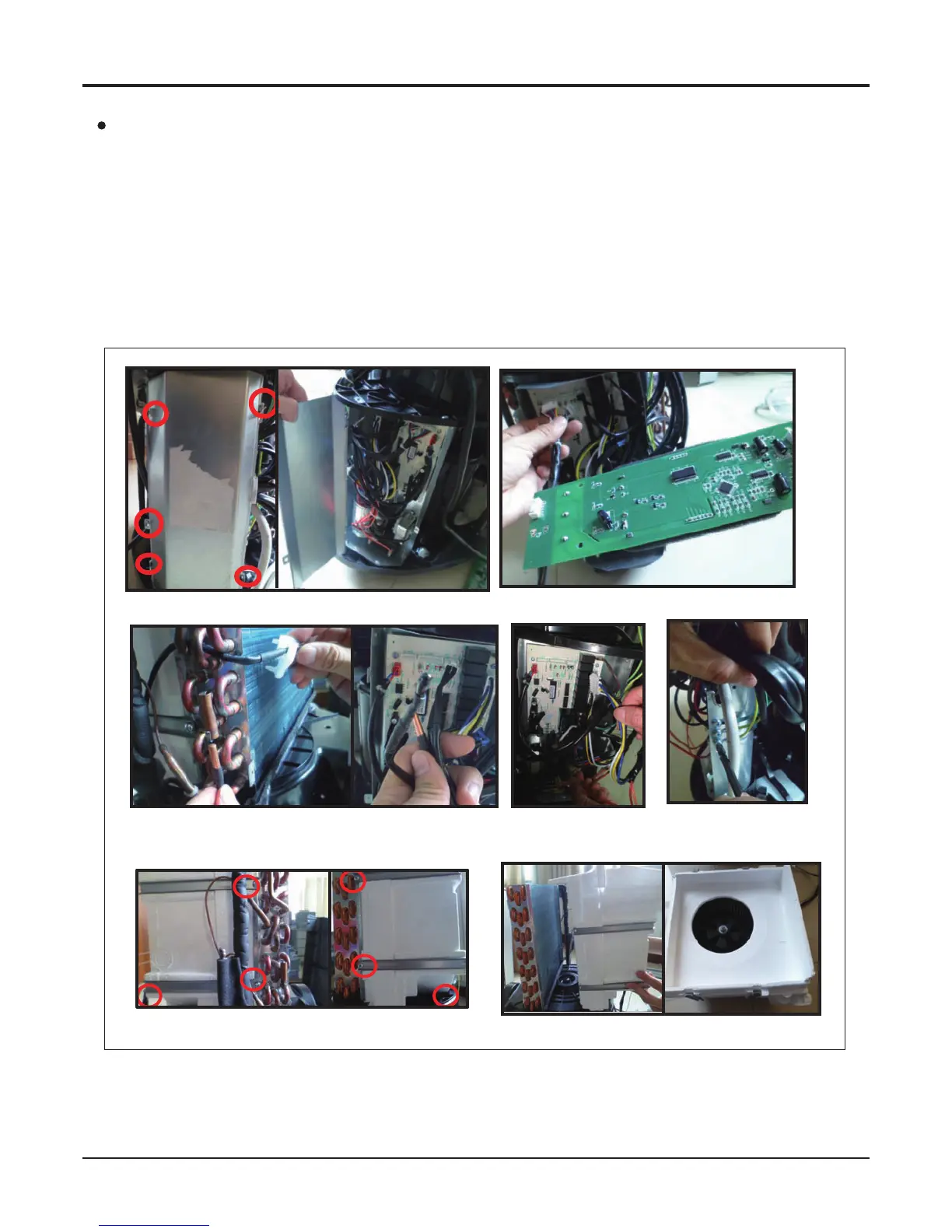

3-1 Remove the screw in picure,and twist the clips . Then remove the c-box cover. (Fig 3-1)
3-2 Pull out the display PCB from C-box. (Fig 3-2)
3-3 Remove the senor. (Fig 3-3)
3-4 Remove the intermials of upper fan motor . (Fig 3-4)
3-5 Remove the motor ground wire screw from c-box (Fig 3-5)
3-6 Remove the 6 screw fixing the upper air channel. (Fig 3-6)
3-7 Remove the upper air channel. (Fig 3-7)
3 Unpper air channel (Fig 3)
