- 28 -

Only for training and service purposes

LGE Internal Use Only

Fig 9-1

Fig 9-3

Fig 9-4

Fig 9-5

Fig 9

Fig 9-6

Fig 9-2

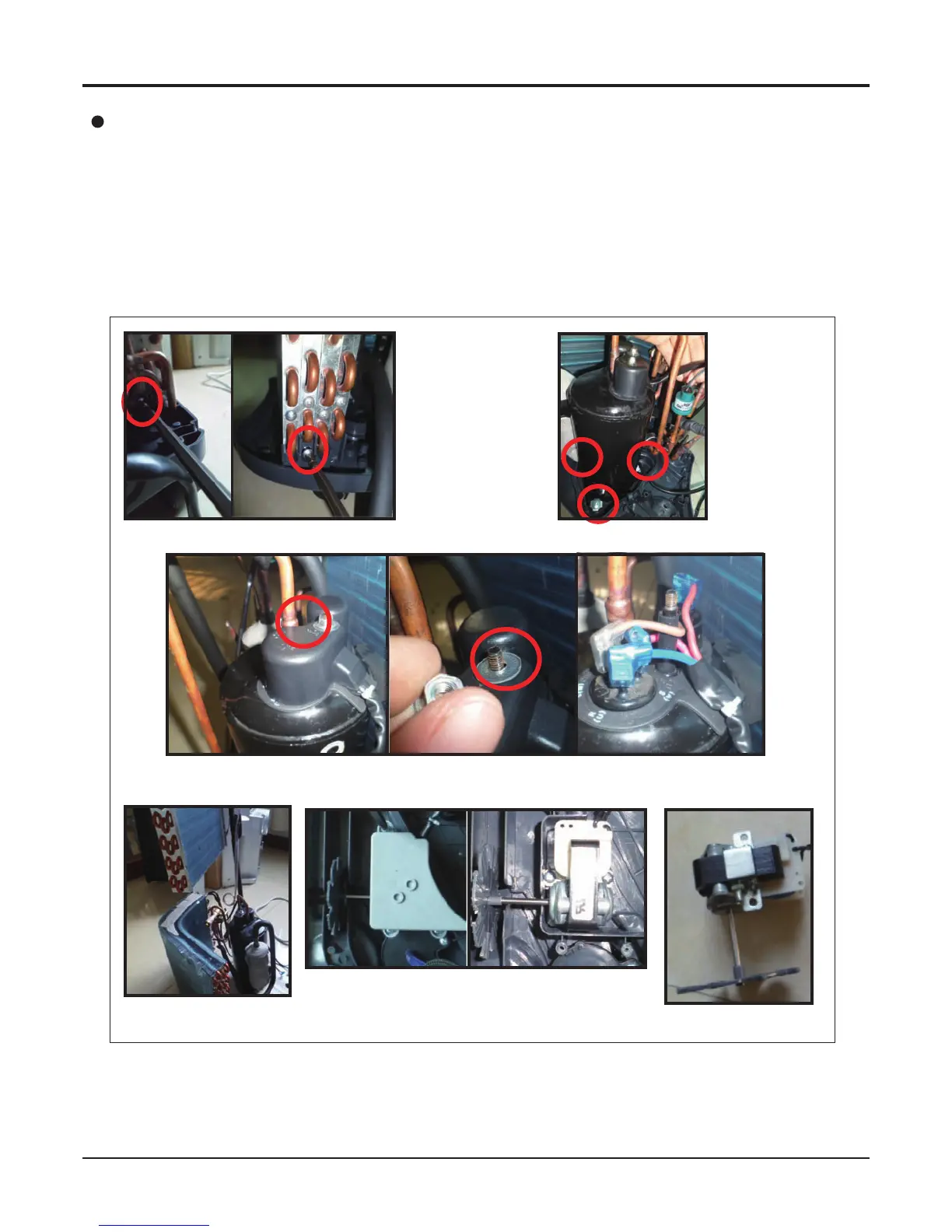

9 Cooling system (Fig 9)

9-1 remove the two crews connecting the exchanger and the base pan. (Fig 9-1)

9-2 remove the 3 nut of the compressor (Fig 9-2)

9-3 Remove the 3 screws fixed compressor with wrench.then get out the 3 compressor gasket. (Fig 9-3)

9-4 Get up out the compressor, evaporator and condenser softly. (Fig 9-4)

9-5 remove the 3 water fan screws and put it out. (Fig 9-5)

9-6 put the water fan motor out. (Fig 9-6)

7. DISASSEMBLELY
