7. Bend a insulation ceramic wool up and bend 2
flanges up.
8. Carefully pull the hidden bake element out of the
range.
NOTE: After replacing the bake element, assemble
by rotating the baking heater cover 180
degrees. (shown as below: assembly
sequence 1→ 2)

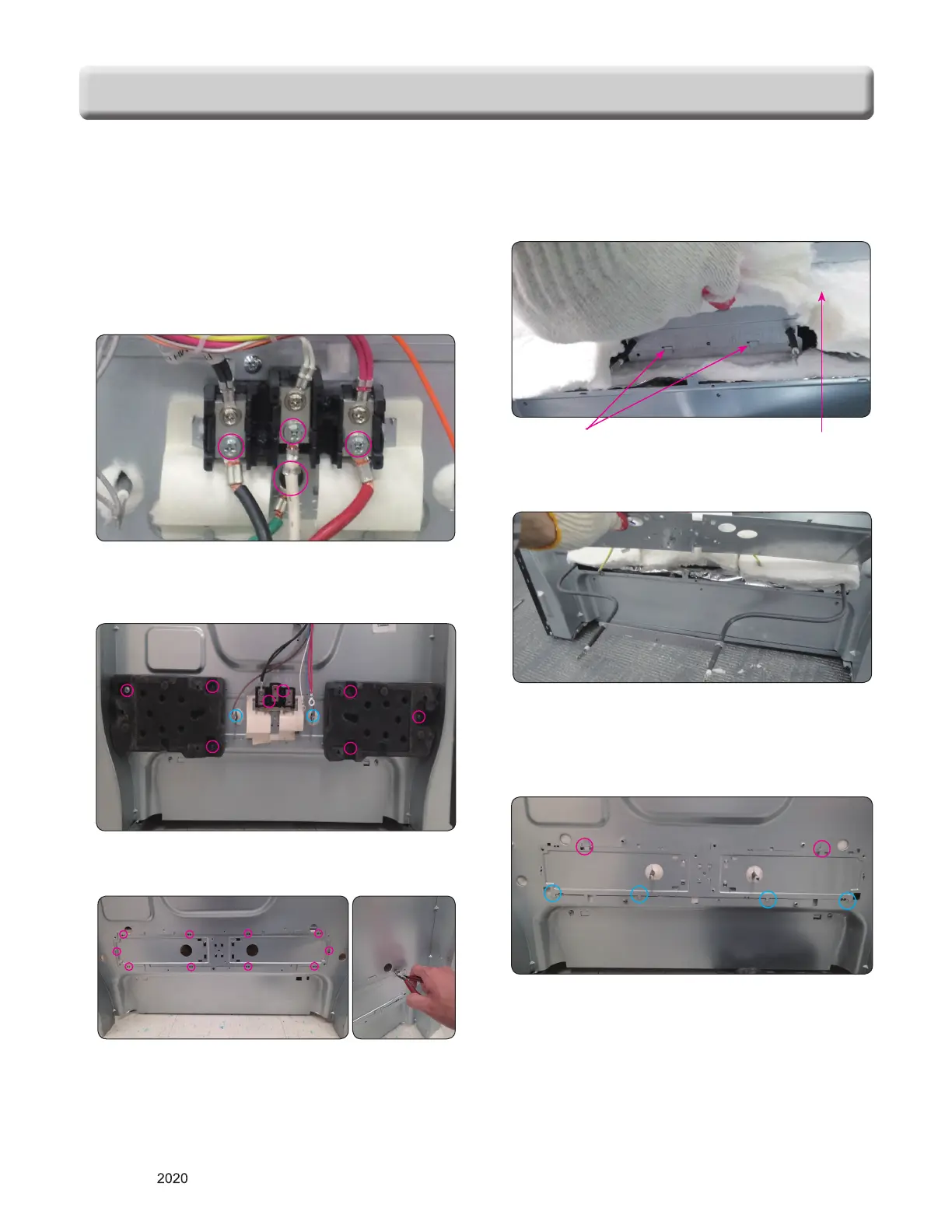

COMPONENT ACCESS
1. Unplug range or disconnect power.
2. Pull the range out of its mounting location so that
you can access the rear of the unit.
3. Remove rear and motor cover
(See the page 3-2)
4. Remove 4 screws and a powercord.
5. Remove 8 screws and detach the bake heater
cover from the range. Disconnect 2 wiring (2 bake
heater receptacles)
6. Use the nipper to cut the 10 connections on the
Bake heater cover and Rear panel.
REMOVING THE HIDDEN BAKE ELEMENT
Insulation ceramic wool
2 flanges
2 2
1
1
2
2
