3-8
Copyright © LG Electronics Inc. All rights reserved.
Only training and service purposes
1. Disconnect power and remove oven racks.
2. Pull the range out of its mounting location so that
you can access the rear of the unit.

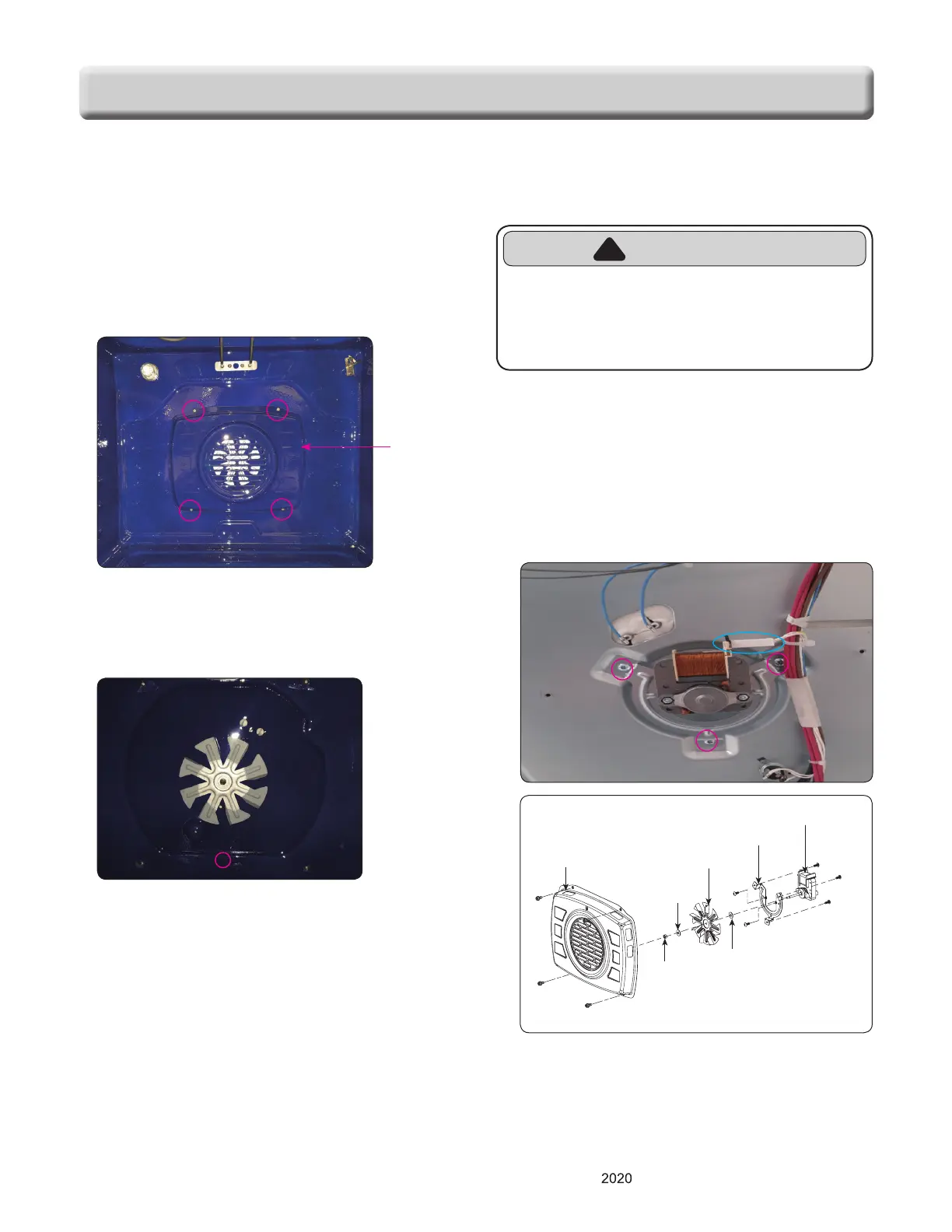

3. To remove the convection heater,
Remove 4 screws and detach the fan cover.
4. To remove the fan blade, Remove 1 nut,
1 washer, fan blade and 1 washer.
* Remove the nut by screwing clockwise. The fan
blade can be replaced from inside oven.
COMPONENT ACCESS
5. To remove the fan motor assembly,
a) REMOVE THE REAR, MOTOR COVER AND
CONTROL ASSEMBLY
(See the page 3-2)
b) Remove 3 screws from the fan motor bracket
and disconnect 1 wiring connections.
c) Pull the fan motor out of the rear panel and the
motor can be detached.
REMOVING THE CONVECTION,
FAN BLADE AND FAN MOTOR
CAUTION
• Be careful not to bend the fan blade
- Failure to do so can result in vibration, noise,
and poor performance of convection when
operating.
Fan cover
Nut
Washer
Fan cover
Spring
Washer
Fan blade
Motor Bracket
Conv. Motor
Mounting
screw (3ea)
Fan Cover
Screw (4ea)
To Next Page
