LG LRMVC2306 Series Service Manual

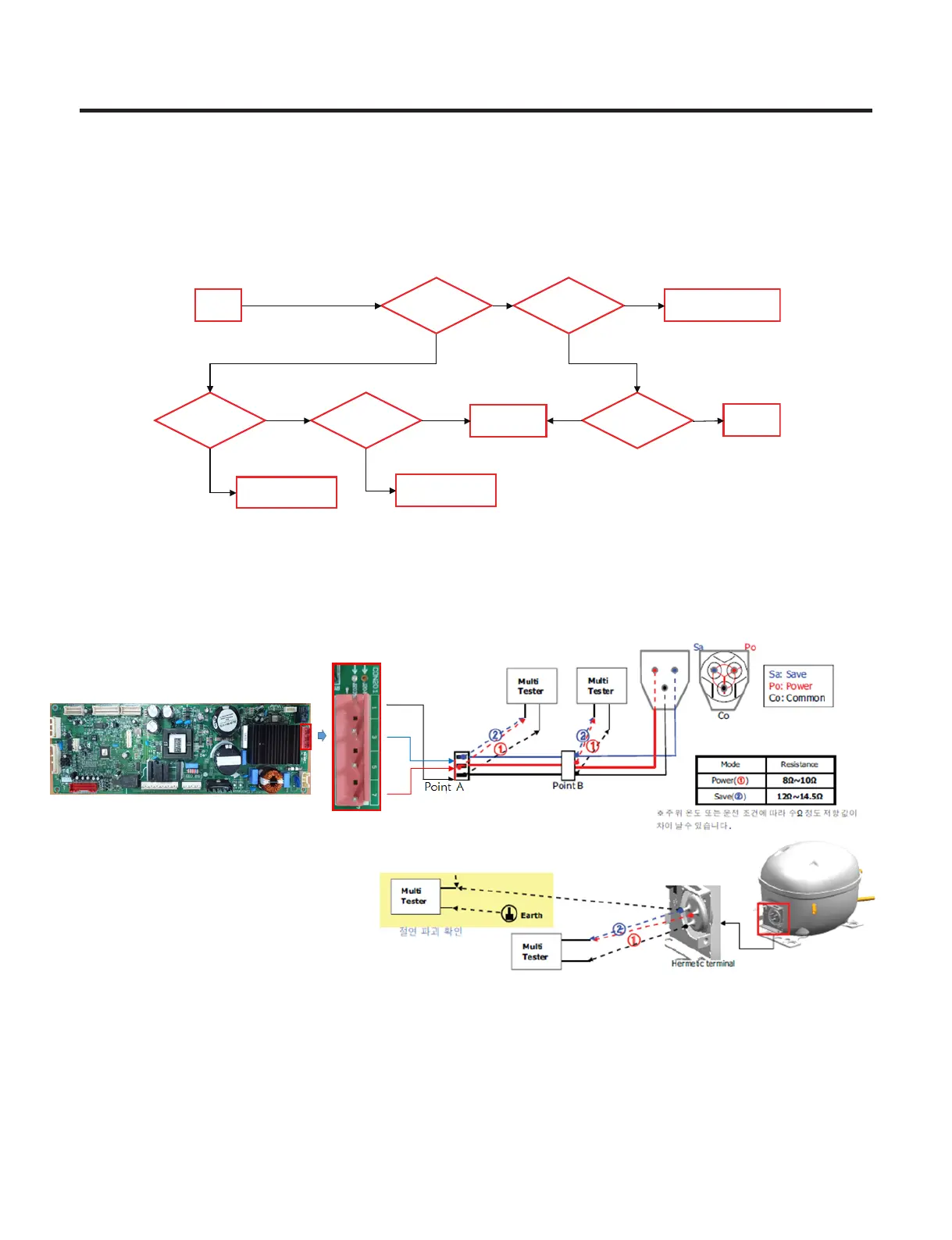

Check the Compressor & Harness
1. Check the Harness connection
2. Check the Compressor
→ Step 1. Power off.
Step 2. Check the Resistance(point A)
Step 3. Check the Harness(INF ohm).
Step 4. Check the Resistance(point B)
Step 5. Check the Resistance(point D)
Power
off
Check the Resistance
(point A )
Harness Connection
OK
A~B
Connection error
Check the Resistance
(point B )
Check the Resistance
(point D )
Replace
Compressor
B~D
Connection error
Check the Harness
Y
N
N
Y
Y
Y
N
N
Check
Comp. terminal
Harness
failure
Y
N
Y
→ Comp Terminal resistance measurement (Power & Common, Save & Common)
→ Check the broken-down insulation : Comp. Save - Earth resistance measurement
-104-
Copyright © 2019 LG Electronics Inc.
All rights
reserved. Only training and service purposes.
