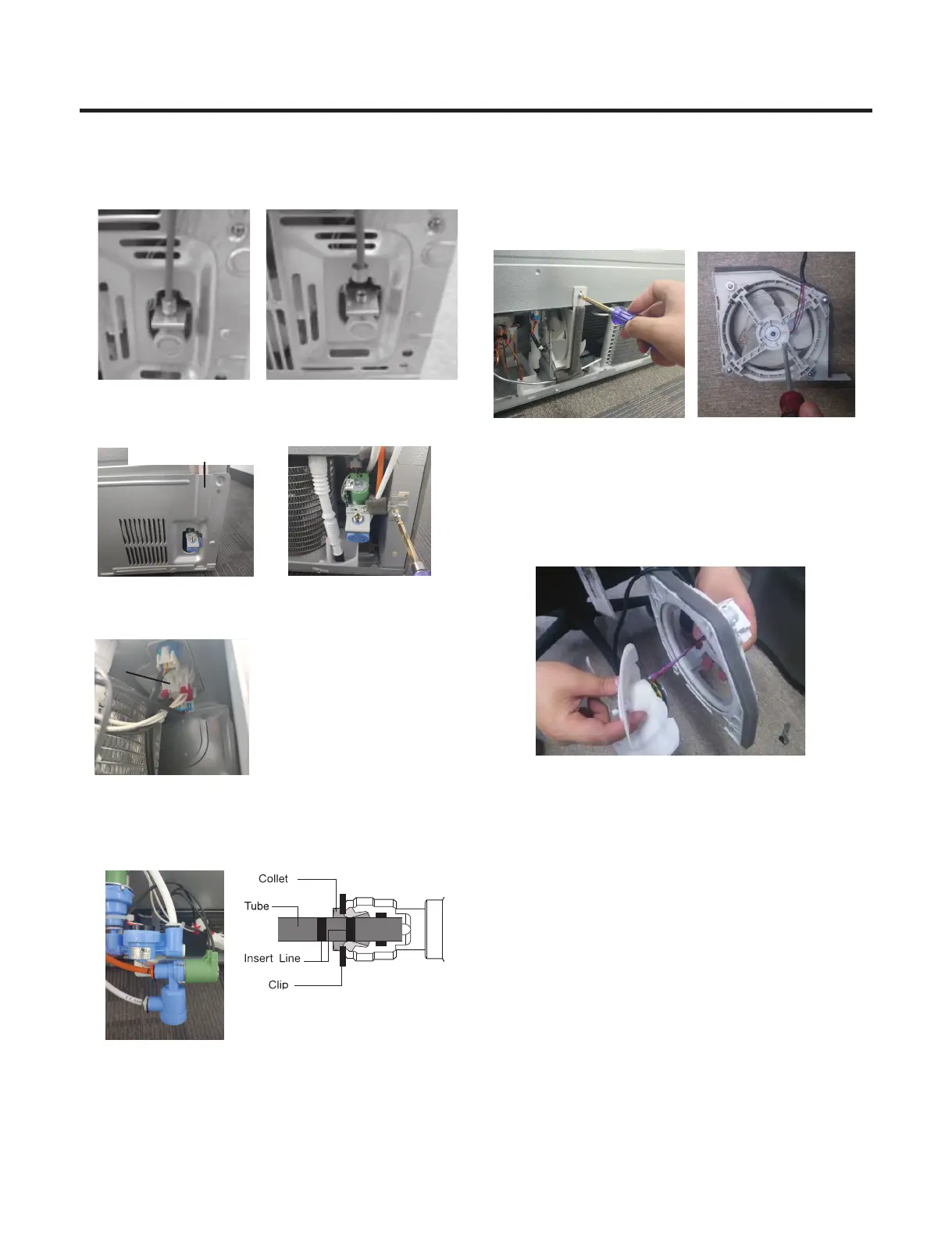

3-20 WATER VALVE DISASSEMBLY METHOD 3-21 FAN MOTOR ASSEMBLY AND
1) Turn off the water to unit. Remove the waterline from the
valve.
DISASSMEMBLY METHOD
1) Remove screws for the Drain Pipe Assembly and the 1
connected to the Motor Cover.
2) Remove cover and 1 screw from the valve.
3) Separate the housing and remove the valve.
4) Remove the clip, and press the collet to separate the
tube from the connector. Note: there maybe some water
in the line.
Mechanical Cover
Housing
2) Remove the screw from shroud and Separate the Fan
motor assembly and Shroud.
Assemble in reverse order. Taking care to avoid.
1. Do not to bend the tube during assembly.
2. Press the Water Dispenser button letting water pour out,
this checks for any leaks in the tube connection, this may
vary depending on the water pressure
( about 2 minutes.).
