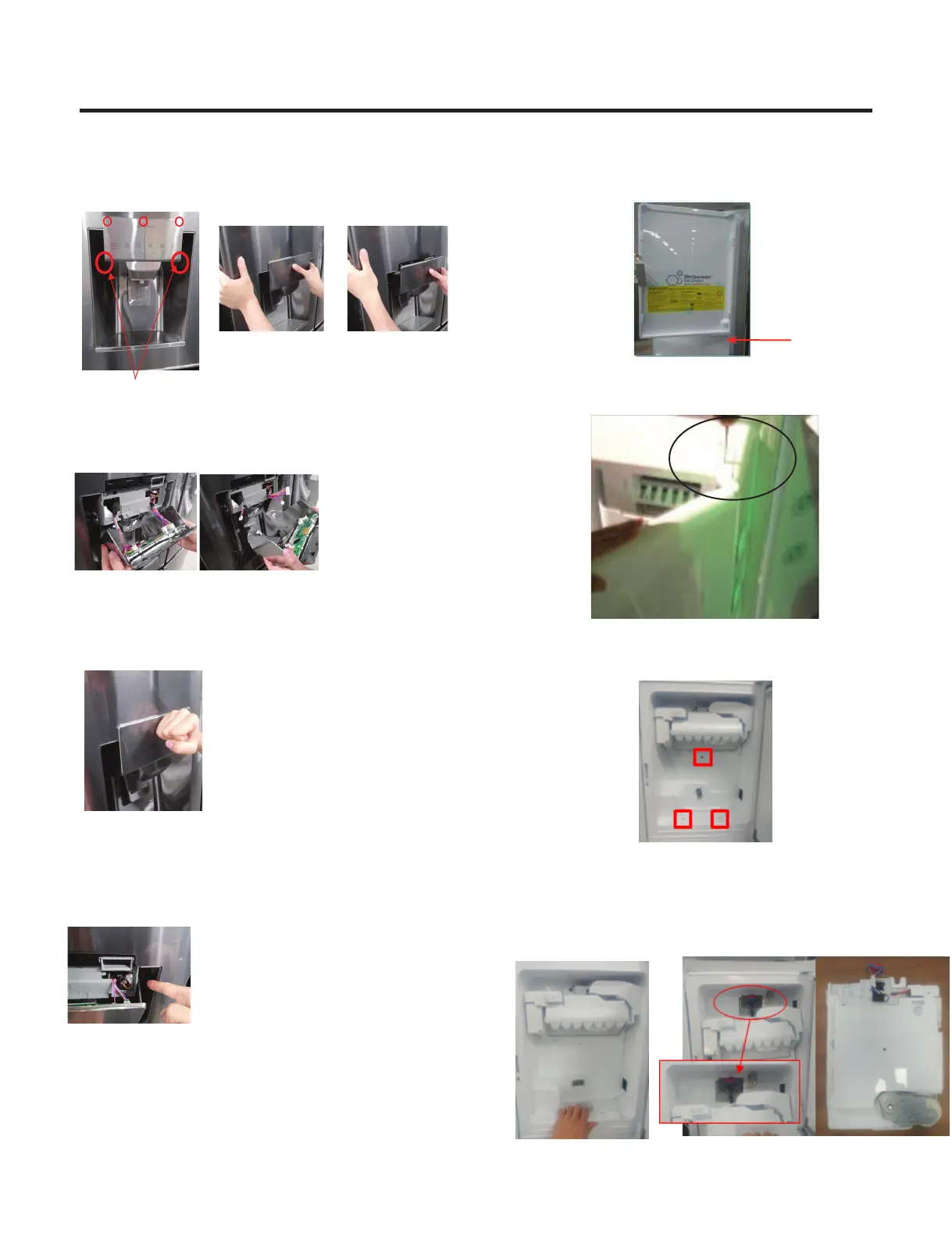

3-12 Ice corner door replacement
1) Loosen the front screw as shown in the picture.
2) Remove the Cover Home Bar as shown in the picture.
hinge
3-11 Dispenser
3) Lift up the hinge with one hand.
4) Pull out the Ice Corner Door with the other hand.
Cover Home
Bar
XUGoGGGGGGkG
GGG GGG
GGU
mGovvr
*
If there is a problem with the WiFi module, please
change the whole display.
YUGhGGGGkGGG
SG G GZGGG~GoU
ZUGhGGGGGGGSGG
GGG G¡GGGk
UGGhGGSGGGZGoGGGGG
GkSGGGˈTTˉGGU
୔Gjh|{pvu
GkGGGGGGGGG
GG~GoGGGGGGGkGGG
GGGGGG~GU
3-11 Icemaker replacement
1) Remove 3 screws marked in the picture below.
2)
Grasp the bottom of motor cover assembly and pull it out
slowly to remove.
3) Disconnect wire harness from wall of compartment.
