-45-
SymptomCheck Point
1. r dH
Part
Resistance [Ω]
FUSE-M 0
DefrostHeater 103~119
DefrostSensor 22k°
Voltage [V]
TEST MODE 3
CON9
7th pin ~ 13th pin
112V ~ 116V
Voltage [V]
TEST MODE 1
CON9
7th pin ~ 13th pin
0V
1. Check the door gasket
2. Check the Defrost Heater
3. Check the PCB output voltage

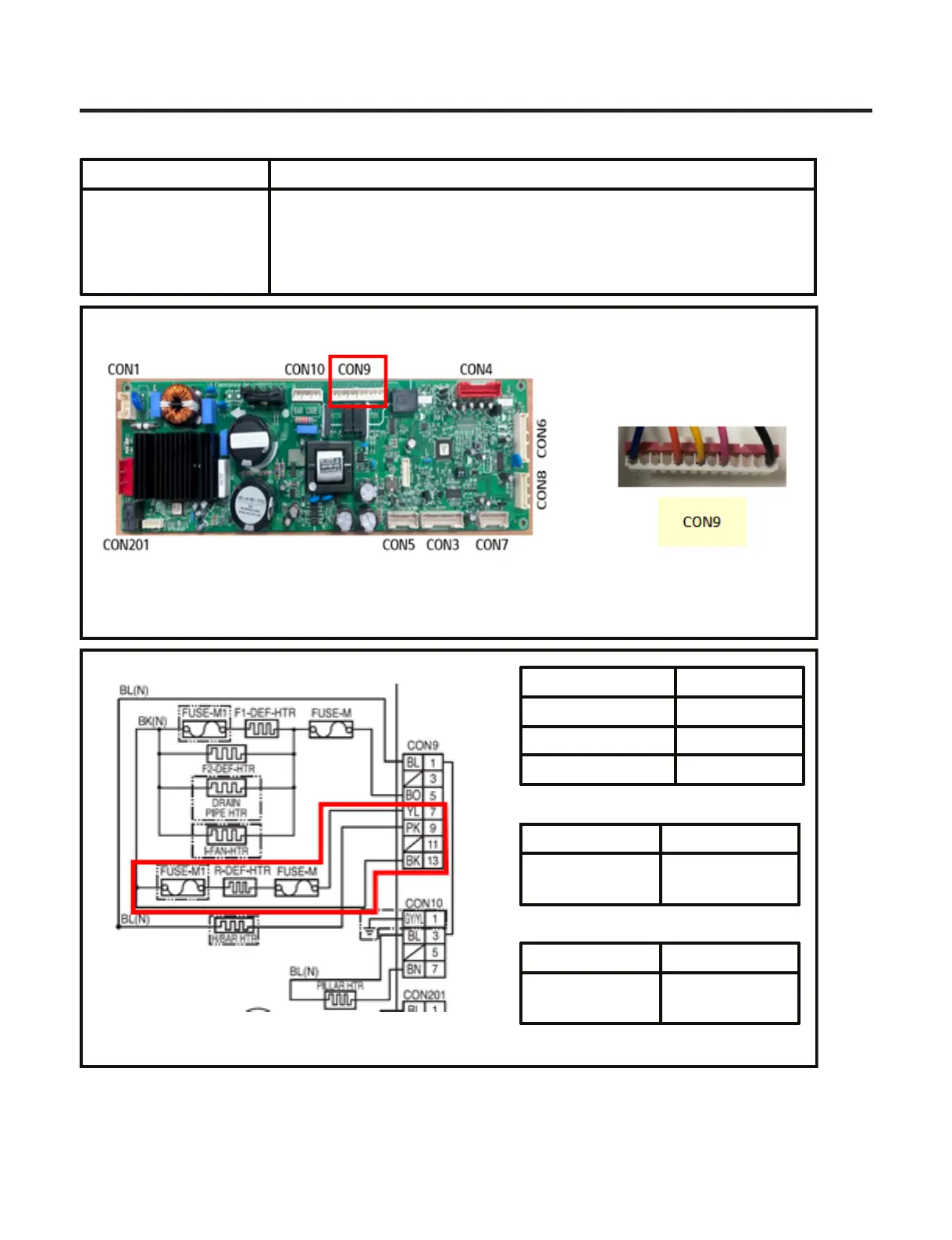

8-7. Defrost Heater Error (r dH)
