■ Auto Operation for Soft Dry
The Setting temperature will be same that of auto operation for Cooling.
- Compressor ON temperature; Setting temperature +0.5°C
- Compressor OFF temperature; Setting temperature -0.5°C
■ Auto Operation for Heating
Intake Air temp. below 20°C Over 20°C~below 21°C
Setting temp. 20°C Intake air temperature +0.5°C
7. Heating Mode Operation

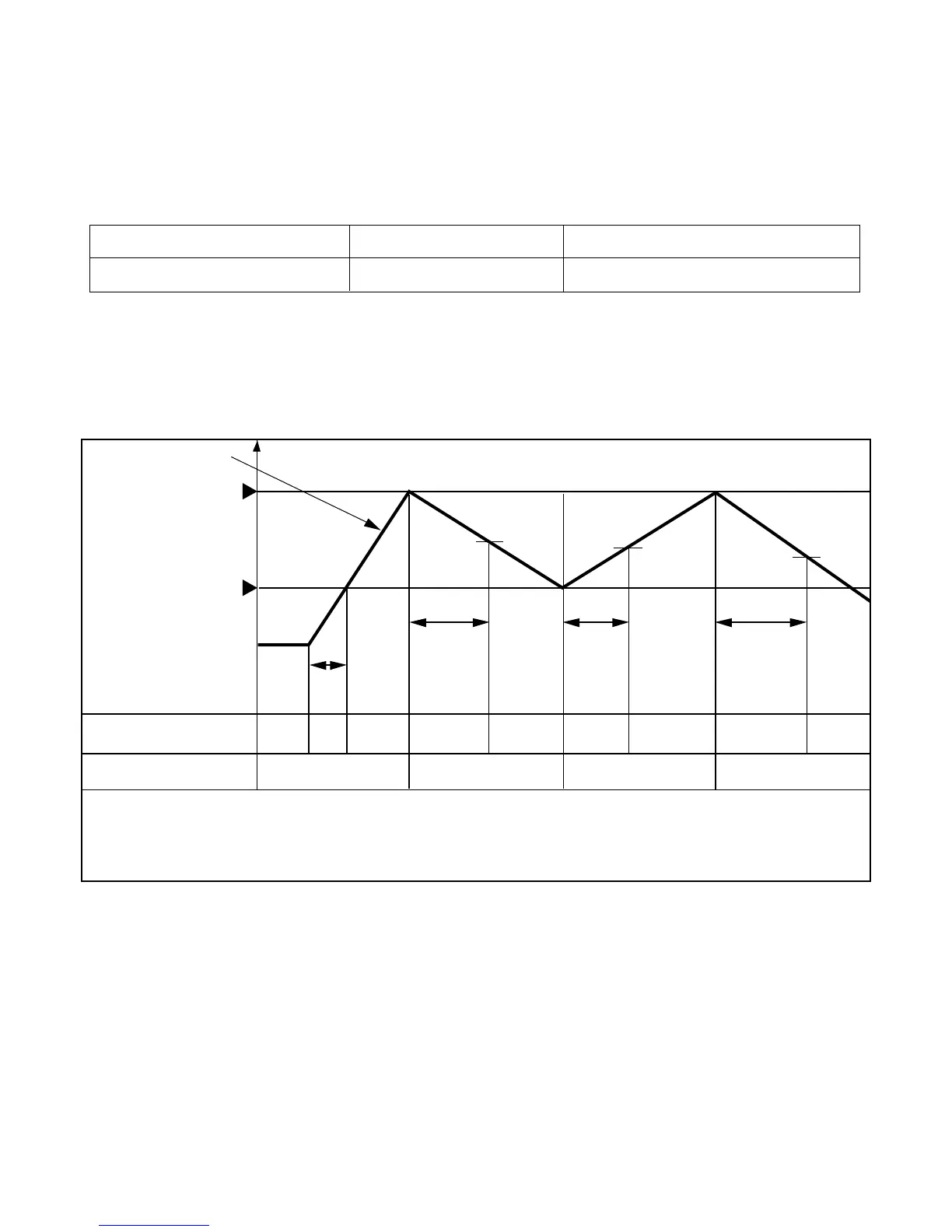

The unit will operate according to the setting by the remote controller and the operation diagram is shown as fol-
lowing.
Intake Air temp.
INDOOR FAN SPEED OFF
Hot
Start
Selecting
fan speed
Selecting
fan speed
LOW
LOW
A
minimum
10sec.
1 min.
minimum
10sec.
minimum
10sec.
A
B
LOWOFF LOW OFF
COMPRESSOR ON OFF ON OFF
Setting temp. +3°C
(Compressor OFF)
• A point; The indoor pipe temperature to be 35°C.
The indoor fan operates minimum 10sec. even if falls lower than 35°C.
• B point; The indoor fan operates minimum 10sec.
Setting temp.
(Compressor ON)
