LG LS-E0960CL - Display Assembly Diagrams

-58-
Electronic Control Device

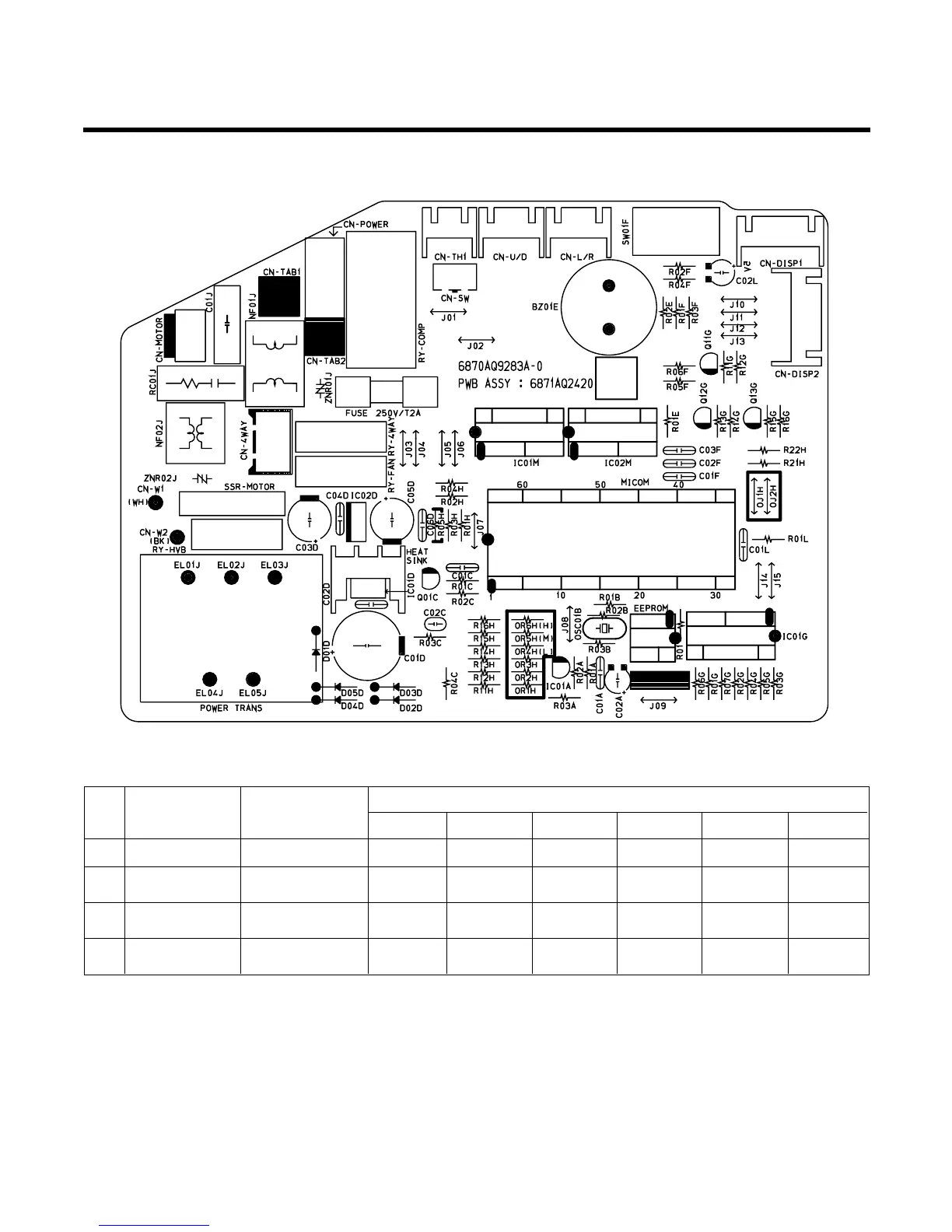

(1) MAIN P.C.B ASM
PCB ASS'Y SVC PART LIST
NO. MODEL P/NO
OPTIONAL FUNCTION
OR1 OR2 OR3 OR4 OR5 OR6
1 LS-E0960CL(S) 6871AQ2420A 12K OPEN 91K 12K 12K 20K
2 LS-F1260CL(S) 6871AQ2420B 12K OPEN 39K 10K 6.8K 12K
3 LS-E0960HL(S) 6871AQ2420C OPEN 5.1K 91K 27K 15K 56K
4 LS-F1260HL(S) 6871AQ2420D OPEN 5.1K 39K 12K 6.8K 15K
