LG LS-E0960CL - Outdoor Unit Dimensions (7 K, 9 K, LS-F1260 CL)

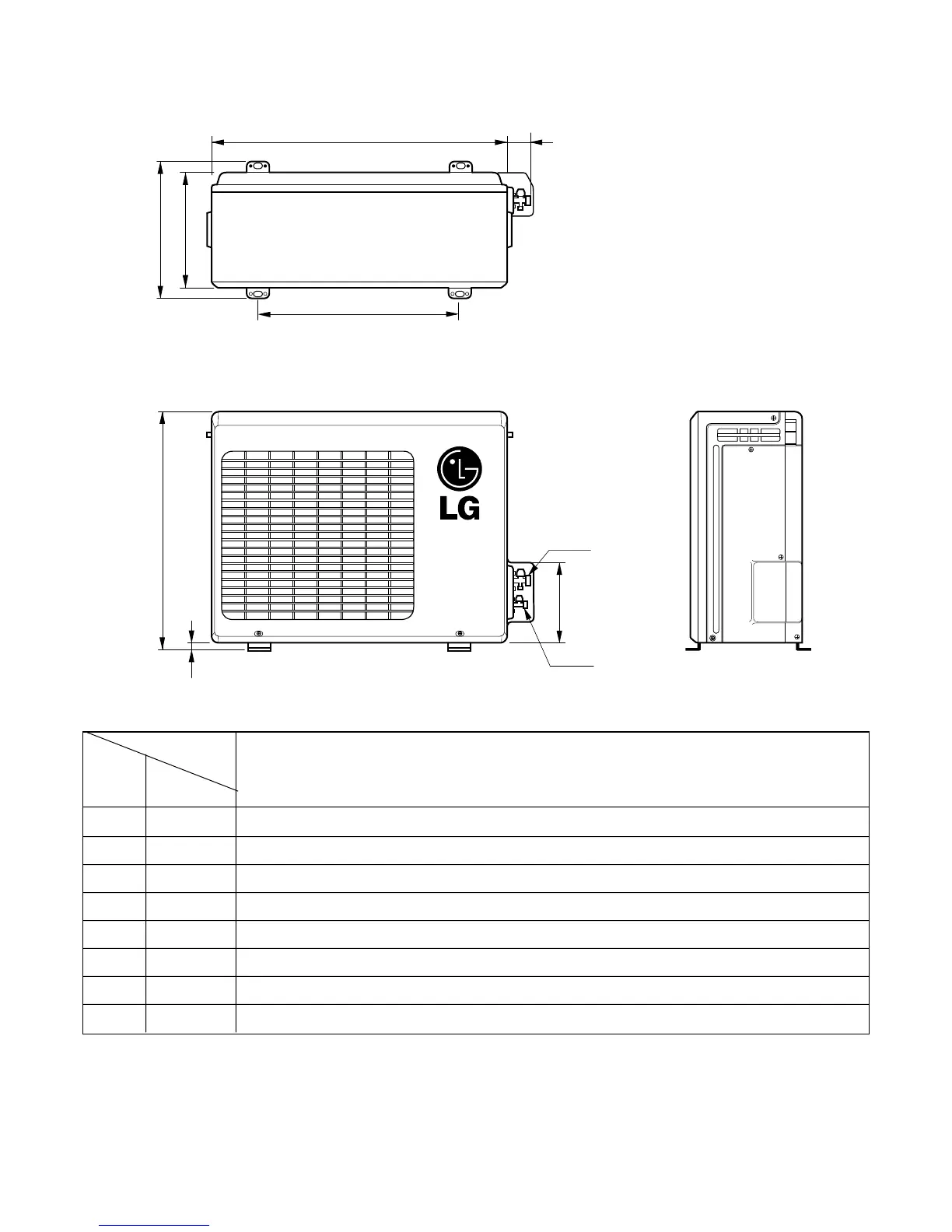

(2) Outdoor Unit ( 9K, 12K)
W
L2
L3
L1
D
H
L4
L5
Gas side
(3-way valve)
Liquid side
(2-way valve)
MODEL
DIM unit
W mm 684
H mm 640
D mm 270
L1 mm 305
L2 mm 62
L3 mm 472
L4 mm 16
L5 mm 193
9K Btu Cooling & Heat Pump
12K Btu Cooling Only
