17INSTALLATION
ENGLISH
Dimensions and Clearances
• Provide proper clearance between the range and adjacent combustible surfaces.
• These dimensions must be met for safe use of your range.
• The location of the electrical outlet and pipe opening (see "Gas Pipe and Electrical Outlet Locations"
below) may be adjusted to meet specific requirements.
• The range may be placed with 0" clearance (flush) at the back wall.

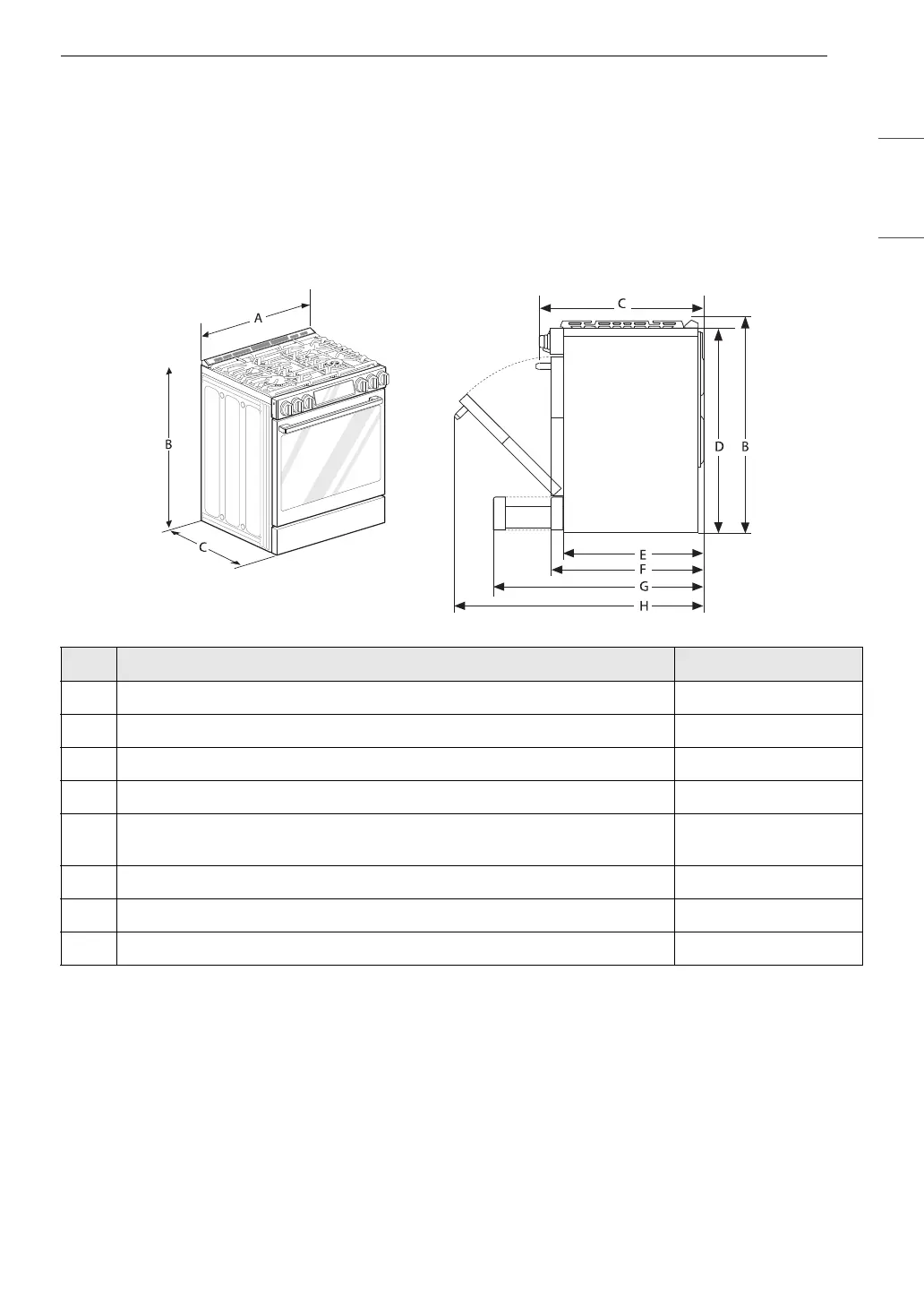

Dimensions
- Dimensions LSDS6338F
AWidth 29 7/8" (758.8 mm)
BHeight 37 1/4" (946 mm)
C Depth (Includes Door Handle) 29 3/8" (745.2 mm)
D Height (Excludes Vent Trim) 36" (913.0 mm)
E Depth (Includes only the product body that is loaded into the cabinet.
Excludes door, drawer, and handles)
24 3/4" (629.4 mm)
F Depth (Excludes Door Handle) 26 7/8" (683 mm)
G Depth when drawer is fully opened 36 1/16" (916.2 mm)
H Depth when door is fully opened 48 5/8" (1235.9 mm)
