APPENDIX

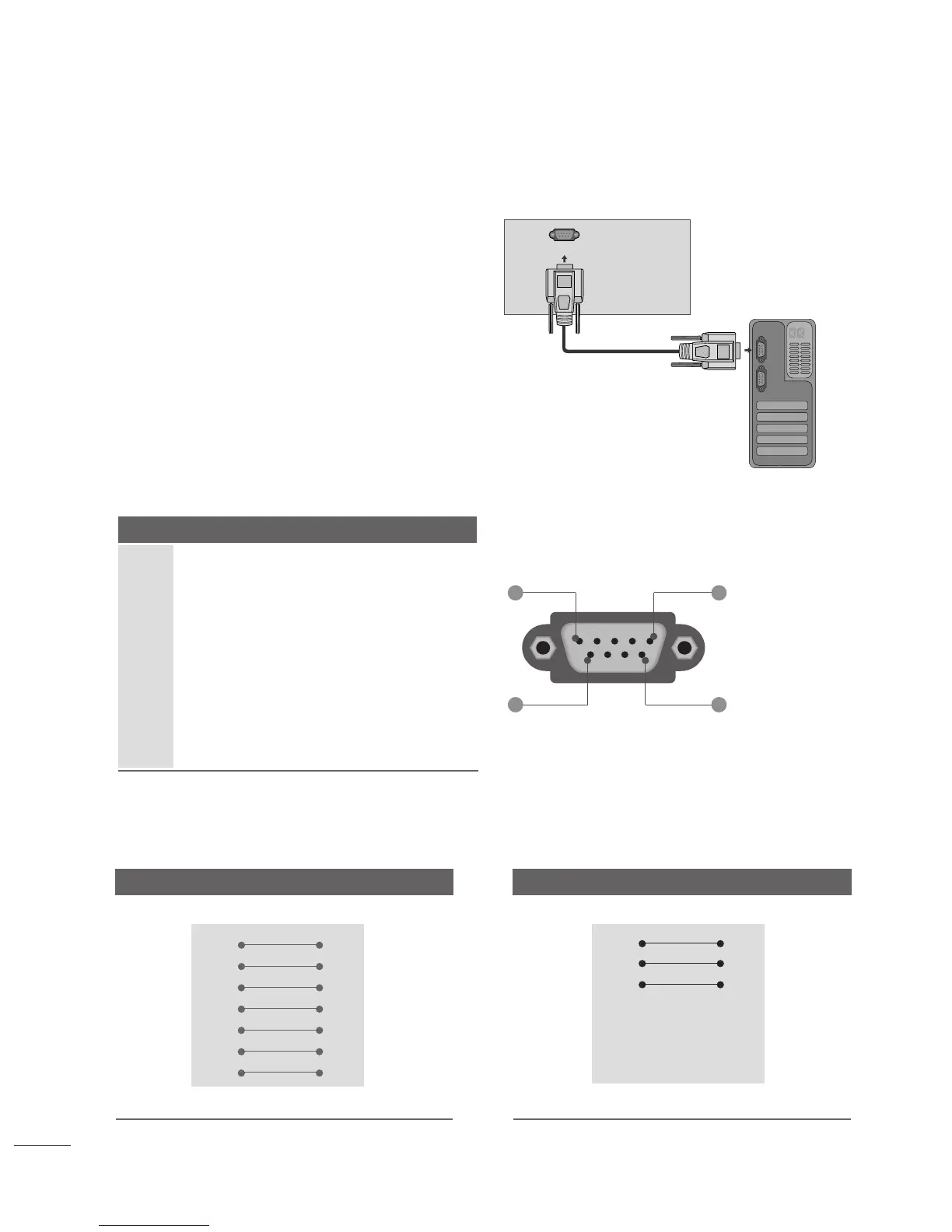

EXTERNAL CONTROL DEVICE SETUP
RS-232C Setup
Connect the RS-232C (serial port) input jack to an exter-
nal control device (such as a computer or an A/V control
system) to control the product’s functions externally.
Connect the serial port of the control device to the RS-
232C jack on the product back panel.
Note: RS-232C connection cables are not supplied with
the product.
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7 RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
RS-232C IN
(CONTROL & SERVICE)
1 5
6 9
RS-232C Configurations
7-Wire Configurations
(
Standard RS-232C cable
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
3-Wire Configurations
(
Not standard
)
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9

LG M2762D Specifications

General

Pixel pitch	0.3114 x 0.3114 mm
Aspect ratio	16:9
Display diagonal	27 \
Separate H/V sync	Yes
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	584.2 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Bandwidth	0.135 GHz
Display viewable area (HxV)	597.7 x 336.2 mm
Display resolution at frequency	1920 x 1080 @ 60 Hz
USB hub version	2.0
RMS rated power	6 W
Certification	TÜV-Typ, CE, UL, CSA, SEMKO, FCC-B
Product color	Black
Market positioning	-
Compliance industry standards	DDC 2B
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	120 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	210 mm
Width (without stand)	654.1 mm
Height (without stand)	494.6 mm
Weight (without stand)	8920 g
