LG M2762D User Manual

22
PREPARATION

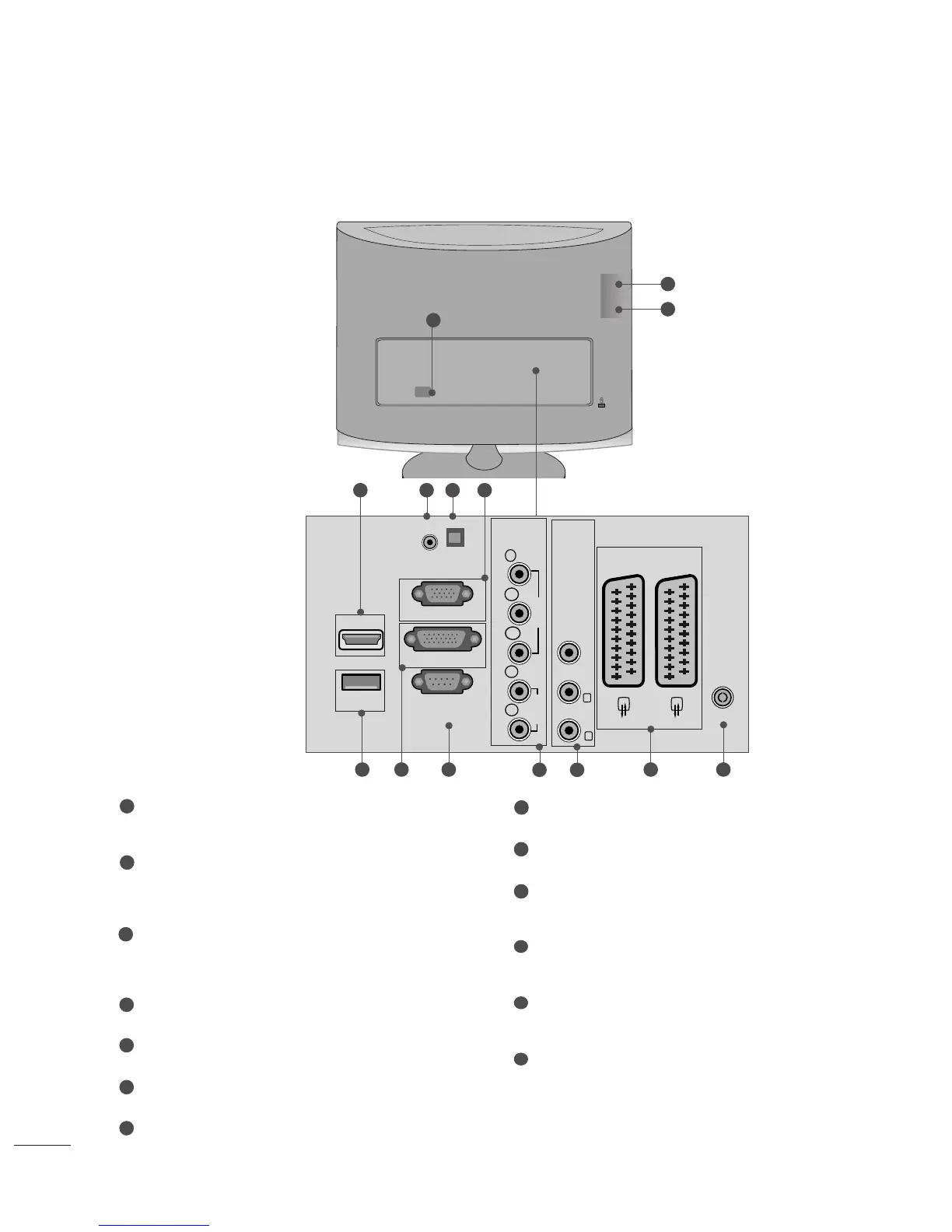

BACK PANEL INFORMATION
PPCCMMCCIIAA ((PPeerrssoonnaall CCoommppuutteerr MMeemmoorryy CCaarrdd
IInntteerrnnaattiioonnaall AAssssoocciiaattiioonn)) CCaarrdd SSlloott
This feature is not available in all countries.
PPoowweerr CCoorrdd SSoocckkeett
This set operates on AC power. The voltage is indicated
on the Specifications page. Never attempt to operate the
set on DC power.
HHDDMMII IInnppuutt ((NNoott SSuuppppoorrtt PPCC))
Connect a HDMI signal to HDMI IN.
Or DVI (VIDEO) signal to HDMI IN with DVI to HDMI
cable.
RRGGBB//DDVVII AAuuddiioo IInnppuutt
Connect the audio from a PC.
OOppttiiccaall DDiiggiittaall AAuuddiioo OOuutt
Connect digital audio from various types of eguipment
RRGGBB IINNPPUUTT ((PPCC))
Connect the output from a PC.
UUSSBB IINN
DDVVII--DD IInnppuutt
Connect the output from a PC.
RRSS--223322CC IINN ((CCOONNTTRROOLL && SSEERRVVIICCEE)) PPOORRTT
Connect to the RS-232C port on a PC.
CCoommppoonneenntt IInnppuutt
Connect a component video/audio device to these
jacks.
AAuuddiioo//VViiddeeoo IInnppuutt
Connect audio/video output from an external device to
these jacks.
EEuurroo SSccaarrtt SSoocckkeett ((AAVV11//AAVV22))
Connect scart socket input or output from an external
device to these jacks.
AAnntteennnnaa IInnppuutt
Connect over-the-air signals to this jack.
1
2
3
4
5
6
7
8
9
10
11
12
13
■
This is a simplified representation of the back panel. The image shown may be somewhat different from your set.
AV 1 AV 2
AC IN
AUDIO IN
(RGB/DVI)
OPTICAL
DIGITAL
AUDIO OUT
VIDEO
COMPONENT
IN
AV IN 3
VIDEO -AUDIO-
(MONO)
AUDIO
Y
P B
P R
L
R
RS-232C IN
(CONTROL & SERVICE)
USB IN
RGB IN (PC)
DVI-D IN (PC)
HDMI IN 1
AV 1
V 1
AV 2
V 2
AC IN
ANTENNA/
CABLE IN
L
R
3
9
10 11
2
1
3
87 1312
64 5

LG M2762D Specifications

General

Pixel pitch	0.3114 x 0.3114 mm
Aspect ratio	16:9
Display diagonal	27 \
Separate H/V sync	Yes
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	584.2 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Bandwidth	0.135 GHz
Display viewable area (HxV)	597.7 x 336.2 mm
Display resolution at frequency	1920 x 1080 @ 60 Hz
USB hub version	2.0
RMS rated power	6 W
Certification	TÜV-Typ, CE, UL, CSA, SEMKO, FCC-B
Product color	Black
Market positioning	-
Compliance industry standards	DDC 2B
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	120 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	210 mm
Width (without stand)	654.1 mm
Height (without stand)	494.6 mm
Weight (without stand)	8920 g
