EXTERNAL EQUIPMENT SETUP

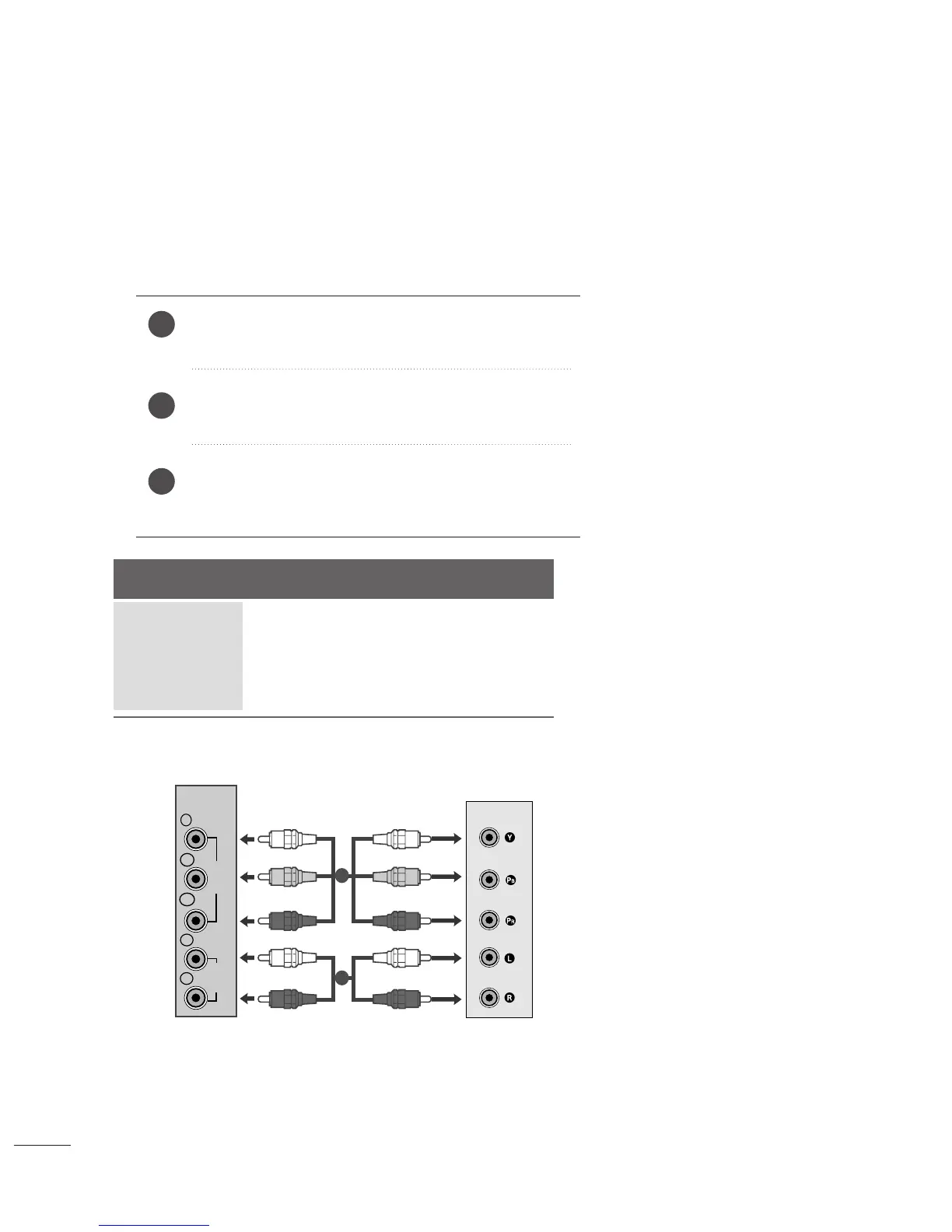

Connect the SET-TOP outputs to the
CCOOMMPPOONNEENNTT IINN
VVIIDDEEOO
sockets (Y P
B PR) on the set.
Connect the audio cable from the SET-TOP to
CCOOMMPPOO--
NNEENNTT IINN AAUUDDIIOO
sockets of the set.
Press the
IINNPPUUTT
button to select
CCoommppoonneenntt..
2
3
1
HD RECEIVER SETUP
■
To prevent the equipment damage, never plug in any power cords until you have finished connecting all equipment.
■
The image shown may be somewhat different from your set.
When connecting with a component cable
Signal
480i/576i
480p/576p
720p/1080i
1080 p
Component
Yes
Yes
Yes
Yes
HDMI
No
Yes
Yes
Yes
VIDEO
COMPONENT
IN
AUDIO
Y
P B
P R
L
R
1
2

LG M2762D Specifications

General

Pixel pitch	0.3114 x 0.3114 mm
Aspect ratio	16:9
Display diagonal	27 \
Separate H/V sync	Yes
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	584.2 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Bandwidth	0.135 GHz
Display viewable area (HxV)	597.7 x 336.2 mm
Display resolution at frequency	1920 x 1080 @ 60 Hz
USB hub version	2.0
RMS rated power	6 W
Certification	TÜV-Typ, CE, UL, CSA, SEMKO, FCC-B
Product color	Black
Market positioning	-
Compliance industry standards	DDC 2B
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	120 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	210 mm
Width (without stand)	654.1 mm
Height (without stand)	494.6 mm
Weight (without stand)	8920 g
