LG M2762D User Manual

1199

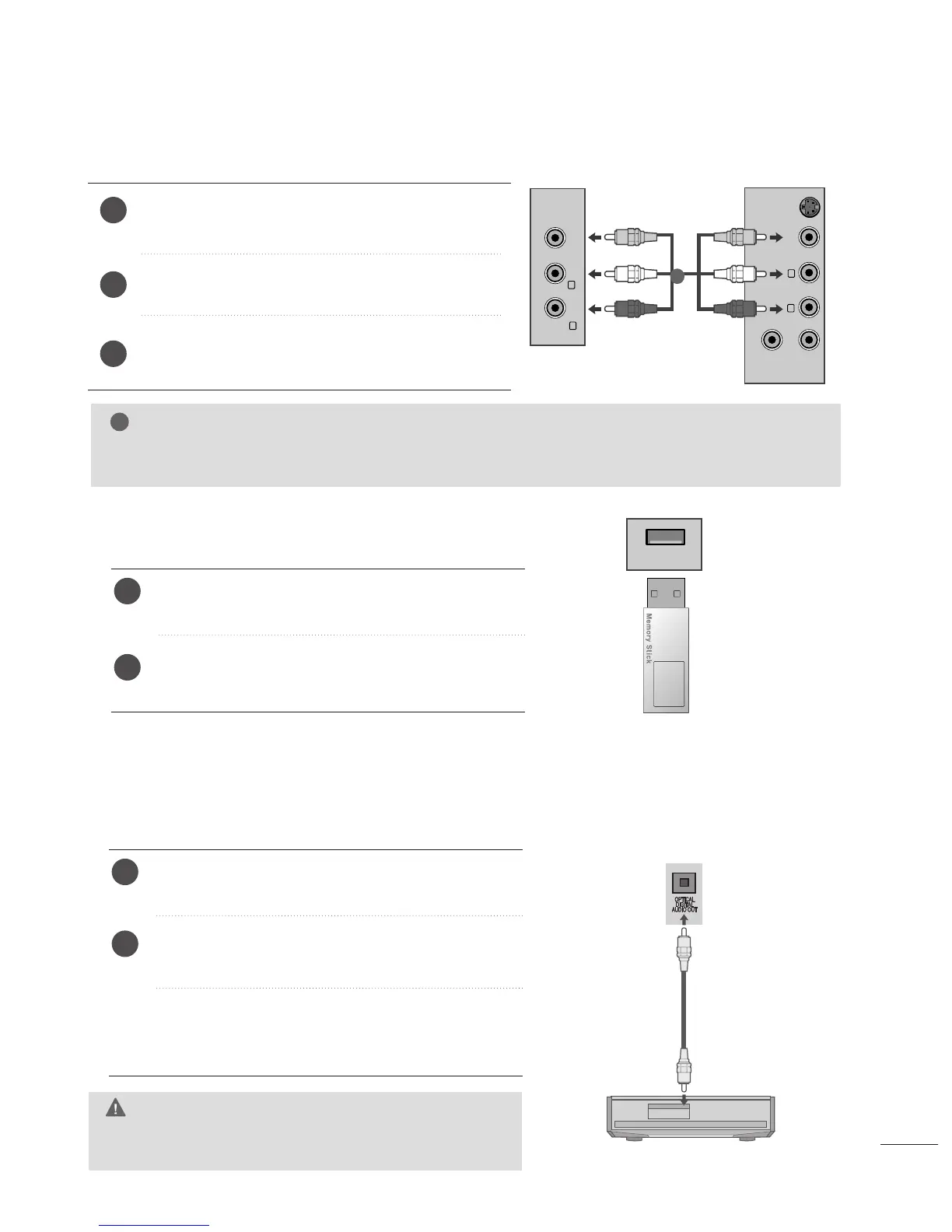

EXTERNAL EQUIPMENT SETUP
WWhheenn ccoonnnneeccttiinngg wwiitthh aa RRCCAA ccaabbllee
Connect the audio/video out sockets of the VCR to
AUDIO/VIDEO in sockets of the set.
Press the INPUT button to select AV3.
Press the PLAY button on the VCR.
The VCR playback picture appears on the screen.
2
3
1
NOTE
!
G
If you have a mono VCR, connect the audio cable from the VCR to the AUDIO L/MONO jack of the set.
VIDEO ANT IN
ANT OUT
S-VIDEO
L
R
AV 1 AV 2
VIDEO AUDIO
(MONO)
L
R
AV-IN 3
1
Connect the USB device to the
UUSSBB IINN
jacks on the
side of set.
After connecting the
UUSSBB IINN
jacks, you use the
UUSSBB
function. (
G
pp..9922
)
2
1
USB SETUP
AV 1 AV 2
USB IN
Connect one end of an optical cable to the TV Digital
Audio
(
Optical
)
Output port.
Connect the other end of the optical cable to the digi-
tal audio
(
Optical
)
input on the audio equipment.
Set the
““TTVV SSppeeaakkeerr ooppttiioonn -- OOffff ””
in the AUDIO
menu.(
G
pp..7711
). Refer to the external audio equipment
instruction manual for operation.
Sending the TV’s audio signal to external audio equipment via the Digital Audio Output (Optical) port.
If you want to enjoy digital broadcasting through 5.1-channel speakers, connect the OPTICAL DIGITAL AUDIO
OUT terminal on the back of TV to a DVD Home Theater (or amp).
2
1
DIGITAL AUDIO OUT SETUP
G
Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION

LG M2762D Specifications

General

Pixel pitch	0.3114 x 0.3114 mm
Aspect ratio	16:9
Display diagonal	27 \
Separate H/V sync	Yes
Vertical scan range	56 - 75 Hz
Horizontal scan range	30 - 83 kHz
Viewable size diagonal	584.2 mm
Viewing angle, vertical	160 °
Contrast ratio (dynamic)	50000:1
Contrast ratio (typical)	1000:1
Viewing angle, horizontal	170 °
Display brightness (typical)	300 cd/m²
Bandwidth	0.135 GHz
Display viewable area (HxV)	597.7 x 336.2 mm
Display resolution at frequency	1920 x 1080 @ 60 Hz
USB hub version	2.0
RMS rated power	6 W
Certification	TÜV-Typ, CE, UL, CSA, SEMKO, FCC-B
Product color	Black
Market positioning	-
Compliance industry standards	DDC 2B
LED indicators	Stand-by
Tilt angle range	-5 - 15 °
Panel mounting interface	100 x 100 mm
Power consumption (standby)	1 W
Power consumption (typical)	120 W
Sustainability certificates	ENERGY STAR

Weight and Dimensions

Depth (without stand)	210 mm
Width (without stand)	654.1 mm
Height (without stand)	494.6 mm
Weight (without stand)	8920 g
