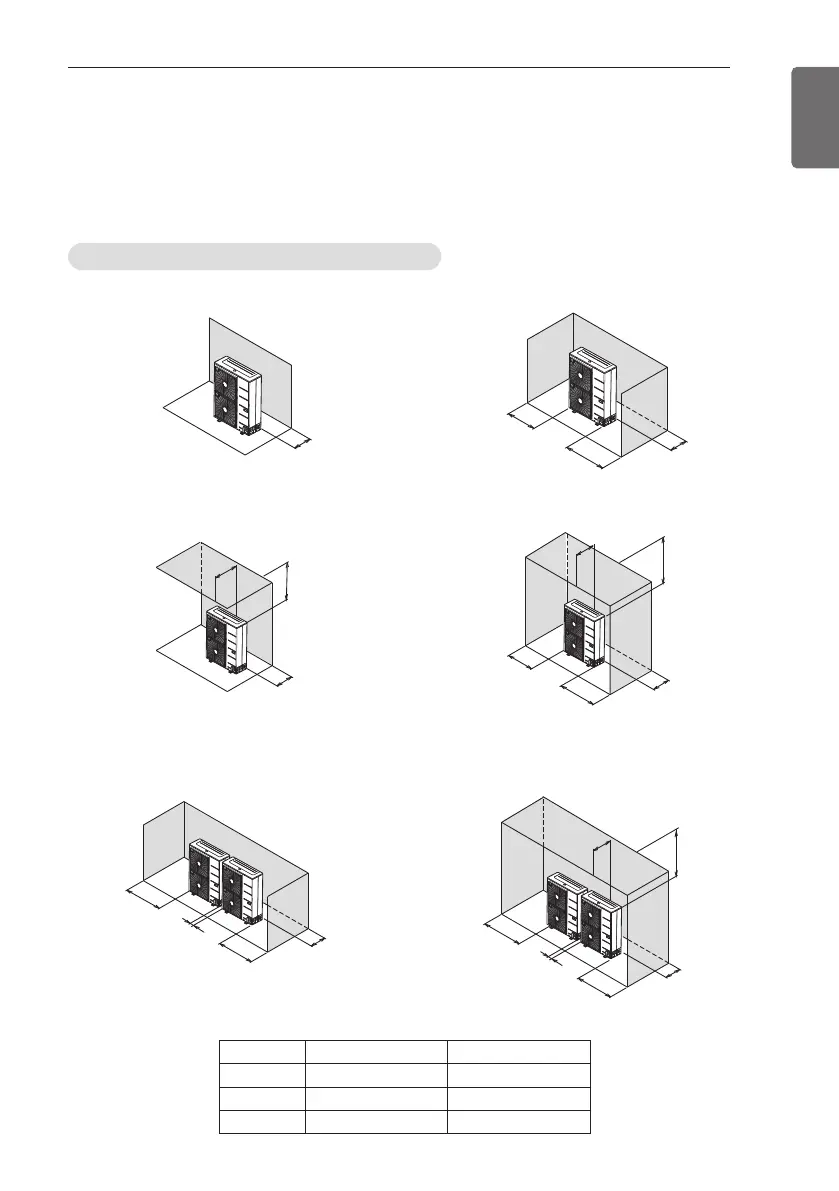

INSTALLATION SPACE
13
ENGLISH
INSTALLATION SPACE
• The following values are the least space for installation. If any service area is needed for service
according to field circumstance, obtain enough service space.
• The unit of values is mm.
In case of obstacles on the suction side
1. Stand alone installation
2. Collective installation
500 or less
more
1 000 or
‘c’ or
more
500 or less
more
1 000 or
150 or
more
150 or
more
‘c’ or
more
100 or
more
100 or
more
‘b’ or
more
100 or
more
200 or
more
1 000 or
more
‘c’ or
more
500 or less
more
1 000 or
100 or
more
1 000 or
more
200 or
more
‘c’ or
more
[Unit:mm]
U3, U4 U7
a 100 200
b 100 300
c 300 350
