PIPE CONNECTIONS BETWEEN INDOOR AND OUTDOOR UNIT
31
ENGLISH

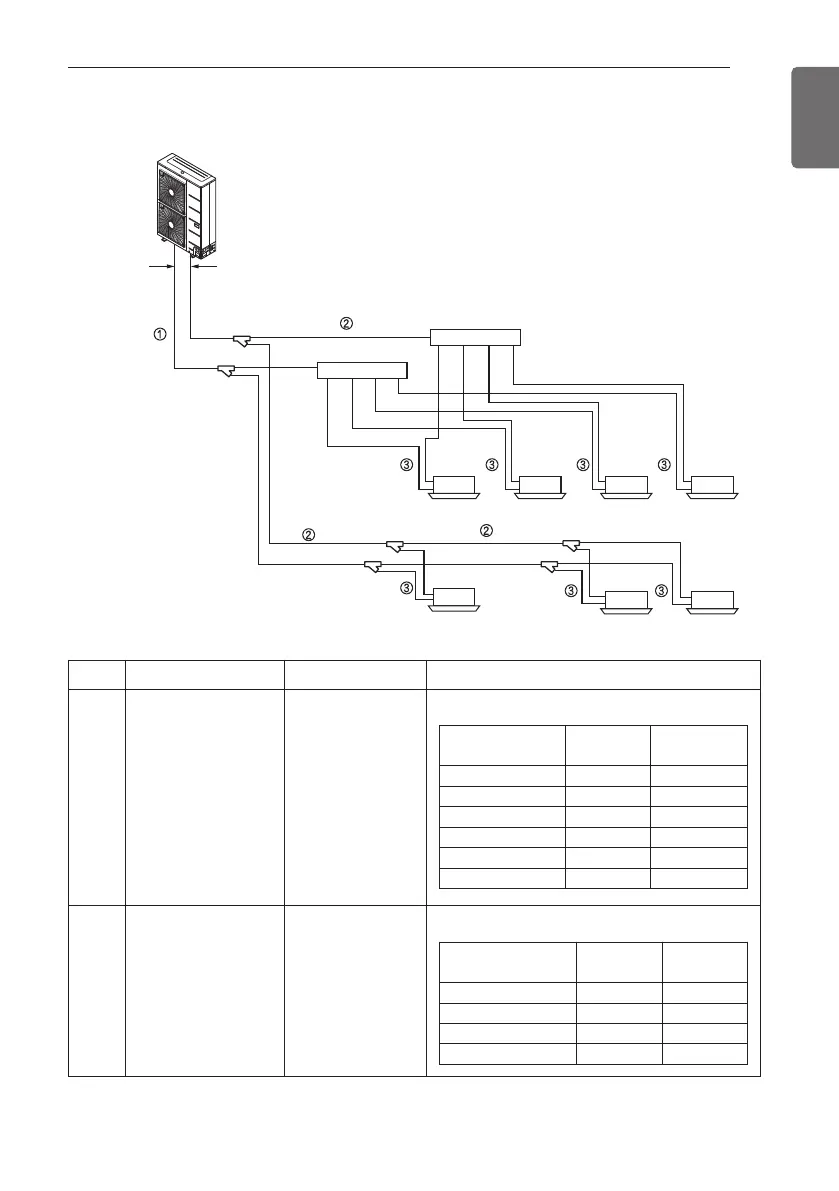

Selection of Refrigerant Piping
Outdoor unit
Gas pipe
Main pipe
Liquid pipe
Branching
pipe
Branching
pipe
Indoor unit
No.
Piping parts Name Selection of pipe size
①
Outdoor unit
↓
1st branching section
Main pipe
Size of main pipe
②
Branching section
↓
Branching section
Branching pipe
Pipe size of between branching sections
Outdoor unit
capacity[HP]
Liquid pipe
[mm(inch)]
Gas pipe
[mm(inch)]
4 Ø 9.52(3/8) Ø 15.88(5/8)
5 Ø 9.52(3/8) Ø 15.88(5/8)
6 Ø 9.52(3/8) Ø 19.05(3/4)
8 Ø 9.52(3/8) Ø 19.05(3/4)
10 Ø 9.52(3/8) Ø 22.2(7/8)
12 Ø 12.7(1/2) Ø 28.58(1 1/8)
Indoor unit
capacity[kW(Btu/h)]
Liquid pipe
[mm(inch)]
Gas pipe
[mm(inch)]
≤ 5.6(19 100)
Ø 6.35(1/4) Ø 12.7(1/2)
< 16.0(54 600) Ø 9.52(3/8) Ø 15.88(5/8)
< 22.4(76 400) Ø 9.52(3/8) Ø 19.05(3/4)
< 36.4(124 200) Ø 9.52(3/8) Ø 22.2(7/8)
