Multi V Ducted Indoor Units
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
WIRING
High-Static Ducted M2 Chassis

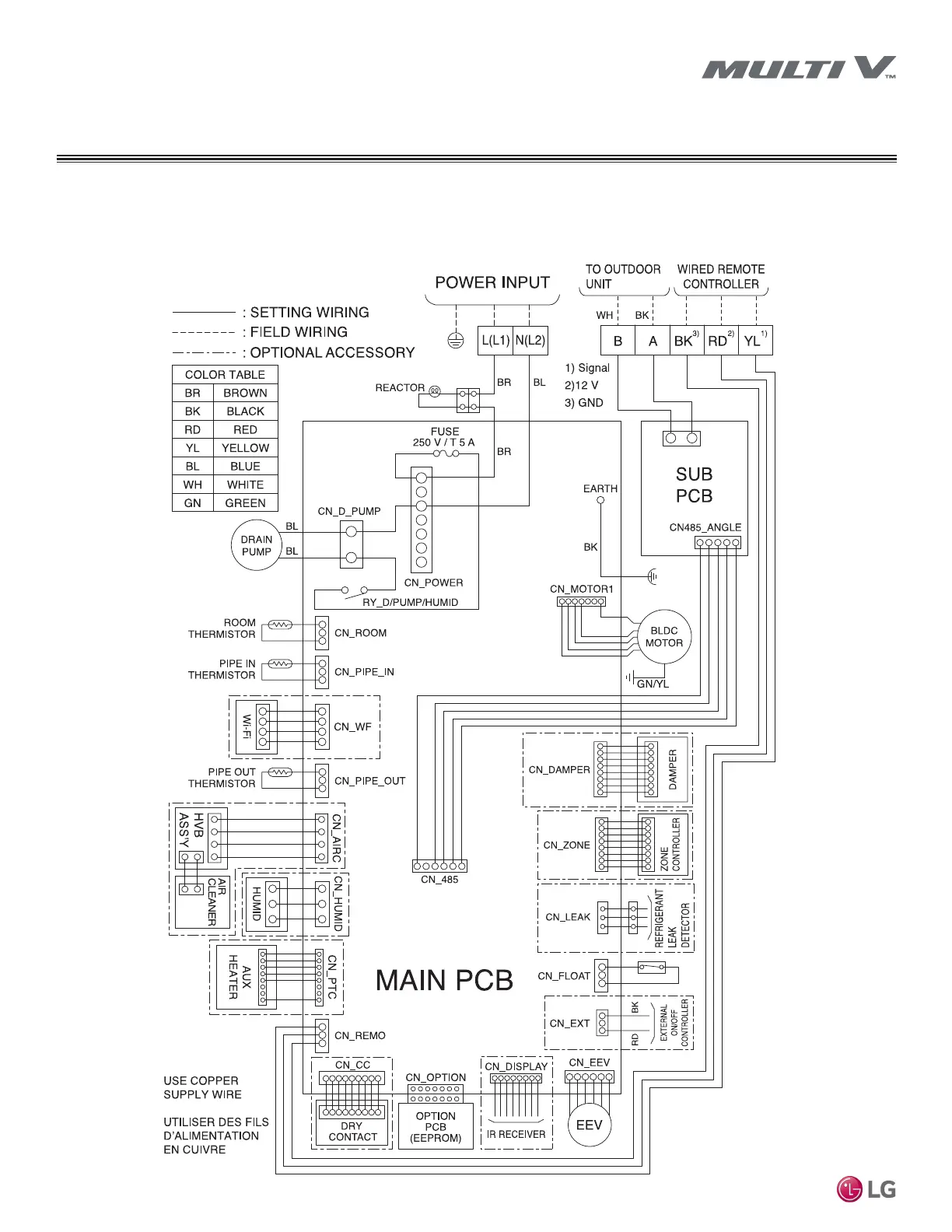

Figure 56: High-Static Ducted M2 Chassis Wiring Diagram
Optional Connections
Figure 56 shows the control board for the M2 chassis. Connect optional equipment to the control board as required for your system.
