8 Indoor Unit
Installation

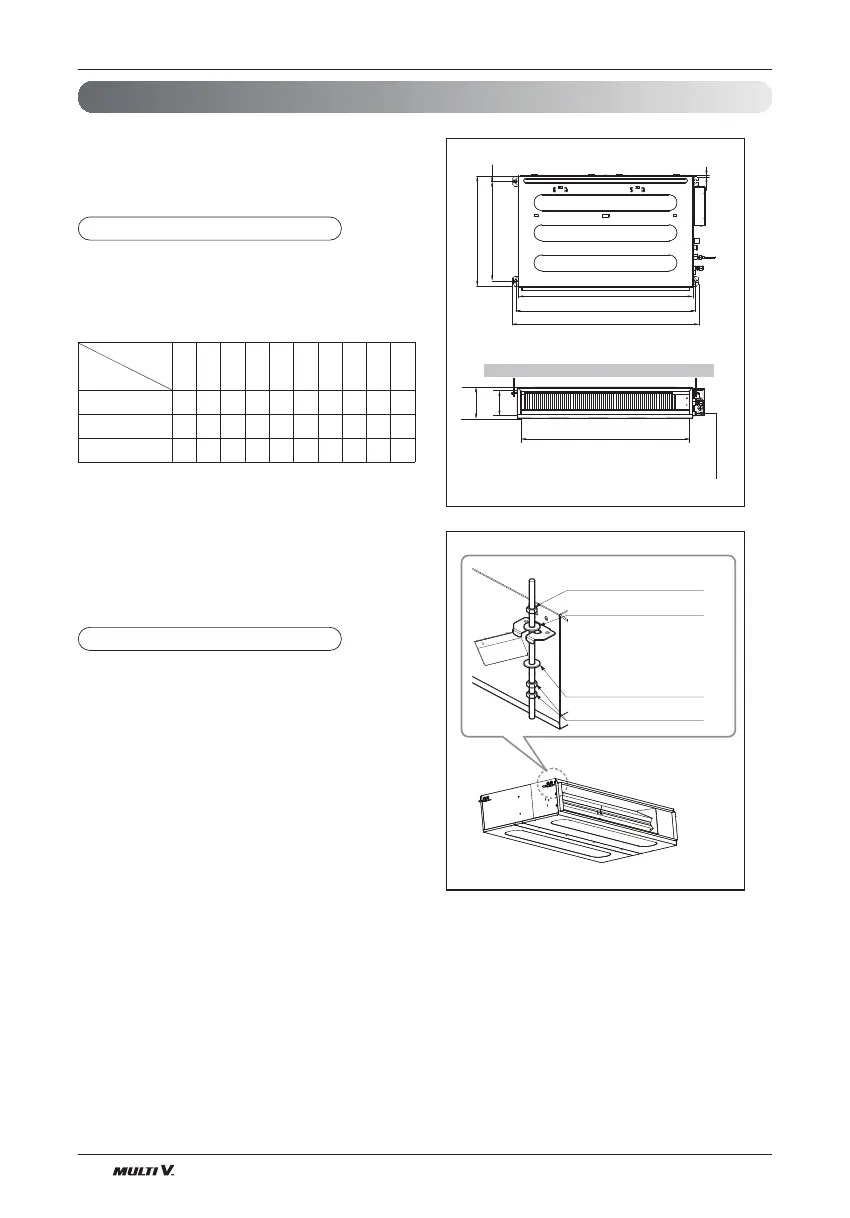

Ceiling opening dimension and hanging bolt location
Installation of Unit
Install the unit above the ceiling correctly.
• Apply a joint-canvas between the unit and duct to absorb
unnecessary vibration.
• Apply a filter Accessory at air return hole.
※ Install the unit leaning to a drainage hole
side as a figure for easy water drainage.
• A place where the unit will be leveled and that can support
the weight of the unit.
• A place where the unit can withstand its vibration.
• A place where service can be easily performed.
POSITION OF SUSPENSION BOLT
(Unit:mm)
M10 Nut
M10 washer
X 4
X 4
M10 Nut
M10 washer
X 4
X 8
C
E
G
D
F
I
A
J
B
H
Drainage hole
POSITION OF CONSOLE BOLT
Dimension
Capacity(kBtu/h)
A B C D E F G H I J
L4
733 772 388 460 36 190 20 660 148 700
L5
933 972 388 460 36 190 20 860 148 900
L6
1 133 1 172 388 460 36 190 20 1 060 148 1 100
