LG MULTI V ARNU09GSBL4 User Manual

Indoor unit
Ceiling Concealed Duct_Built in (Low Static) _ 11
Note :
1. The above table shows the correlation between the air rates and E.S.P.
2. E.S.P. is given after subtracting coil losses motor step factory installed
3. E.S.P. can be higher than the maximum given in the table, but the unit faces the problem of freezing the coil.
ARNU07GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y)
ARNU09GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y)
ARNU12GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y)
ARNU15GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y)
Static Pressure(mmAq(Pa))
Setting Value
0(0) 1(10) 2(20) 3(29) 4(39)
60 6.29 3.03 0.93 - -
65 6.61 4.84 1.52 - -
70 7.69 5.64 2.18 0.79 -
75 8.19 6.28 2.81 0.85 -
80 8.91 7.43 4.96 1.58 -
85 9.51 8.14 5.91 2.75 0.95
90 10.21 8.76 6.79 3.41 1.36
95 10.83 9.62 8.11 5.48 2.61
100 11.31 10.55 9.02 6.12 3.31
105 11.84 11.19 9.99 8.28 5.32
110 12.68 11.88 10.38 9.16 6.92
115 13.19 12.22 11.55 10.21 8.23
(Unit: CMM)

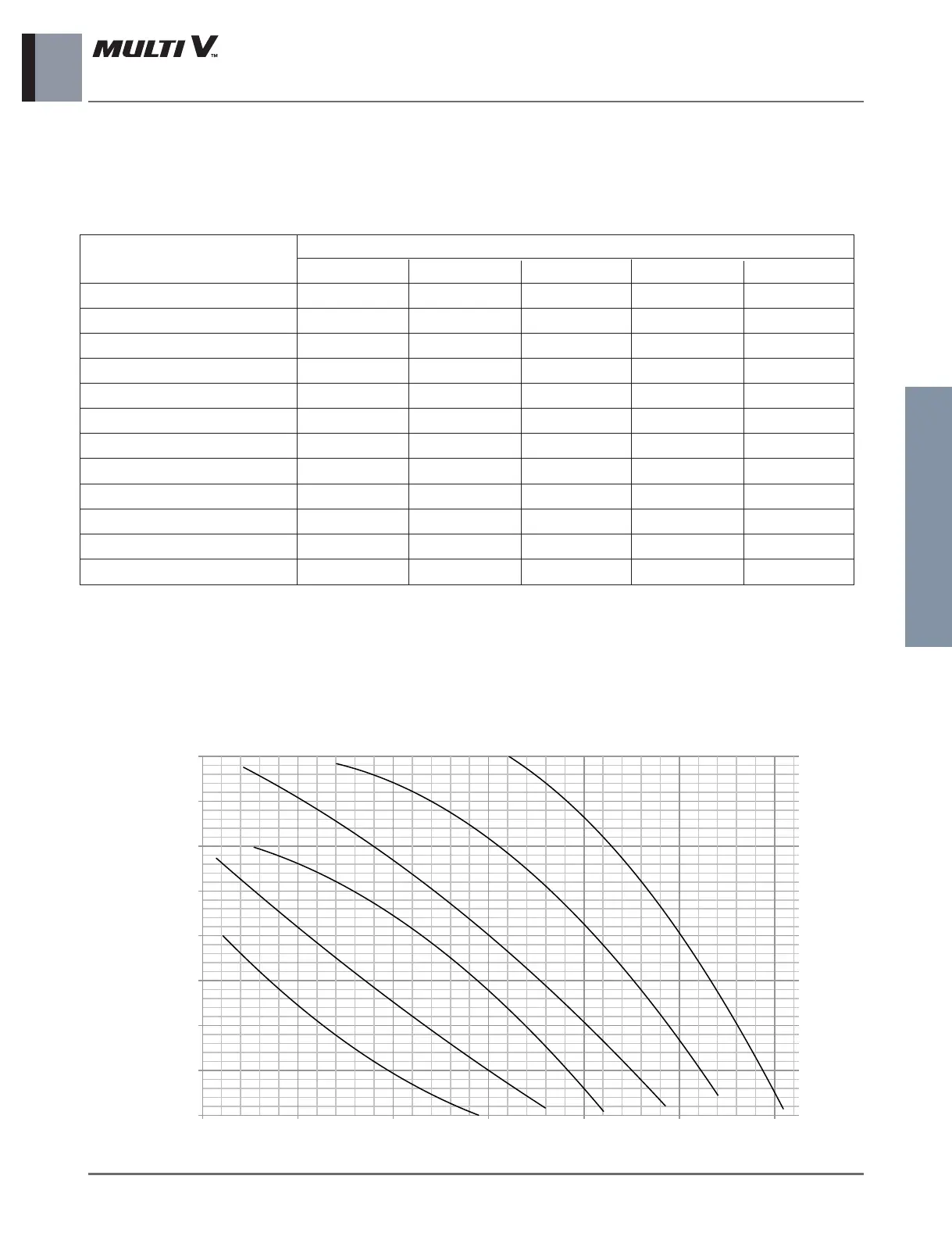

7. External Static Pressure (E.S.P) & Air Flow
Indoor Units
ARNU07GB3G4, ARNU09GB3G4, ARNU12GB3G4, ARNU15GB3G4
Fan Performance
4.0
3.5
3.0
2.5
2.0
1.5
1.0
0.5
0
External Static Pressure(mmAq)
0.50 2.50 4.50 6.50 8.50 10.50 12.50
Air Flow (CMM)
60 SV
70 SV
80 SV
90 SV
100 SV
110 SV
