ARTCOOL (Gallery) _ 5
CONNECTOR NUMBER
LOCATION POINT FUNCTION
CN-POWER AC Power supply AC Power line input for indoor
CN-MOTOR1 Fan motor output Motor output of BLDC
CN-485 Communication Connection between indoor
CN-EEV EEV output EEV control output
CN-UD Step motor Step motor output
CN-LR1 Step motor Step motor output
CN-LR2 Step motor Step motor output
CN-TH1 Room/inlet pipe sensor Room and inlet pipe thermistor
CN-TH2 Outlet pipe sensor Outlet pipe thermistor
CN-REMO Remote controller Remote control line
CN-CC Dry contact Dry contact line
CN-HVB Air clean Air clean control
CN-EXT1 External On/Off External On/Off signal input
CN-LEAK(VI) Refrigerant leak detector Refrigerant leak detector line
SF Chassis

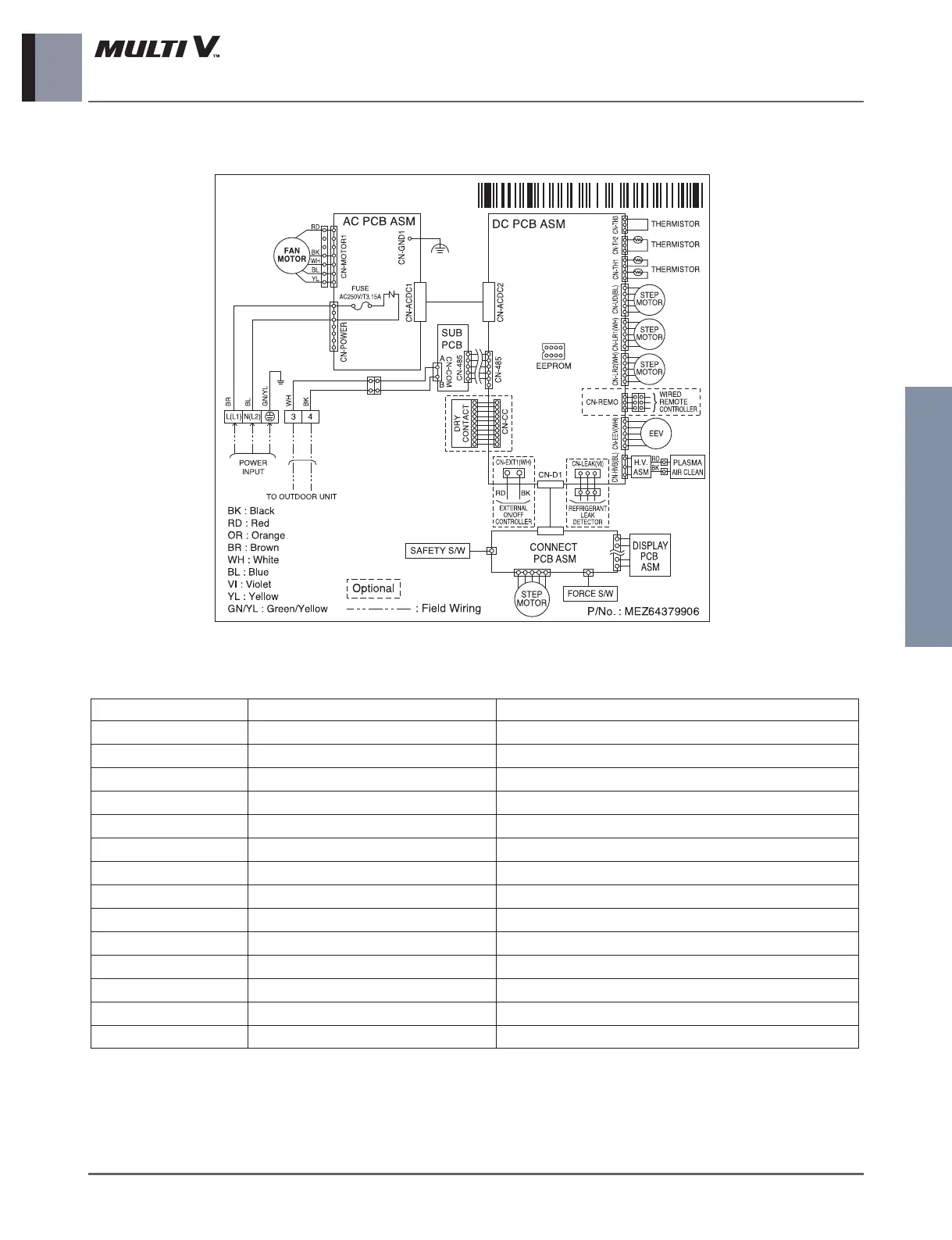

5. Wiring Diagrams
Indoor Units
To Next Page
