LG MULTI V ARNU09GSBL4

Indoor unit
ARTCOOL (Gallery) _ 3
CHASSIS CODE: SF

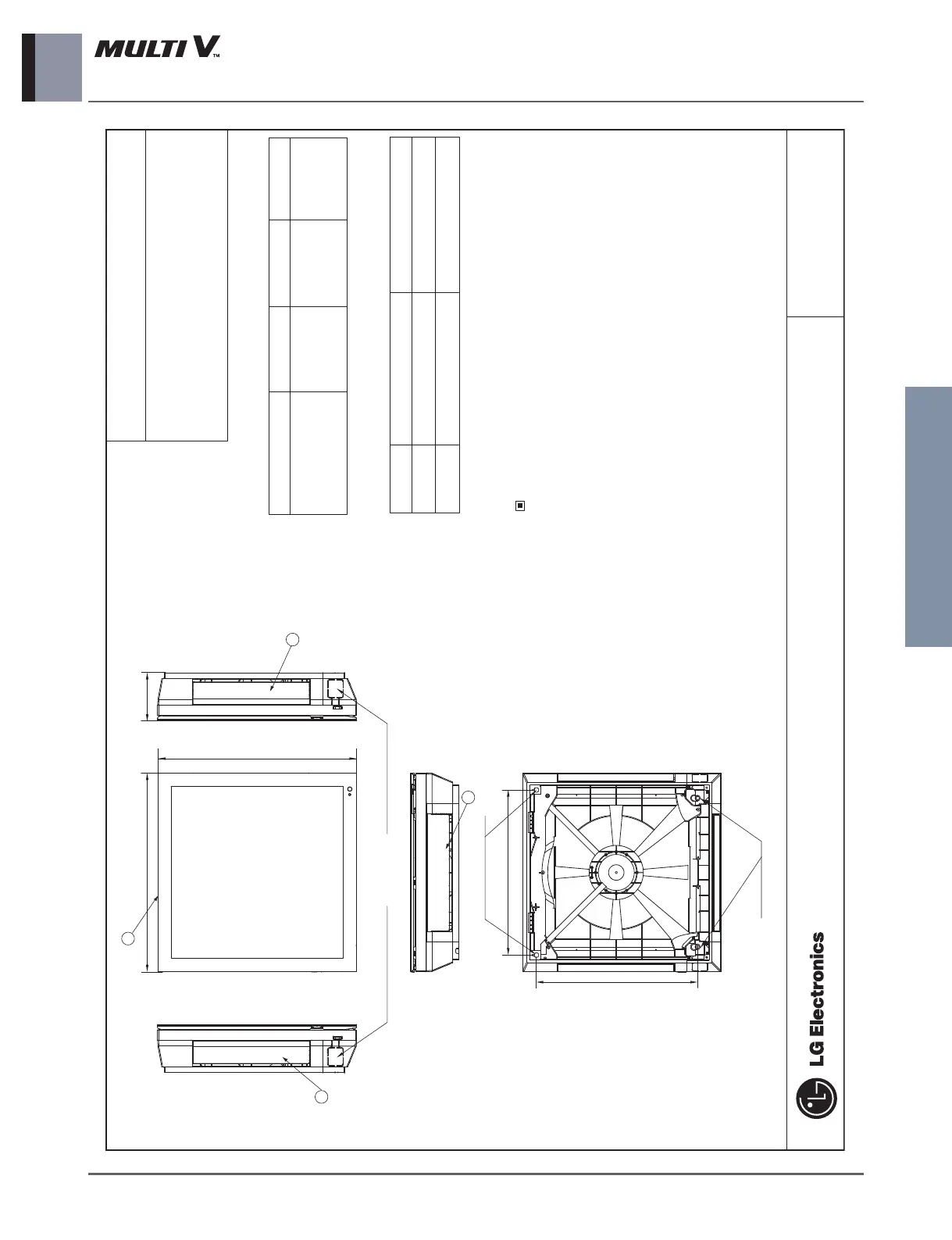

ARTCOOL Gallery
ARNU07GSF14 ARNU09GSF14 ARNU12GSF14
WModel
ARNU07GSF14 ARNU09GSF14 ARNU12GSF14
HD
600 600 146
Note
1. Unit should be installed in compliance with the installation manual in the product box. 2. Unit shall be grounded in accordance with the local regulations or applicable national codes.
(unit : mm)
Pipe Hole
Fix Hole
Hanger Hole
H
W
D
Name
1
Air discharge grill
2
Air suction grill
Number Descripition
(unit : mm)
1
2
1
1
500
525
3. Dimensions
Indoor Units
