Ceiling Concealed Duct_Built in (Low Static) _ 17
9. Sound Levels
Indoor Units

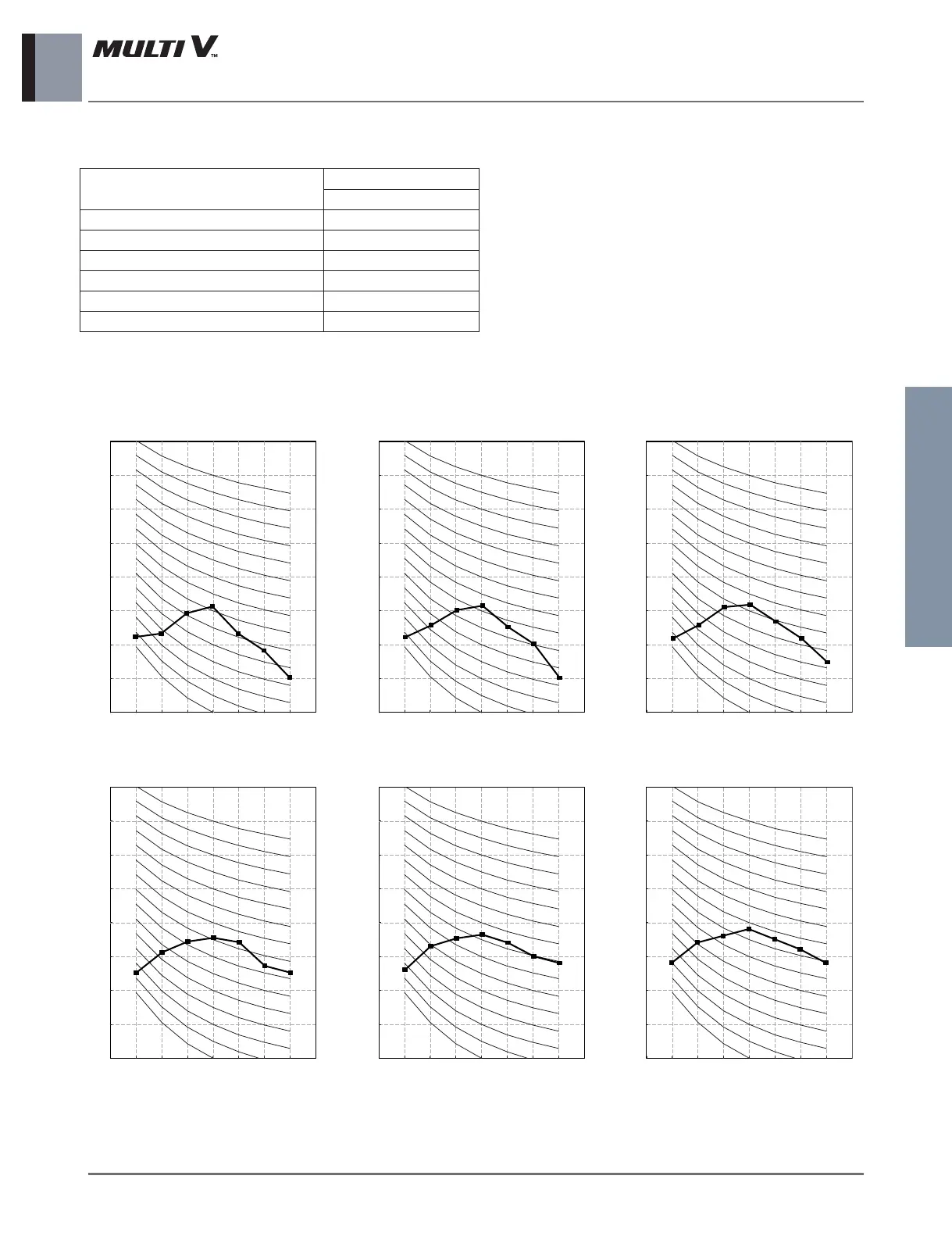

9.2 Sound Power Levels
Notes:
• Data is valid at diffuse field condition
• Data is valid at nominal operating condition
• Sound level can be increased in static pressure mode or
used air guide.
• Sound power level is measured on the rated
condition(external static pressure of standard mode) in
the reverberation rooms.
•
Sound level will vary depending on a range of factors such
as the construction (acoustic absorption coefficient) of par-
ticular room in which the equipment in installed.
• Reference acoustic intensity 0dB = 10E-6μW/m
2
Model
Sound Power Levels dB(A)
High Fan Speed
ARNU07GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y) 53.0
ARNU09GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y) 54.0
ARNU12GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y) 55.0
ARNU15GB3G4+PBSGB30(Acc'y), PBSC30(Acc'y) 60.0
ARNU18GB4G4+PBSGB40(Acc'y), PBSC40(Acc'y) 61.0
ARNU24GB4G4+PBSGB40(Acc'y), PBSC40(Acc'y) 62.0
Octave Band Center Frequency (Hz)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Center Frequency (Hz)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Center Frequency (Hz)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Center Frequency (Hz)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Center Frequency (Hz)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Center Frequency (Hz)
20
30
40
50
60
70
80
90
100
125 250 500 1000 2000 4000 8000
NR-30
NR-35
NR-40
NR-45
NR-50
NR-55
NR-60
NR-65
NR-70
NR-75
NR-80
NR-85
NR-90
Octave Band Sound Power Level (dB = 10E-6μW/m
2
)
Octave Band Sound Power Level (dB = 10E-6μW/m
2
)
Octave Band Sound Power Level (dB = 10E-6μW/m
2
)
Octave Band Sound Power Level (dB = 10E-6μW/m
2
)
Octave Band Sound Power Level (dB = 10E-6μW/m
2
)
Octave Band Sound Power Level (dB = 10E-6μW/m
2
)
ARNU07GB3G4+PBSGB30
(Acc'y), PBSC30(Acc'y)
ARNU09GB3G4+PBSGB30
(Acc'y), PBSC30(Acc'y)
ARNU12GB3G4+PBSGB30
(Acc'y), PBSC30(Acc'y)
ARNU15GB3G4+PBSGB30
(Acc'y), PBSC30(Acc'y)
ARNU18GB4G4+PBSGB40
(Acc'y), PBSC40(Acc'y)
ARNU24GB4G4+PBSGB40
(Acc'y), PBSC40(Acc'y)
