Electrical Wiring

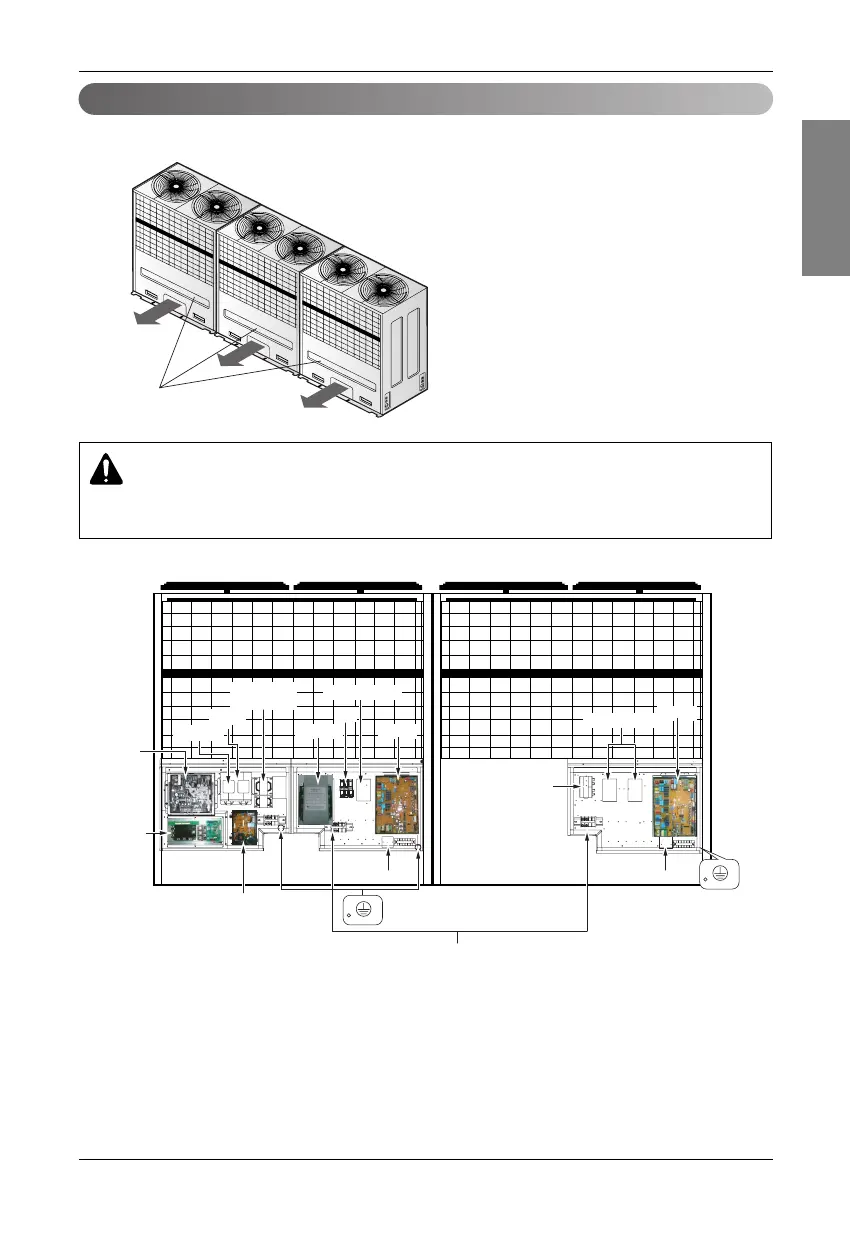

Control box and connecting position of wiring
- Remove all of the screws on front panel, and remove the front panel by pulling it forward.
- Connect transmission line between main and sub
outdoor unit through the terminal block.
- Connect transmission lines between outdoor unit
and indoor/HR units through the terminal block.
- When the central control system is connected to the
outdoor unit, a dedicated PCB must be connected
between them.
- When connecting transmission line between out-
door unit and indoor/HR units with shielded wire,
connect the shield ground to the earth screw.
WARNING
The temperature sensor for outdoor air should not be exposed to direct sunlight.
- Provide an appropriate cover to intercept direct sunlight.
Front Panel
Noise Filter
Magnetic contactor
Main PCB
Magnetic contactor
Sub PCB
Fuse
Reactor
(Inverter Comp.)
Interter
Board
Capacitor
Cover
Heatsink
(Inverter Comp
Driver)
Control board for inverter fan
Transformer
Transformer
Connect the ground line of
distribution panel here.
Capacitor
Ground Terminal
for Transmission
Line Shield
Take care of the phase sequence of
3-phase 4-wire power system.
Main unit Sub unit
