18 Outdoor Unit
Installation
Installation

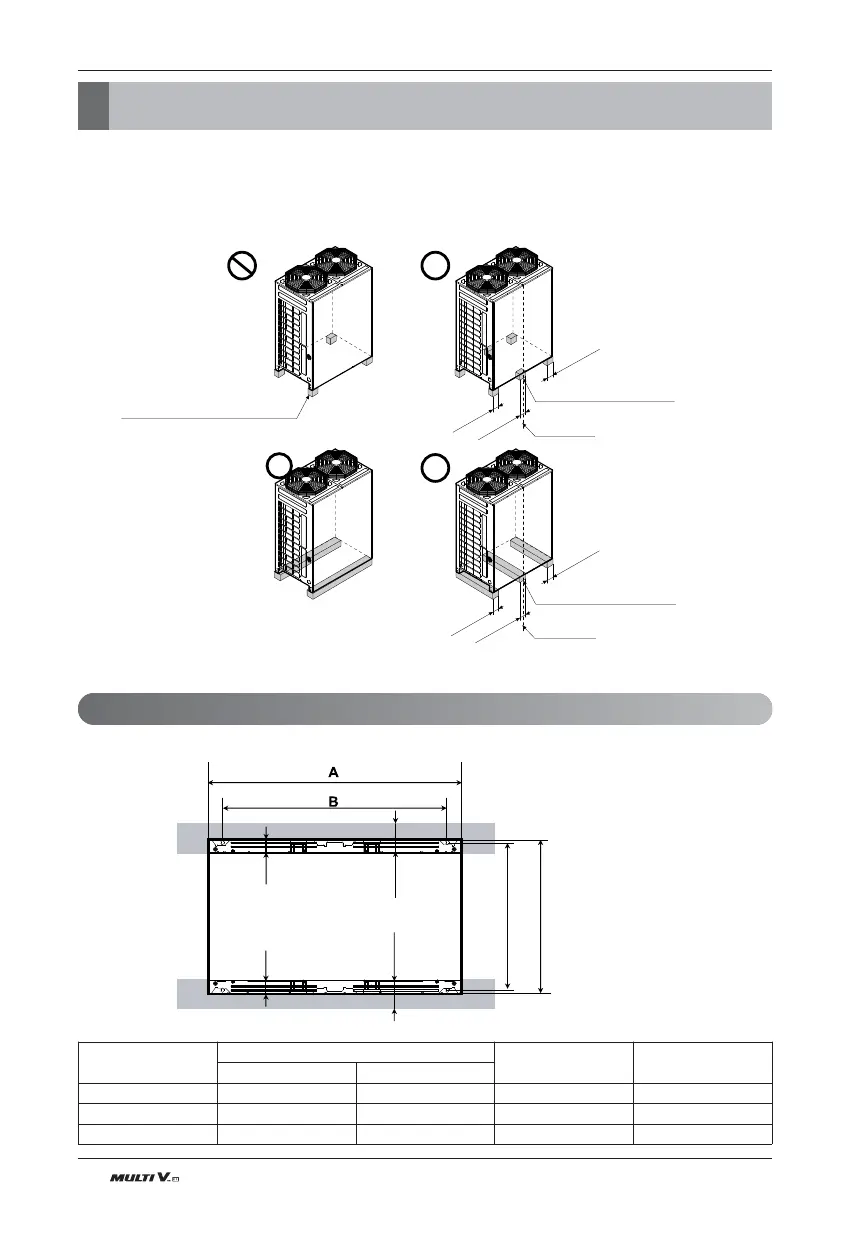

The location of the Anchor bolts
• Install at places where it can endure the weight and vibration/noise of the outdoor unit.
• The outdoor unit supports at the bottom shall have width of at least 100mm under the unit°Øs legs before being fixed.
• The outdoor unit supports should have minimum height of 200mm.
• Anchor bolts must be inserted at least 75mm.
At least 100mm
At least 100mm
At least 100mm
At least 100mm
At least 100mm
At least 100mm
Needed for outdoor units of 23kW or above
Center of the Unit
For outdoor units of 23kW or
above should not be supported
only by the corner supports.
Outdoor units of 14.5, 16kW
can be supported only by the
corner supports.
Needed for outdoor units of 23kW or above
Center of the Unit
730
760
6565
Unit : mm
At least 65At least 65
Chassis
Outdoor Unit Capacity
A(mm) B(mm)
H/P C/O
UX1 6~8HP 620 497
UX2 8~12HP 10~14HP 920 792
UX3 14~20HP 16~20HP 1240 1102
