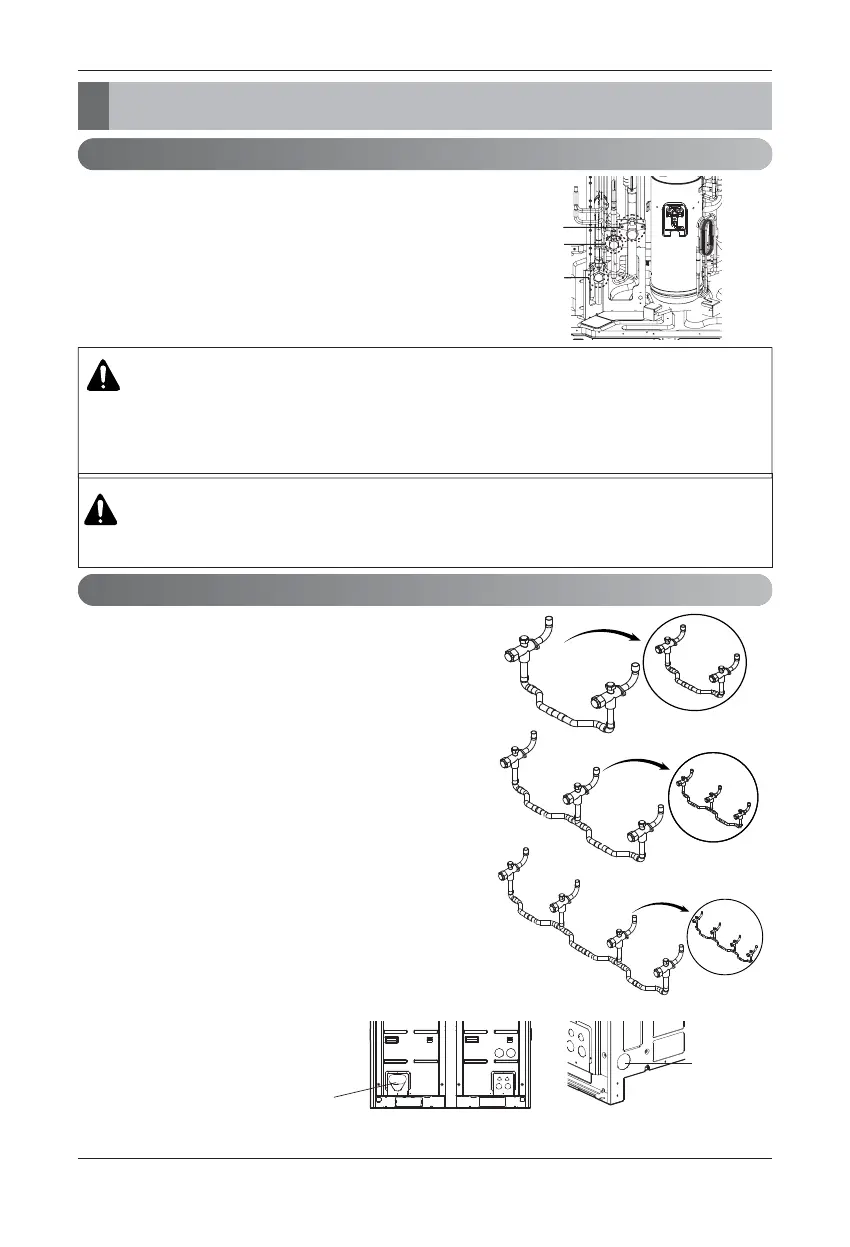

Installation Manual 23
Precautions on Pipe connection / Valve operation
Refrigerant piping installation
Refrigerant piping installation
1. For High Low Pressure Common Pipe, use provided elbows to
connect between the outdoor units using pipes.
2. During the cutting of the pipes, remove burr, foreign substances
before connecting. Otherwise, the unit may not operate because
of the sludge inside the pipe.
3. Apply Nitrogen Gas of pressure until 3.8MPa(38.7kgf/cm
2
) for
work area leakage test.
4. After the degree of a vacuum reaches 5 torr, continue the
vacuuming work for more than 1 hour.
5. Open the side pole with hexagonal wrench.
Installing 2 units
Installing 3 units
Installing 4 units
Pipe connection is done by connecting from the end of the pipe to the
branching pipes, and the refrigerant pipe coming out of the outdoor
unit is divided at the end to connect to each indoor unit. Flare
connection for the indoor unit, and welding connection for the outdoor
pipe and the branching parts.
• Use hexagonal wrench to open/close the valve.
h When connecting to high low pressure
common pipe, connect pipes using
connecting elbows.
Detach knock outs according
the usages.
Detach
knock outs
according
the usages.
Installing on the front side Installing on the side(Limited to high
low pressure common pipe)
WARNING
• Always careful not to leak the refrigerant during welding.
• The refrigerant generates poisonous gas harmful to human body if combusted.
• Do not perform welding in a closed space.
• Be sure to close the cap of the service port to prevent gas leakage after the work.
CAUTION
Please block the pipe knock outs of the front and side panels after installing the pipes.
(Animals or foreign objects may be brought in to damage the cables.)
High Low Pressure Common Pipe Connections
To Next Page
