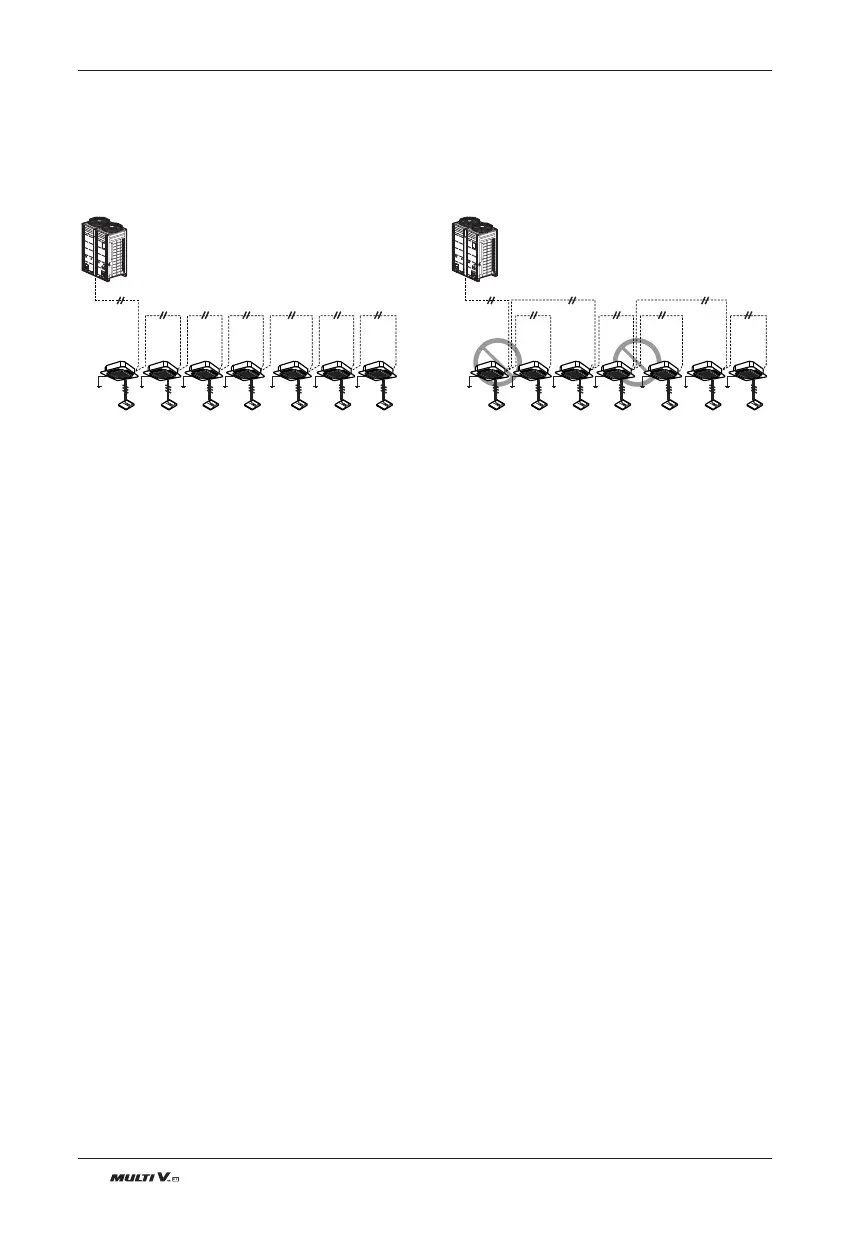

u Example Connection of Communication Cable
[BUS type] [STAR type]
• Connection of communication cable must be
installed like below figure between indoor unit to
outdoor unit.
• Abnormal operation can be caused by
communication defect, when connection of
communication cable is installed like below
figure(STAR type).
Electrical Wiring
To Next Page
