37
Product Data
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
ARUN144BTE4, ARUN168BTE4 460V

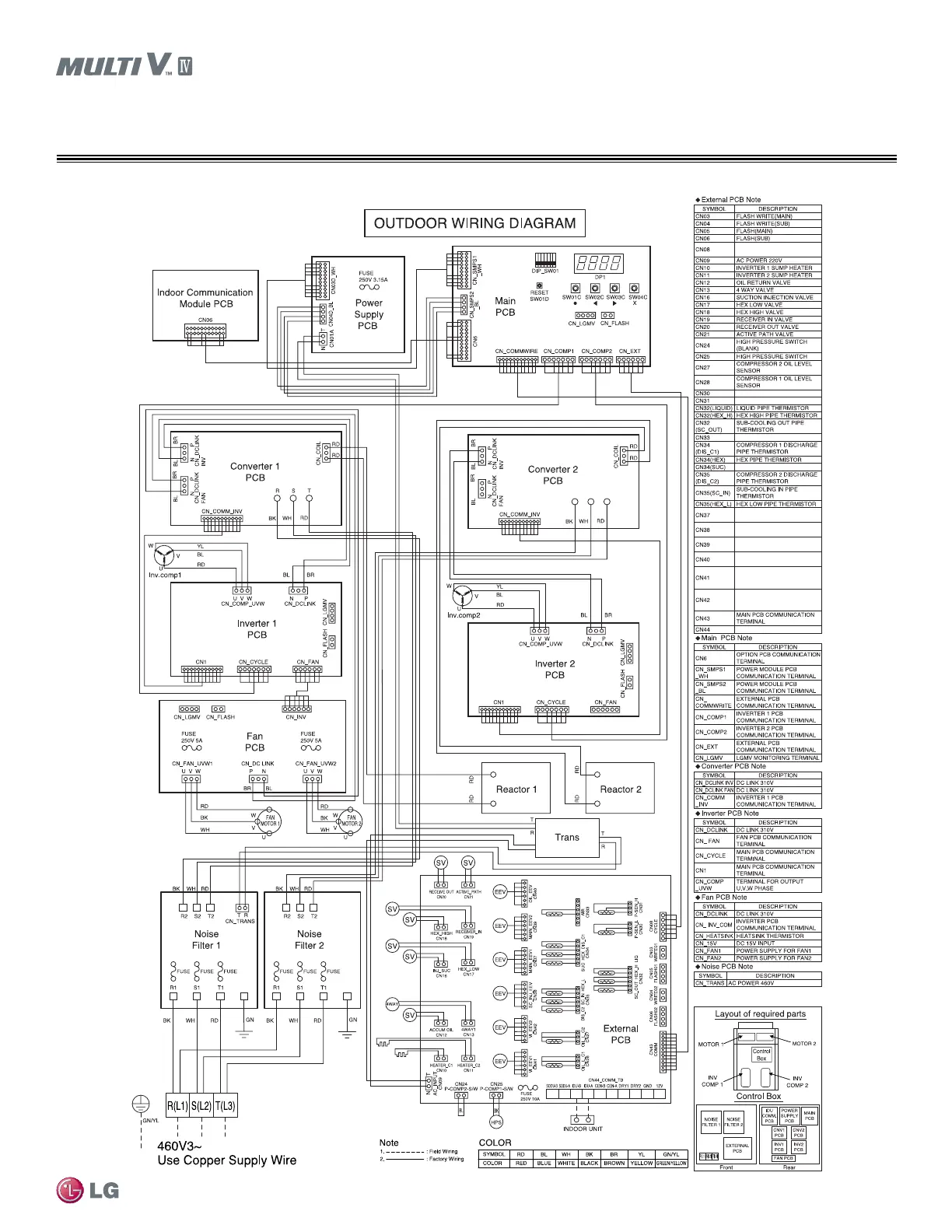

HEAT PUMP WIRING DIAGRAMS
MAIN PCB COMMUNICATION
TERMINAL
LOW PRESSURE SENSOR
HIGH PRESSURE SENSOR
OIL BALANCE ELECTRONIC
EXPANSION VALVE
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 1
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 2
OUTDOOR AIR THERMISTOR
SUCTION PIPE THERMISTOR
SUB-COOLING ELECTRONIC
EXPANSION VALVE
MAIN ELECTRONIC
EXPANSION VALVE 1
MAIN ELECTRONIC
EXPANSION VALVE 2
TERMINAL BLOCK
To Next Page
