Installation
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Pipe Sizing for Heat Pump Systems
REFRIGERANT PIPING DESIGN
The following is an example of manual pipe size calculations. Designers are highly encouraged to use LATS instead of manual calculations.

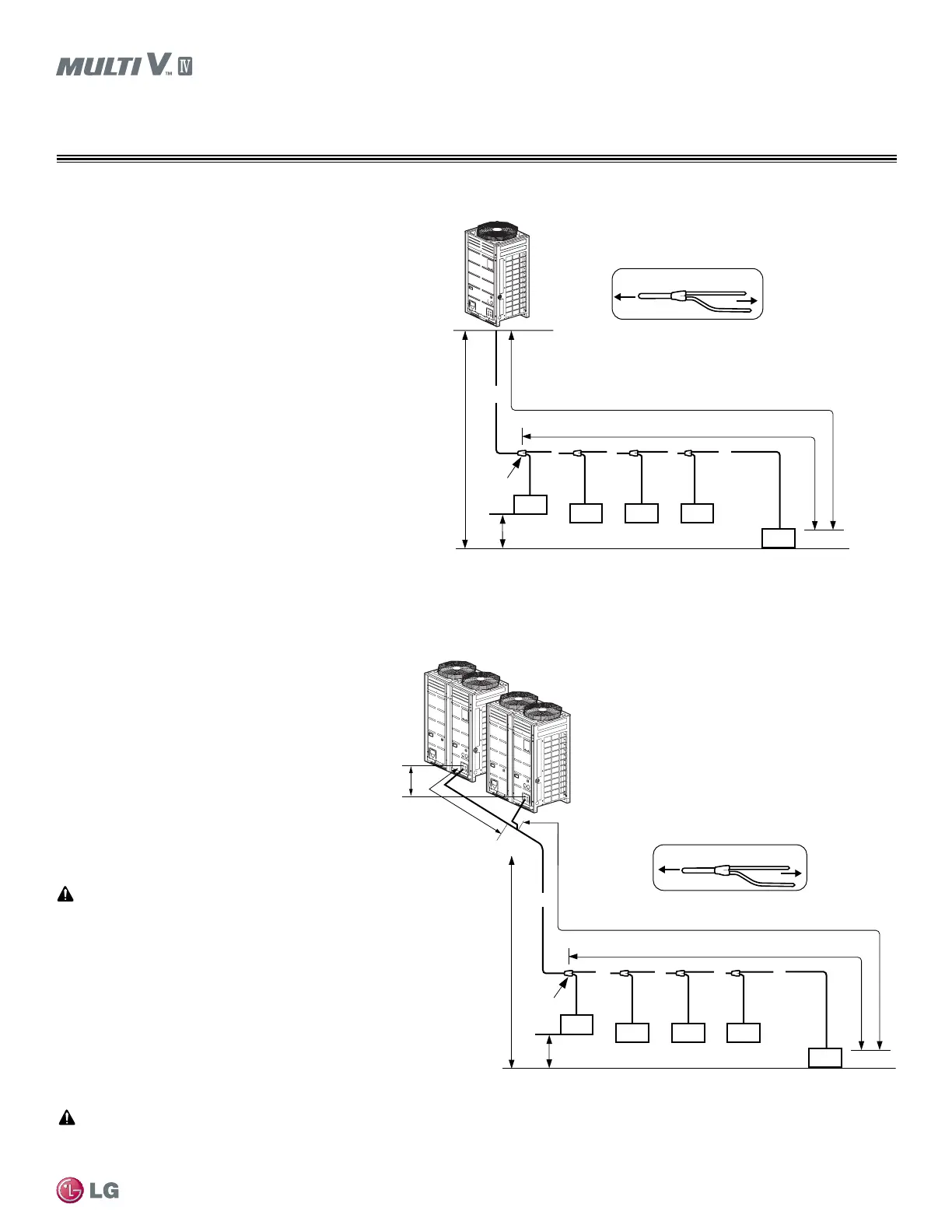

Y-branch Pipe Sizing for a Single Outdoor Unit System
Example: Five (5) indoor units connected
ODU: Outdoor Units.
IDU: Indoor Units.
A: Main Pipe from Outdoor Unit to Y-branch.
B: Y-branch to Y-branch.
C: Y-branch to Indoor Unit.
Y-branch Pipe Sizing When Installing a Dual-Frame System
Example: Five (5) indoor units connected
ODU: Outdoor Units.
IDU: Indoor Units.
A: Main Pipe from Outdoor Unit to Y-branch.
B: Y-branch to Y-branch.
C: Y-branch to Indoor Unit.
• Larger-capacity outdoor units must be the master in a
multi-frame system.
• Single-compressor outdoor units (72,000 Btu/h capacity)
cannot be the master outdoor unit in a multi-frame system.
• Master outdoor unit capacity must be greater than or equal
to the slave outdoor unit capacity.
See pages 109-110 for refrigerant pipe diameter and pipe length tables.
Length: ≤492 feet (656 feet conditional application)
Elevation1: ≤361 feet
ℓ:
≤131 feet (295 feet conditional application)
Elevation2: ≤131 feet
To indoor units
To
outdoor unit
B
B
B
A
C
C
C
C
C
Y-branch
Y-branch
IDU
IDU
IDU
IDU
IDU
Master ODU
Slave ODU
To indoor units
≤33 feet
Elevation1: ≤361 feet
Elevation2: ≤131 feet
To
outdoor
unit
C
CC
CB
BB
Length: ≤492 feet (656 feet conditional application)
ℓ:
≤131 feet (295 feet conditional application)
≤16-7/16 feet
Y-branch
A
Y-branch
C
IDU
IDU
IDU IDU
IDU
