88
MULTI V IV System Installation Manual
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
Capacity (ton)
Shipping Weight
(lbs.)
Net Weight (lbs.)
6 452 430
8 573 540
10 573 540
12 661 628
14 661 628
INSTALLATION
Transporting / Lifting the Outdoor Unit
Transporting / Lifting
• When lifting the unit, use lifting straps and place around the unit as shown below.
• Always lift the unit using properly sized lifting straps rated to carry the unit weight.
• Ensure the straps are long enough to maintain a maximum of a 40° angle as shown at “A”.

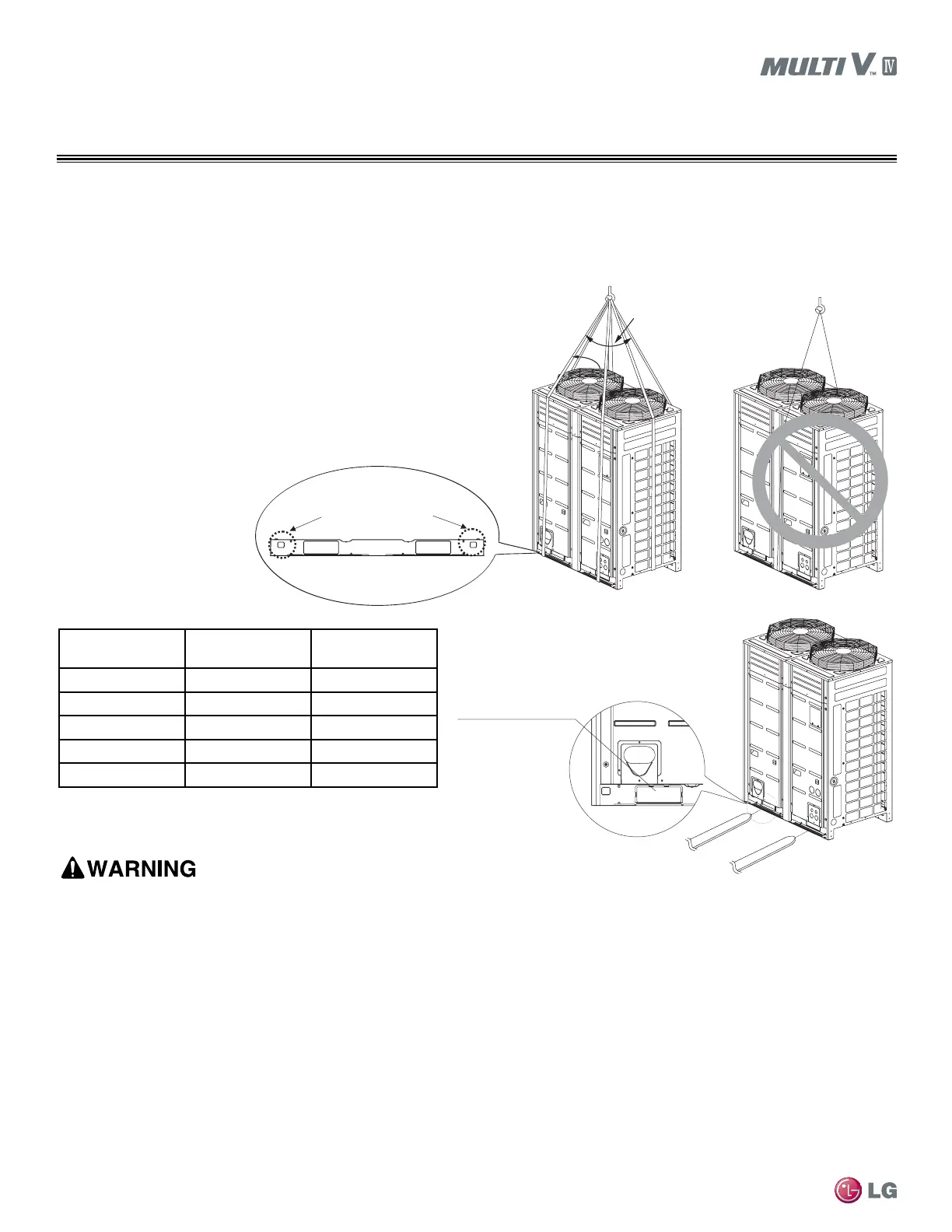

Figure 1: Transporting the Outdoor Unit.
Table 21: Multi V IV Shipping and Net Weights.
• Use appropriate moving equipment to transport each frame; ensure the equipment is capable of supporting the weights listed
above.
• Wear protective gloves when handling equipment. Sharp edges may cause personal injury.
• Some products include polypropylene bands around the unit for packaging. Do not use polypropylene bands to lift the unit.
• Tear apart and throw away plastic packaging bags so that children may not play with them and risk suffocation and death.
• Lift the outdoor unit from the base at specified locations. Support the outdoor unit at a minimum of six (6) points to avoid slippage
from the rigging apparatus.
• Do not drop the unit when carrying it with a forklift.
• Use a minimum of three (3) lifting straps.
• Place a protective cloth or other soft material at the locations where the casing comes in contact with the lifting straps to prevent
damage to painted surfaces.
• Always know where the unit’s center of gravity is before lifting. Hoist the unit with the center of gravity centered among the lifting
straps.
• Caution when using forklift to transport an unpackaged unit. Consider the unit’s center of gravity when lifting. Protect the painted
surfaces as necessary to prevent damage to the unit finish.
Access holes for
transportation ropes
Access hole for forklift
A
A
A: ≤40°
