ARUB096BTE4, ARUB121BTE4 208-230V

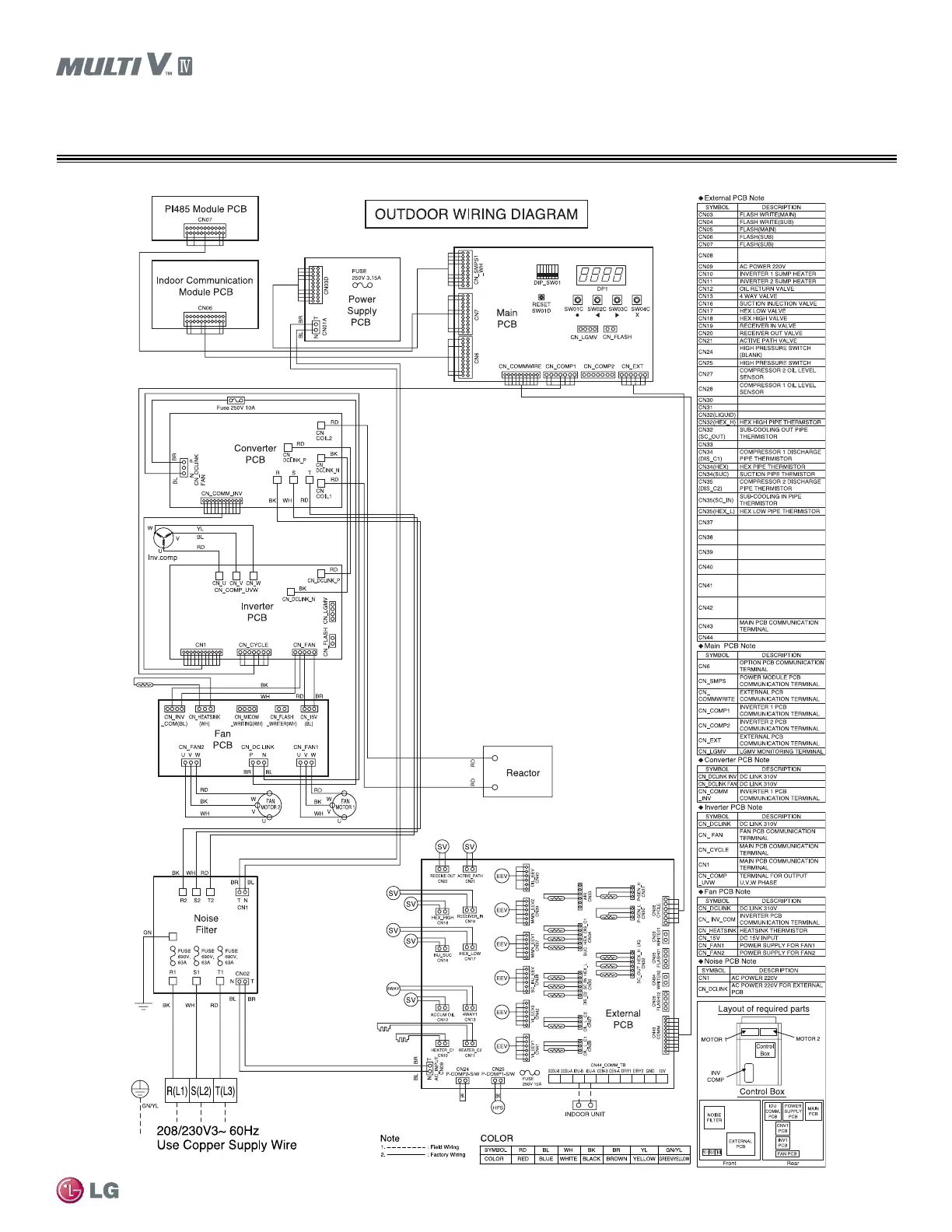

HEAT RECOVERY WIRING DIAGRAMS
LOW PRESSURE SENSOR
HIGH PRESSURE SENSOR
LIQUID PIPE THERMISTOR
OUTDOOR AIR THERMISTOR
MAIN ELECTRONIC
EXPANSION VALVE 1
SUB-COOLING ELECTRONIC
EXPANSION VALVE
MAIN ELECTRONIC EXPANSION
VALV E 2
OIL BALANCE ELECTRONIC
EXPANSION VALVE
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 1
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 2
TERMINAL BLOCK
MAIN PCB COMMUNICATION
TERMINAL
