MULTI V IV System Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

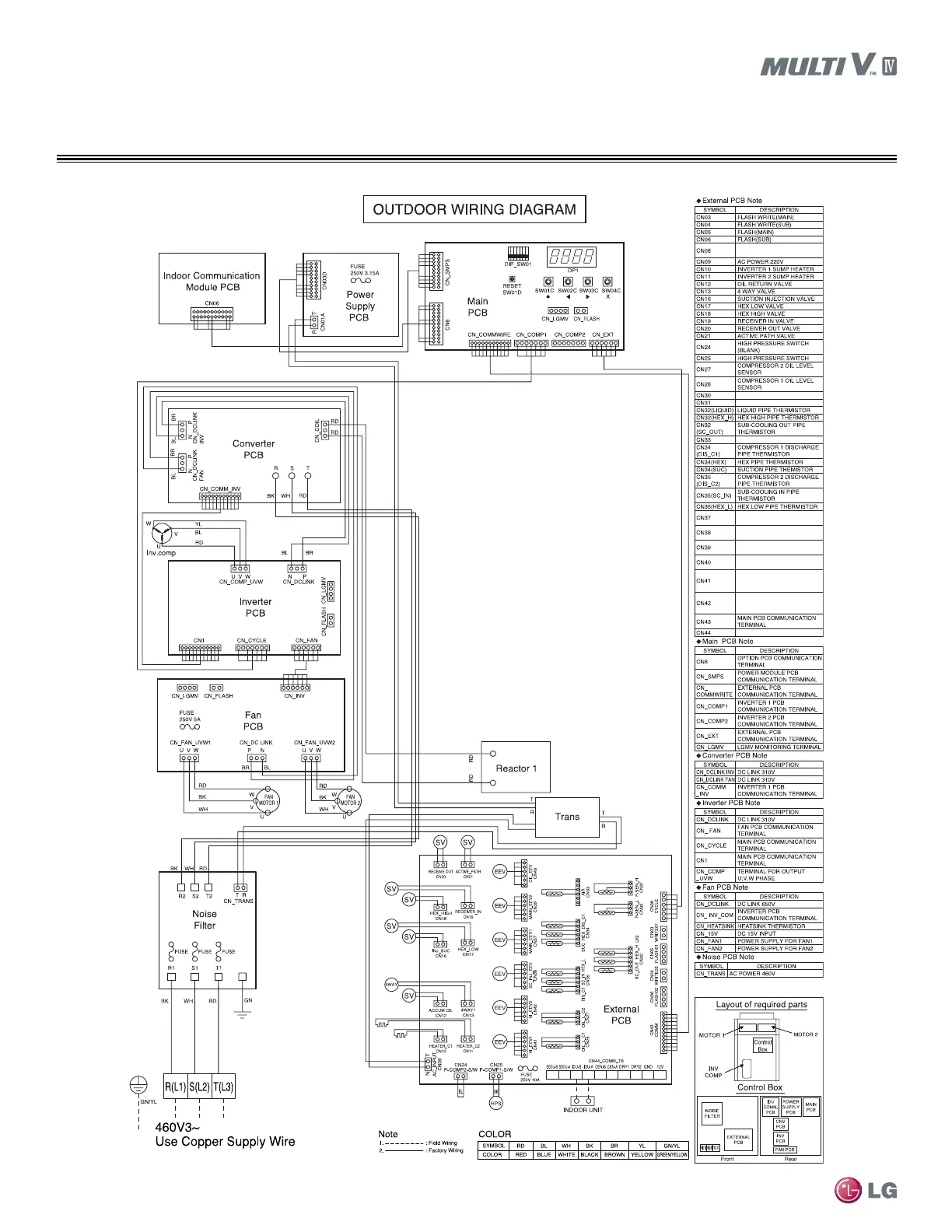

HEAT RECOVERY WIRING DIAGRAMS
ARUB096BTE4, ARUB121BTE4 460V
TERMINAL BLOCK
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 2
VAPOR INJECTION ELECTRONIC
EXPANSION VALVE 1
OIL BALANCE ELECTRONIC
EXPANSION VALVE
MAIN ELECTRONIC EXPANSION
VALV E 2
SUB-COOLING ELECTRONIC
EXPANSION VALVE
MAIN ELECTRONIC EXPANSION
VALV E 1
HIGH PRESSURE SENSOR
LOW PRESSURE SENSOR
MAIN PCB COMMUNICATION
TERMINAL
OUTDOOR AIR THERMISTOR
