Installation
Due to our policy of continuous product innovation, some specications may change without notication.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.

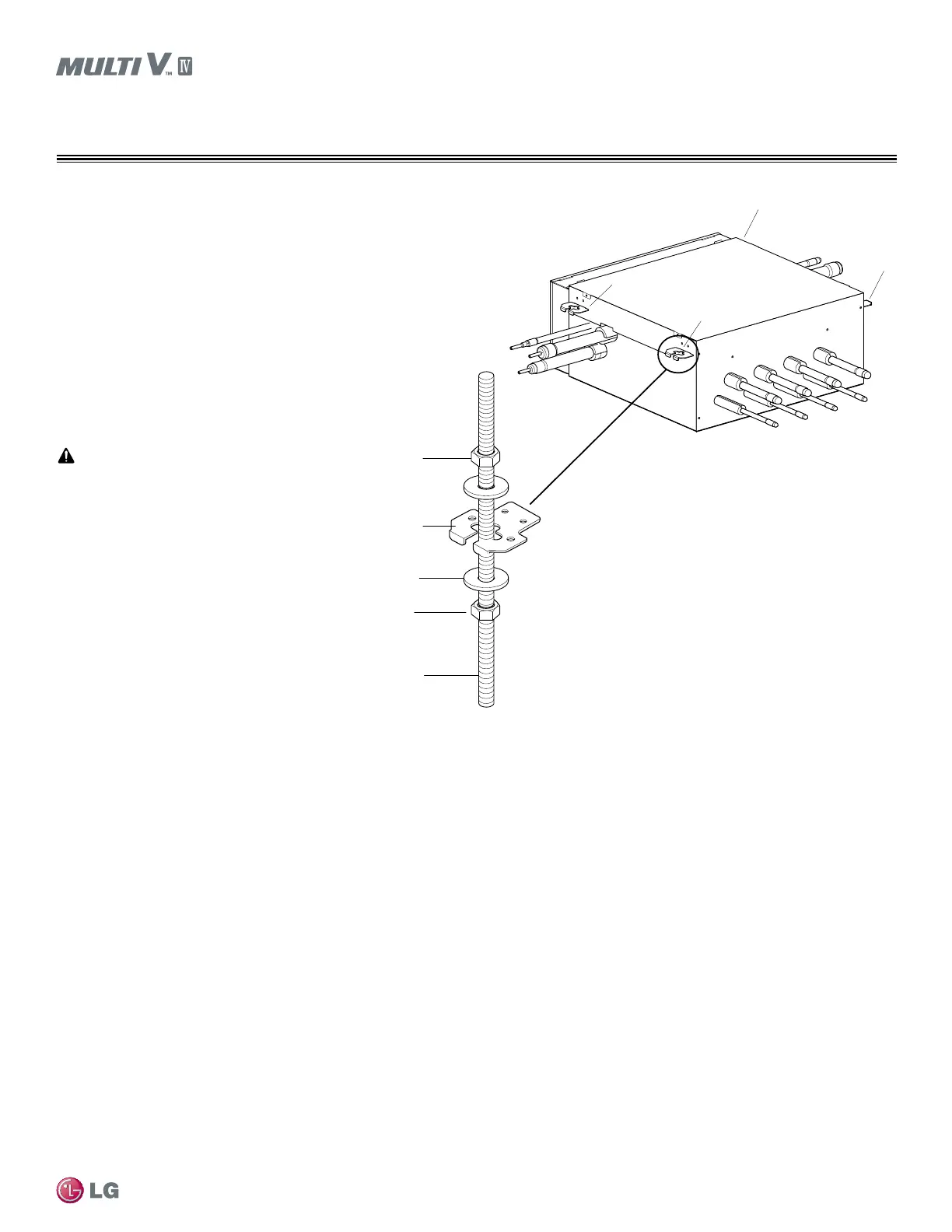

Mounting / Anchoring the Heat Recovery Unit
INSTALLATION
Install the heat recovery unit by suspending it from the ceiling with
the top (see diagram) always facing up.
1. Insert-hole-in-anchor and install the hanging bolt.
2. Thread 3/8 or 5/16 inch hexagon nuts (field-supplied), the metal
hanger tabs, and flat washers (field-supplied) onto the hanging
bolts as shown in the diagram.
3. After verifying that the heat recovery unit is level, tighten the
hexagon nuts.
The heat recovery unit should be
positioned no more than ±5° from
level front to back and left to right.
Hexagon Nut
(3/8" or 5/16")
Hanger met
alMetal Hanger Tab
Flat washeFlat washer (3/8")
Hanging boltHanging bolt
(3/8" or 5/16")
Top
3
1
2
Hexagon Nut
(3/8" or 5/16")
