23
Installation Manual
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
STANDARD WALL-MOUNTED
External Dimensions
SV Frame

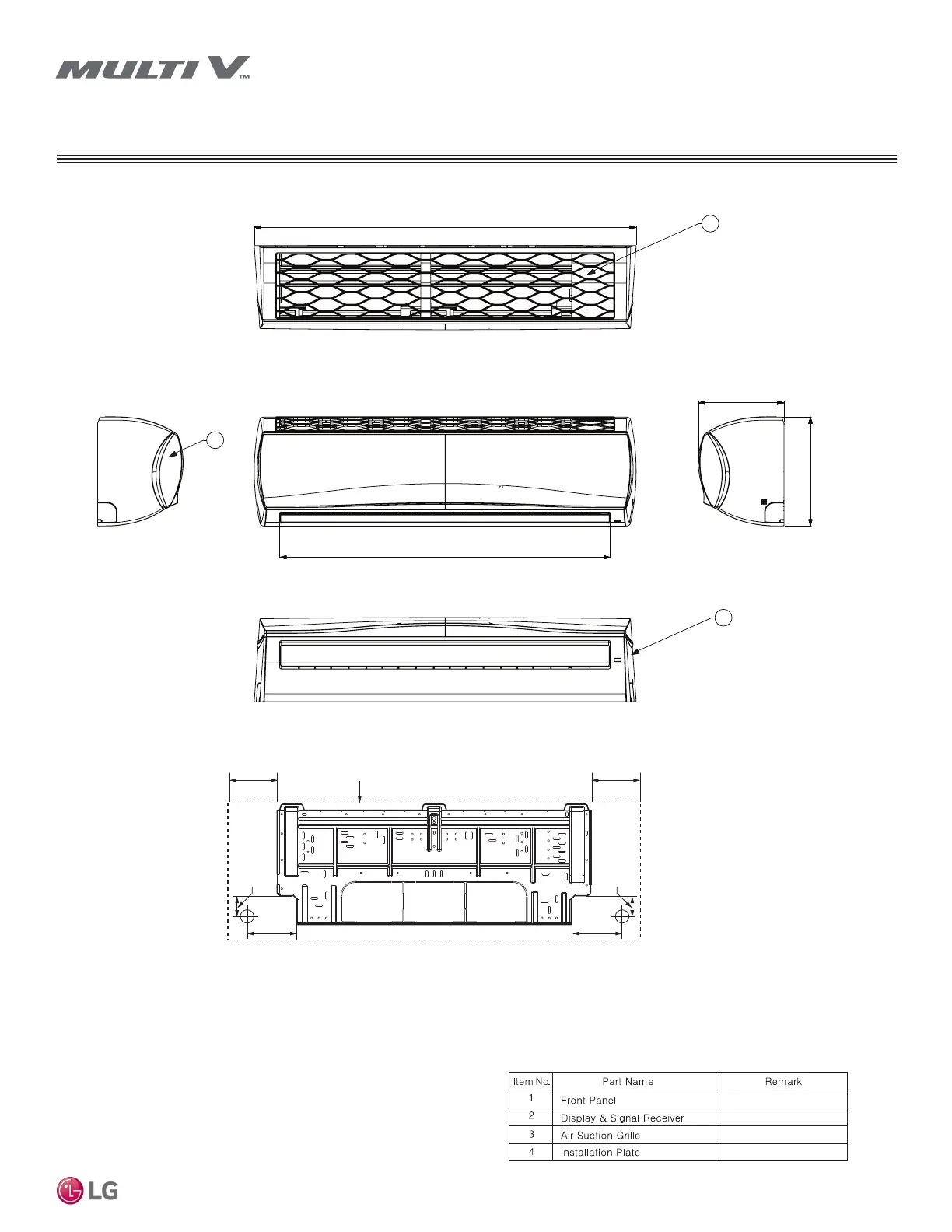

Figure 7: ARNU303SVA4, ARNU363SVA4 Dimensions.
1. Unit must be installed in compliance with the installation manual.
2. Unit must be grounded in accordance with the local regulations or
applicable national codes.
3. The Unit is powered from the outdoor unit. Therefore power cable
should be connected with the outdoor unit.
Note:
3
2
1
Left rear piping Right rear piping
1-11/16
5-1/2
5-29/32
6-9/16
Installation plate
[Unit : inch]
Unit Outline
6-9/16
1-11/16
40-9/16
46-27/32
10-7/16
13-5/8
To Next Page
