Refrigerant Flow Diagram

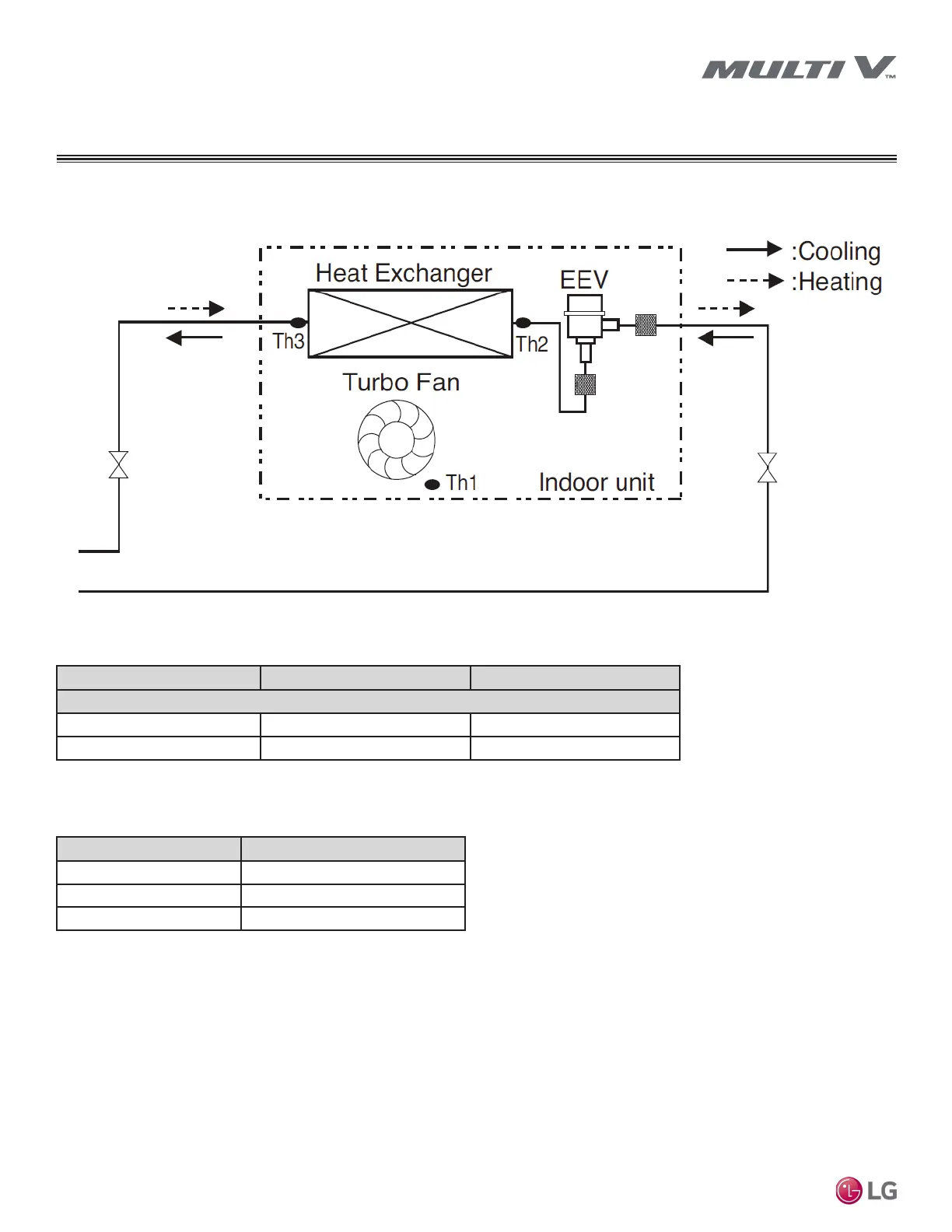

Figure 8: SF Frame Piping Diagram.
Thermistor Description
TH1 Return air thermistor
TH2 Pipe in thermistor
TH3 Pipe out thermistor
Table 9: SF Frame Refrigerant Pipe Connection Port Diameters.
Table 10: SF Frame Thermistors.
SF Frame
Model Liquid (inch) Vapor (inch)
SF Frames
ARNU093SFA4 1/4 Flare 1/2 Flare
ARNU123SFA4 1/4 Flare 1/2 Flare
Strainer
Strainer
