CONTROLS SETUP
Group Control - Method 2
Similar to Ground Control - Method 1, but controls up to 16 indoor units with the MASTER wired remote controller (group control).

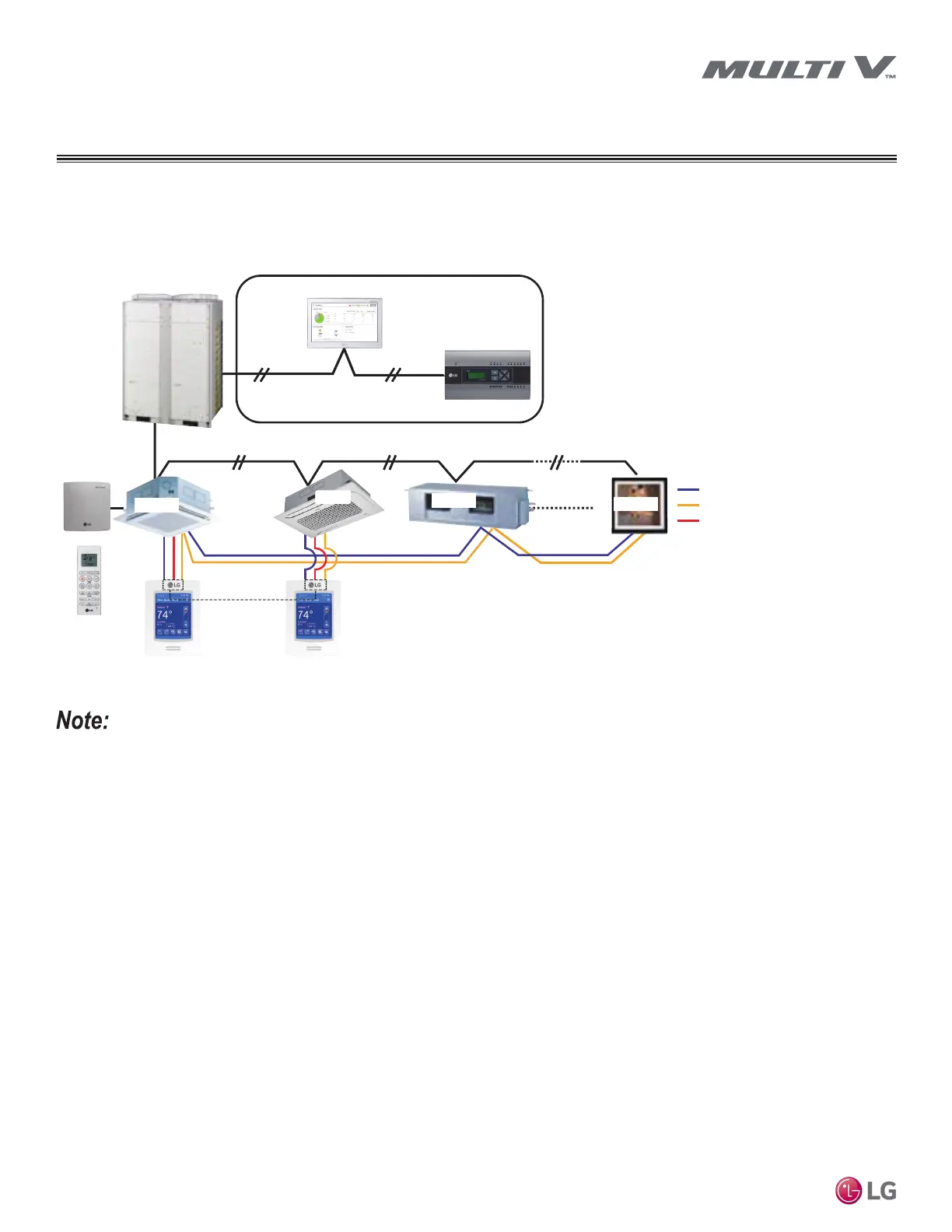

Figure 102: Group Control - Method 2, Two Wired Remote Controllers; One Configured as a Master and the Other as a Slave.
GND
Signal
12 V
Slave
Slave
Donʼt connect serial 12V line
Master
MasterMaster
Display Error Message
Master
Dry Contact
(Option)
Wireless
Handheld
Controller
MultiSITE CRC1 MultiSITE CRC1
ACP 5
AC Smart 5
LGAP Network System
• Indoor Unit appearances may vary according to model.
