Troubleshooting Guide
- 65 -
Copyright ©2008 LG Electronics. Inc. All right reserved.
Only for training and service purposes
LGE Internal Use Only

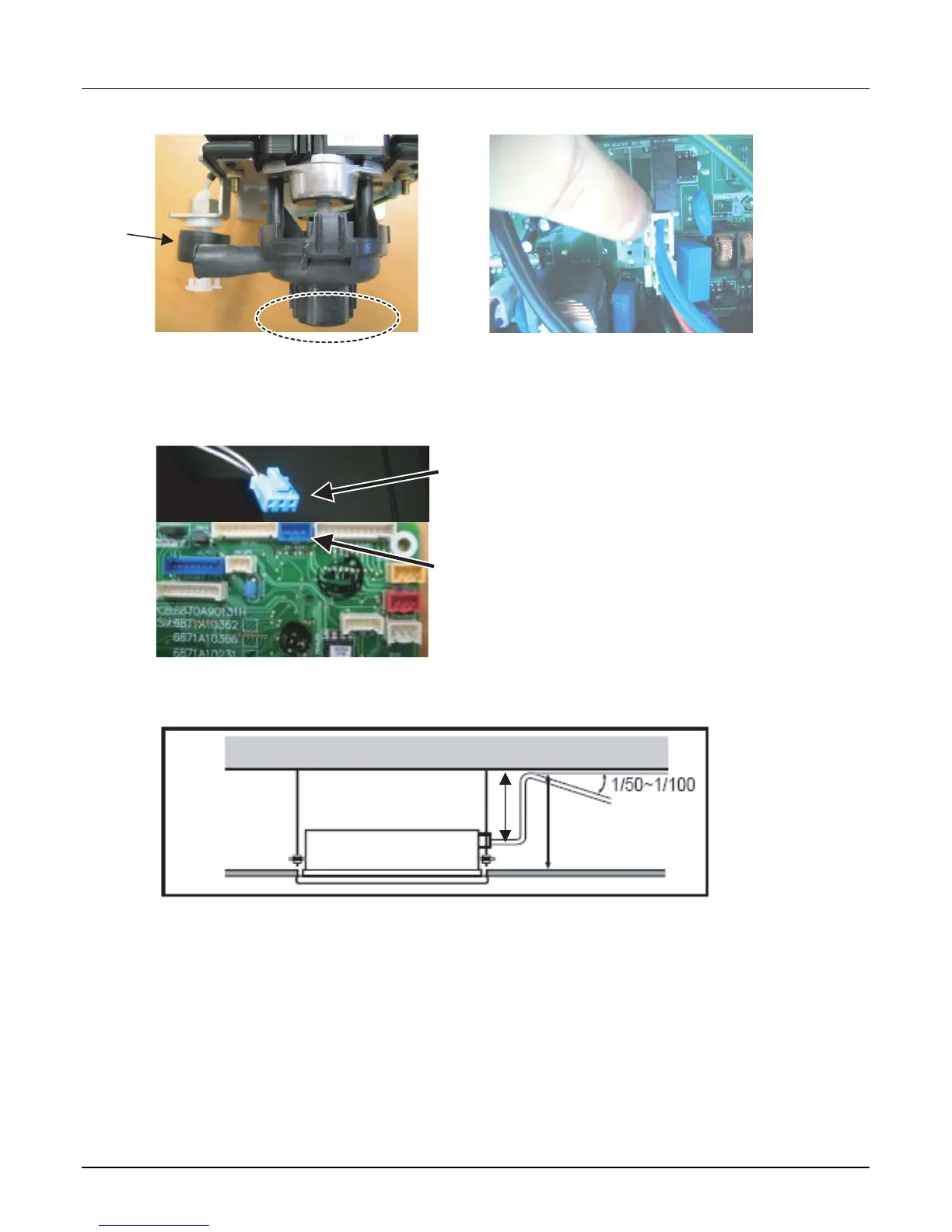

** Indoor PCB drain pump connector
(Check input of 208/230V)
(Marked as CN-DPUMP)
float
A:Point to check rotating
Float switch Housing (CN-FLOAT)
Float switch connector
[***] Standard of drain pipe head height / slope
MAX 18inch
MAX 28inch
To Next Page
