12
MultiSITE CRC 2 Controller
Due to our policy of continuous product innovation, some specifications may change without notification.
©LG Electronics U.S.A., Inc., Englewood Cliffs, NJ. All rights reserved. “LG” is a registered trademark of LG Corp.
BACnet+
BACnet-
BACnet Common
Not used
Not used
Not used
Common
4 5 6
13 14 15
Typical Indoor Unit
Signal
12VDC
YL
RD
BK
CONTROLLER INSTALLATION
Installing the Controller – continued
8. Insert screws in mounting
holes on each side of base.
9. If using field-provided com-
munication cable, strip each
wire 1/4 inch from end.
10. If using Extension Cable
PZCWRC1, carefully cut off
the white Molex connector
and strip each wire 1/4 inch
from end.

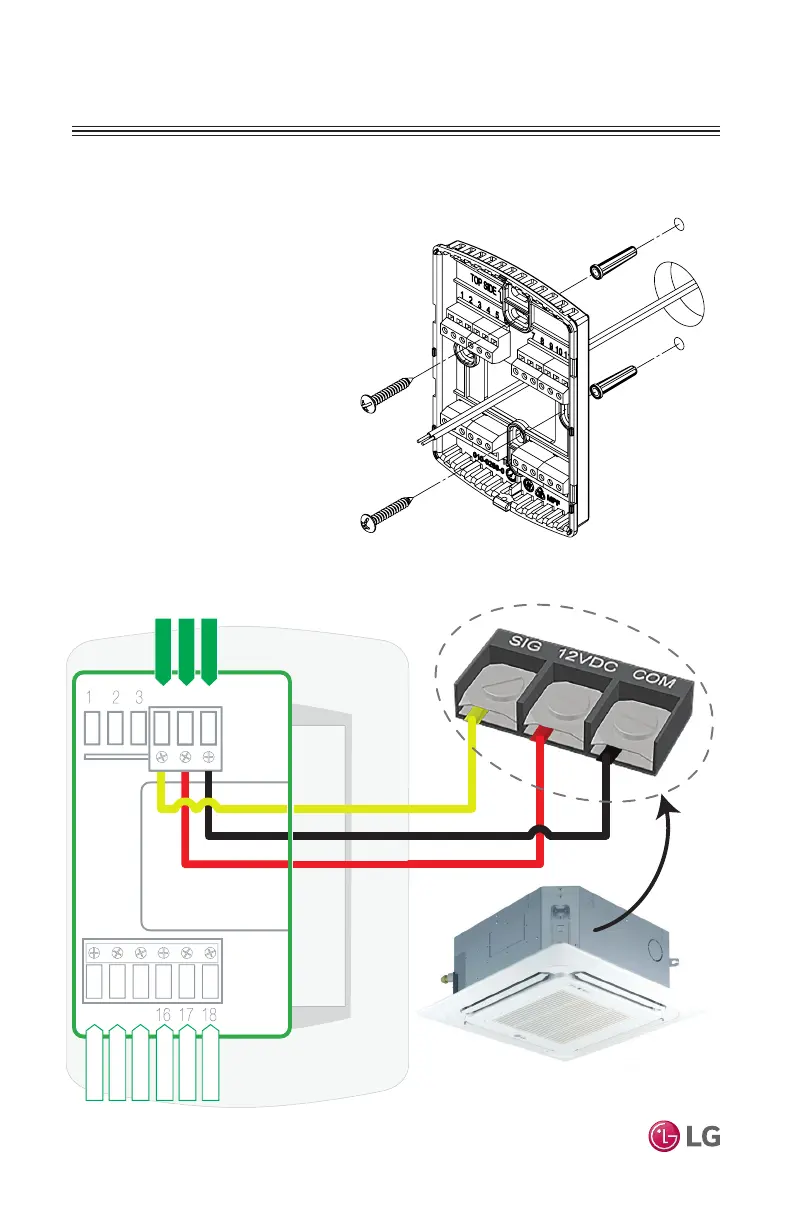

Figure 4: Install Base
Figure 5: Controller Wiring
To Next Page
