Ceiling Motion Sensor (Old Model - ZVRCZCOC1)
Follow this procedure to install the optional
wireless ceiling motion sensor.
Consider the following location constraints before
installing a ceiling mounted sensor:
• Do not install on a metal surface.
• Do not install in areas with a direct heat
source.
• Do not install near any air discharge grill.
• Do not install in areas exposed to direct
sunlight.
• Ensure ceiling surface is at and clean.
• Install in a dry location away from water, moisture, or rain.
Sensor Placement

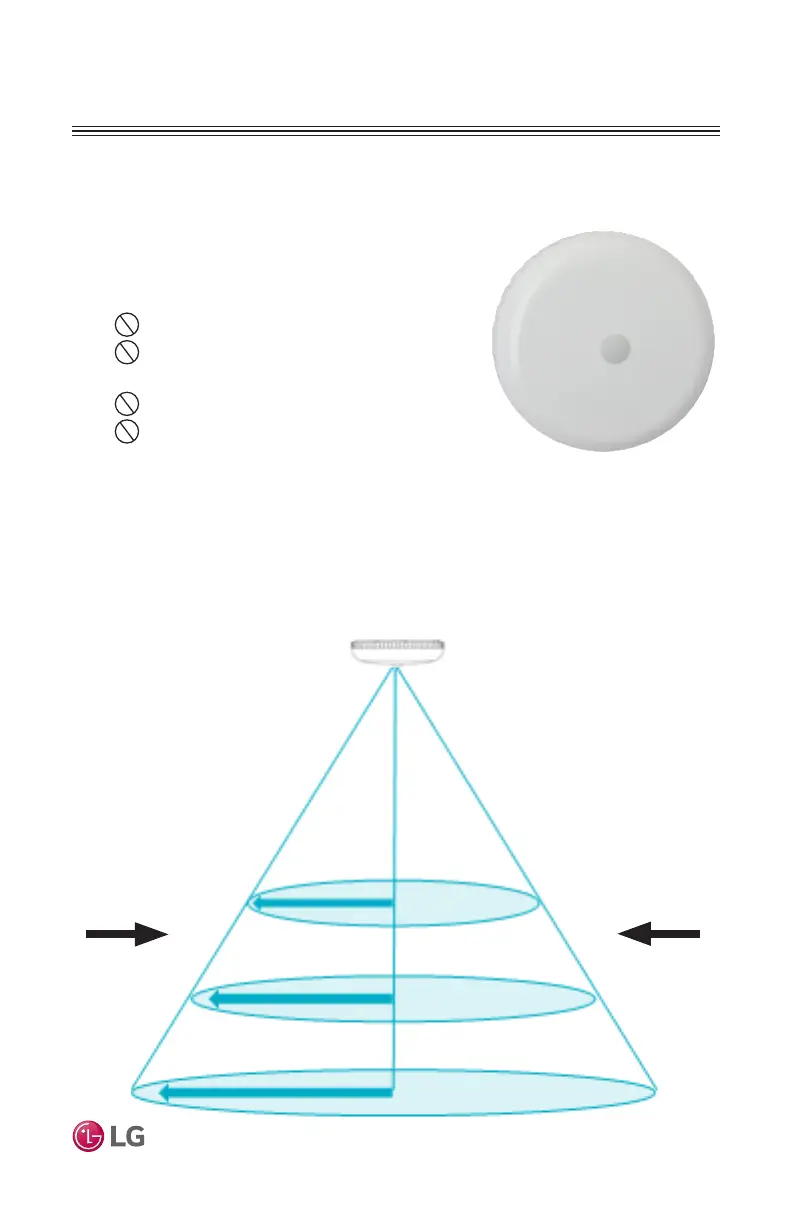

Figure 13 shows suggested placement guidelines to optimize detection zones.
ACCESSORIES INSTALLATION
45 degrees
Coverage
Radius
8 Feet
10 Feet
12 Feet
Ceiling
Height
8 Feet
10 Feet
12 Feet
Figure 12: Ceiling Motion Sensor
Figure 13: Ceiling Sensor Detection Zones
